Home > Products > foundry machinery > Casting molding equipment jolt squeeze molding machine

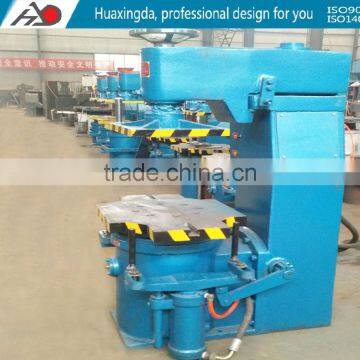

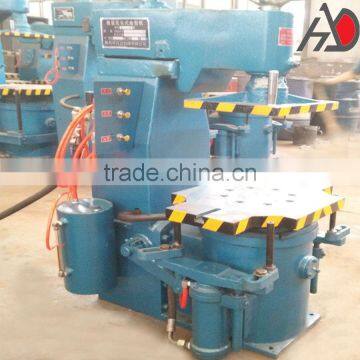

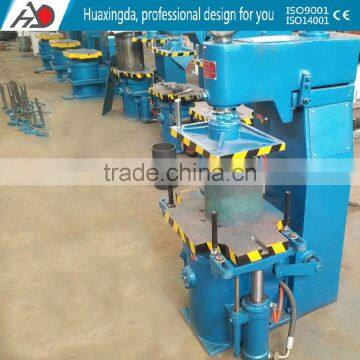

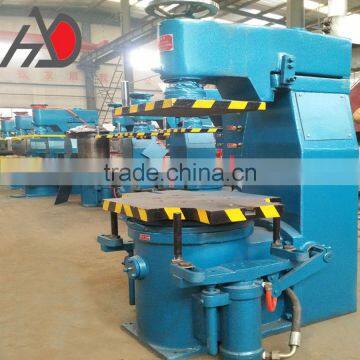

Casting molding equipment jolt squeeze molding machine
- 50 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HXD |
Model Number: | Z144 | Voltage: | 380V /220V/440V | Power(W): | customized |
Dimension(L*W*H): | 820*650*1310mm | Weight: | Customized Dimension | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Casting molding equipment jolt squeeze molding machine
Features:
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness
HB85 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously.
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
Item | Z144 |
Mold size (mm) | 500*400*150 |
Working table size(mm) | 600*420 |
Jolt loading(kgf) | 200 |
Compaction force(kg) | 4100 |
Drawing stroke (mm) | 160 |
Compaction stroke(mm) | 140 |
Productivity (Mold/h) | 40-60 |
Air consumption(Cbm/mold) | 0.25 |
Overall size(mm) | 820*650*1310 |
Total weight(Kg) | 815kg |
1.Professional senior engineers to find the best solution for you;
2.15 years‘ production experience in molding machine;
3.Timely after-sale service ,if any question occurs ,we would reply to you withine 8 working hours .
Any question please kindly contact with us, and welcome to visit our factory in Qingdao China.
