Z9404 Core Shooter
US$ 8,500 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HXD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Vertical Colum Level Part Auto Cover Sand Machine for Casting Foundry/cover Sand Core ShooterUS$ 5,000 - 5,000MOQ: 1 Set -
Automatic Shell Core Machine/skype:sarawang9211US$ 5,000 - 5,000MOQ: 1 Set
-
Core Shooter Machine in Metal Casting Machinery /sand Core Shooting Machine/+15224414081US$ 5,000 - 5,000MOQ: 1 Set
-
Foundry Level Parting Core Shooter Machine /casting Sand Core Shooter /skype:sarawang9211US$ 5,000 - 5,000MOQ: 1 Set
-
Automatic Core Shooting MachineUS$ 5,000 - 5,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HXD
Model Number
ZH9406
Voltage
380V
Power(W)
15KW
Dimension(L*W*H)
2250x2160x1560mm
Weight
1750kg
Certification
CE,ISO
Warranty
1 year
After-sales Service Provided
Overseas service center available

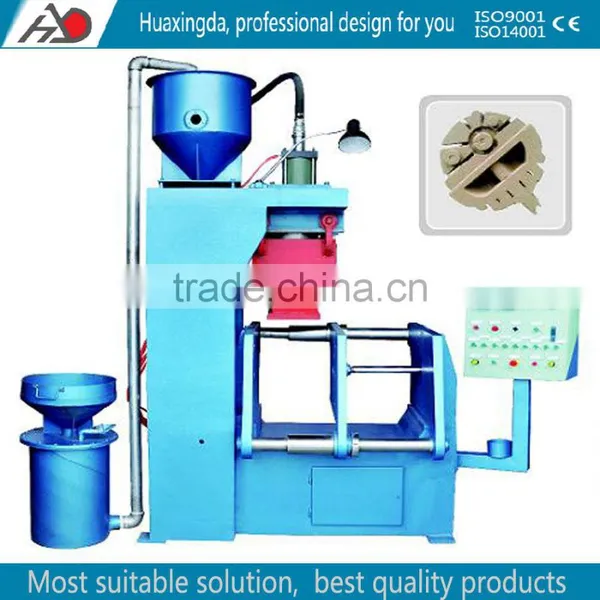

ZH94 series core shooter(cold and heat)
Technical characteristics:
PLC programmable control
Adjustable about the technical parameters
Molding temperature automatic control
Technical parameters:
Type |
ZH9406 |
ZH9407 |
ZH9408 |
Moulding board maximum size(mm) |
780X400 |
780x400 |
780x400 |
Cover die thick(mm) |
200 |
200 |
180 |
Movable mould minimum thick (mm) |
150 |
150 |
150 |
The number to install the core box |
1 |
1 |
2 |
Mould assembly process(mm) |
400 |
400 |
400 |
Maximum sand core weight(kg) |
20 |
25 |
30 |
Sand hopper capacity(kg) |
200 |
200 |
200 |
Heating way |
Electric heating/triethylamine |
Electric heating/triethylamine |
Electric heating/triethylamine |
Electric heating power |
35(kw) |
35 |
45 |
System pressure |
0.58 Mpa |
0.58 |
0.58 |
Operation mode |
Semi-automatic/Automatic |
Semi-automatic/Automatic |
Semi-automatic/Automatic |
