Rapeseed oil press machine for good price

Rapeseed oil press machine for good price
Related name: Oil Pressing Machine , Spiral Oil press ,Screw presses
Product Introduction of Grape seed oil press machine

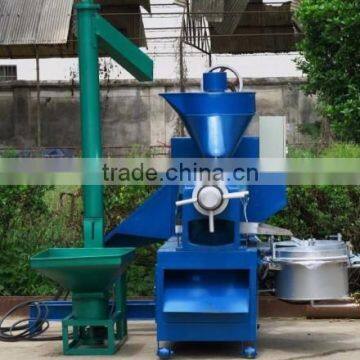

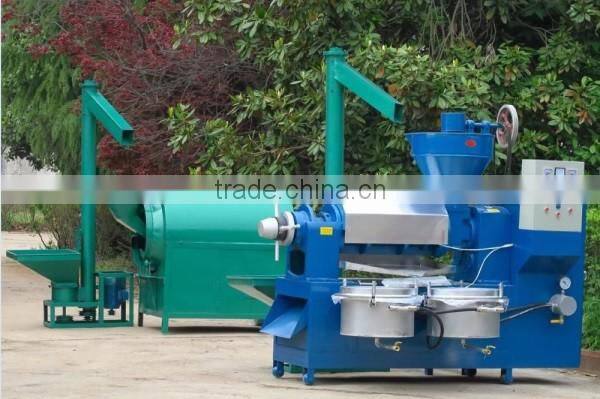

 6YL-80 semi-automatic Stainless Steel oil presser is advanced black seed oil machine, characterized by simple design,
easy to operate, high production capacity and high oil output rate. Moreover, this kind of machine can be used for various raw materials, and depending on the oil content of particular crop you are pressing, the machine will extract about 90%-95% oil of it.

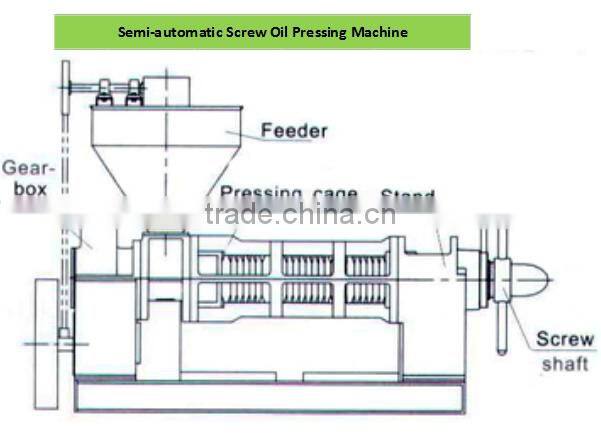

A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.

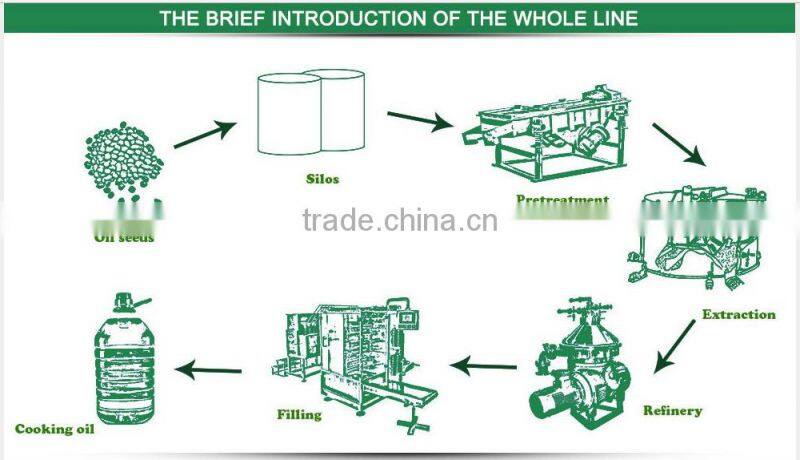

Process Flow Chart of Rape seeds oil press machine

1. Cleaning--> 2. Husking--> 3. Drying--> 4. Crushing --> 5. Softening -- > 6. Flaking -->
7. Puffing --> 8. Cooking --> 9. Pressing

Applications of Rapeseed oil press machine

   Screw-presses are used for two different tasks.One is to obtain the maximum oil yield from a suitably prepared seed.This is achieved by a single pressing through the screw-press at high pressure.There is no further oil extraction operation.

  The other task of the screw-press is to "pre-press" the seed,generally of high oil content,to abtain a cake of more moderate oil content.This cake is then further processed,usually is a continuous solvent extraction plant,to recover most os the remaining oil.

Processing Scope of Rapeseed oil press machine

 It can be used to press oil from Peanut, Coleseed , Cottonseed, Sunflower Seed,Soya bean,cocoa nut, ,argan,sesame,black cumin,almond ,pomegranate seeds,Palm Kernal and other oil-seed material.
Advice for Customer of Rapeseed oil press machine

Through the semi-automatic oil press machine, you can get the crude oil as final products. And through the full-automatic oil press machine, you can get the edible refined oil as final products.You can choose the proper one according to the oil requirements

Main Features of Grape seed oil press machine

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

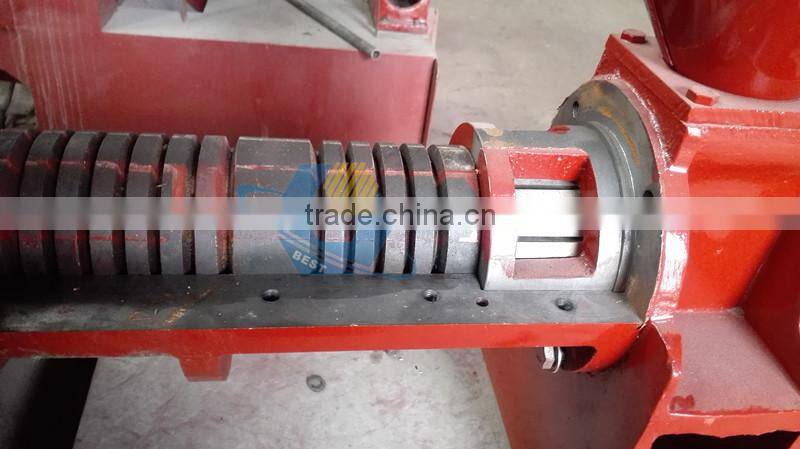

Name: Worm assembly and barrel bars

Brand: Beiside

Original: China

A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.

Main Features

Name: barrel bars
Brand: Beiside
Original: China
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.

Machine Parts

Name: Feeding Cylinder  for Hydraullic Oil Presser
Brand: Beiside
Original: China
The design of the press must allow for this change of volume,and the friction betweent the cake and the cage must be maintained high enough to prevent the cake from rotating.The cake is expelled from the press through a choke gear,an adjustable cone forming an annular opening of variable size.

Main Features

Name: Spare parts--

Pressing plate and Mut for  Hydraulic Presser
Brand: Beiside
Original: China
The choke gear can regulate the resistance of the cake to the movement of the screw,and the pressure exercised on the cake.To maintain this pressure essential for expelling the oil,a positive feed system is required.

The feed system is frequently a worm conveyor,either vertical or horizontal,that presses the oil-seed into the screw-press at the feed-end.
