palm kernel crushing machine for palm oil processing plant factory malaysia
- 1000 Unit / Units per Month
- Qingdao/ Tianjin / Shanghai
- T/T Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, Corn Germ Oil | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 98% | Place of Origin: | Henan, China |
Brand Name: | Beiside | Model Number: | 5TPD Palm kernel Oil Plant | Voltage: | 220V/380V |
Power(W): | 7.5kw | Dimension(L*W*H): | 2050*1350*2000mm | Weight: | 1100kg |
Certification: | CE ,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

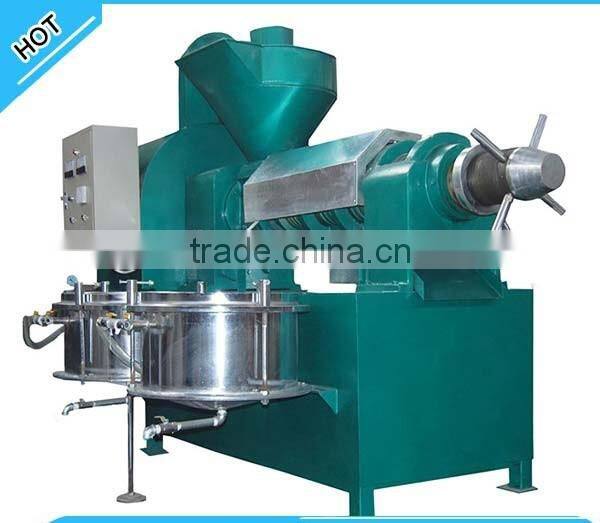

Palm kernel oil crushing machine for palm oil processing plant factory malaysia
It adopts micro-electrical control,infrared heating,filter system,muti-stage press and could press both hot seed and cold seed.The final oil Product is pure clean oil after filtering,could be directly used. The machine is the most ideal equipment for individual processing plant.
Product Introduction of Palm kernel oil crushing machine
6YL-120RL Automatic oil presser is advanced black seed oil machine, characterized by simple design,
easy to operate, high production capacity and high oil output rate. Moreover, this kind of machine can be used for various raw materials, and depending on the oil content of particular crop you are pressing, the machine will extract about 90%-95% oil of it.
A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.
Applications of Palm Kernel oil press
Screw-presses are used for two different tasks.One is to obtain the maximum oil yield from a suitably prepared seed.This is achieved by a single pressing through the screw-press at high pressure.There is no further oil extraction operation.
The other task of the screw-press is to "pre-press" the seed,generally of high oil content,to abtain a cake of more moderate oil content.This cake is then further processed,usually is a continuous solvent extraction plant,to recover most os the remaining oil.
Press Scope of Palm Kernel oil press
It can be used to squeeze oil from many kinds of oil-seeds,such as Peanut / Groundnut, Coleseed /Rapeseed, Cottonseed, Sunflower Seed,Soya bean,cocoa nut, ,argan,sesame,black cumin,almond ,pomegranate seeds,Palm Kernal ,prickly ash seed, chilli seed, corn germ,jatropha seed,and other oil-seed material.
Advice for Customer:
Through the semi-automatic oil press machine, you can get the crude oil as final products. And through the full-automatic oil press machine, you can get the edible refined oil as final products.You can choose the proper one according to the oil requirements

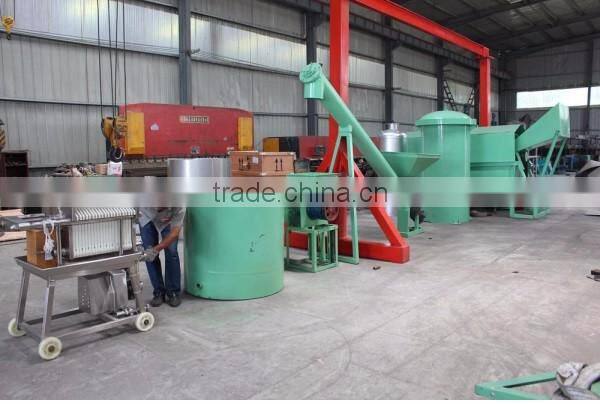

Palm kernel Oil production line include:
Oil Pre-treatment and Prepressing equipment, Oil Extraction equipment,
and Oil Refining equipment.

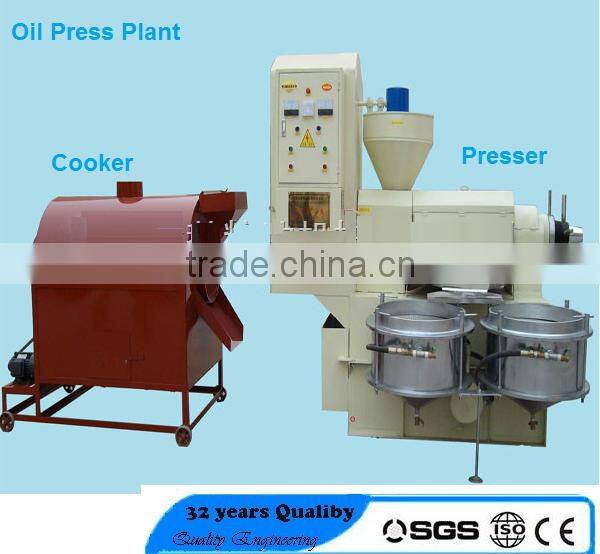

Automatic Screwing Oil Press Set

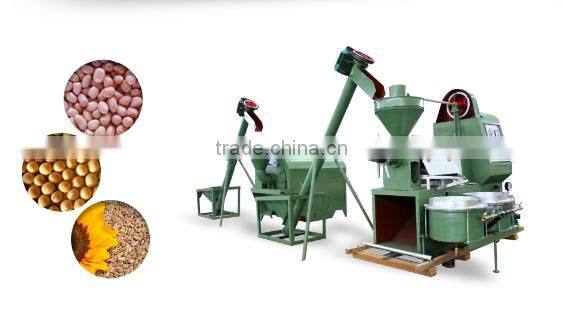

In order to increase the oil recovery,we usually advice customer to adopt hot pressing,mainly include a Cooker ,a Spiral conveyor and a Automatic Screw Oil Presser.This is very efficient for small scale oil plant.
Main Features pf Palm Kernel Screw Oil Press
1. Energy Saving: The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour.
2. Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production.
3. Widely Usage: The machine is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure: Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
Machine Parts
Name: Worm assembly and barrel bars
Brand: Beiside
Original: China
A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
Main Features

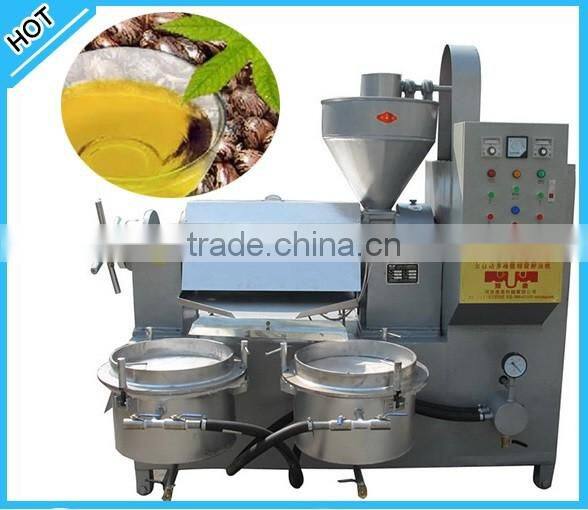

Name: Screw Oil press
Brand: Beiside
Original: China
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.

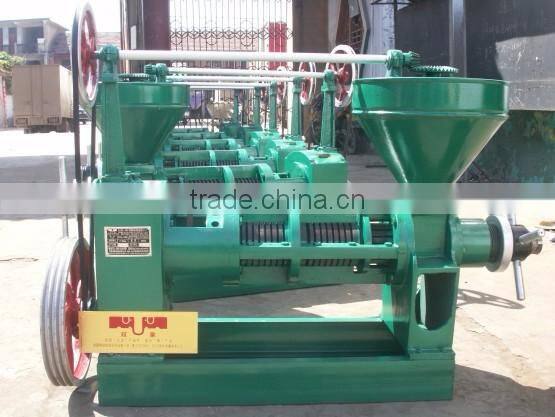

Machine Parts
Name: Screw Oil Presser
Brand: Beiside
Original: China
The design of the press must allow for this change of volume,and the friction betweent the cake and the cage must be maintained high enough to prevent the cake from rotating.The cake is expelled from the press through a choke gear,an adjustable cone forming an annular opening of variable size.
Main Features
Name: Spiral OIl Presser
Brand: Beiside
Original: China
The choke gear can regulate the resistance of the cake to the movement of the screw,and the pressure exercised on the cake.To maintain this pressure essential for expelling the oil,a positive feed system is required.
The feed system is frequently a worm conveyor,either vertical or horizontal,that presses the oil-seed into the screw-press at the feed-end.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

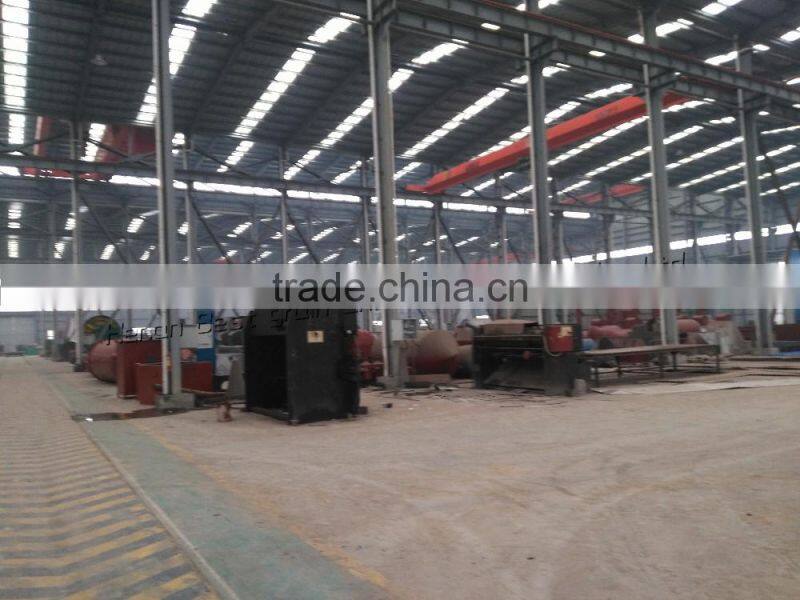

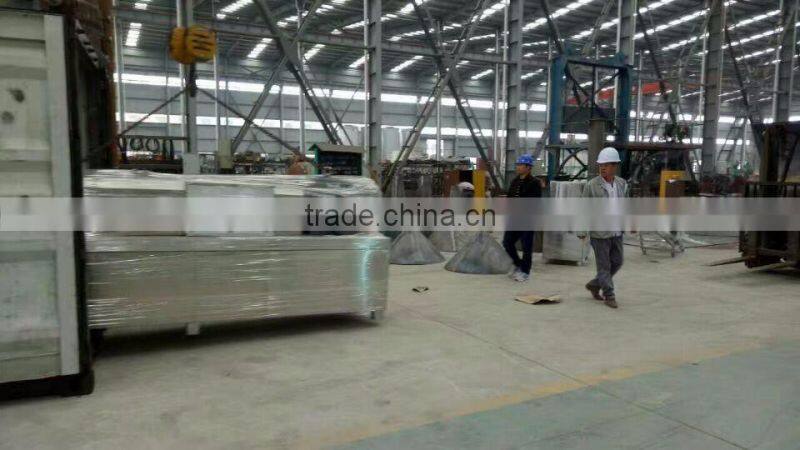

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
