Commercial Flour Sifter Electric Sieve Industrial Flour Mill Sieve Mini Automatic Flour Milling Machine

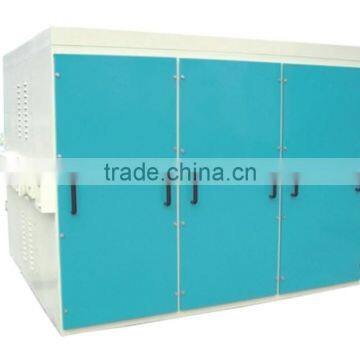

Commercial Flour Sifter Electric Sieve Industrial Flour Mill Sieve Mini Automatic Flour Milling Machine photo-1
Commercial Flour Sifter Electric Sieve Industrial Flour Mill Sieve Mini Automatic Flour Milling Machine photo-2
Commercial Flour Sifter Electric Sieve Industrial Flour Mill Sieve Mini Automatic Flour Milling Machine photo-3
US$ 900 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
None
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name None

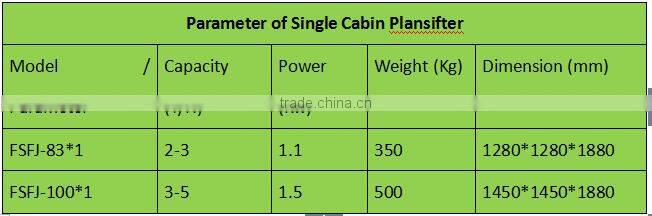

Model Number FSFJ-100*1
Production Capacity 100%
Voltage 220V/380V
Power(W) 1.5kw
Weight 500kg
Dimension(L*W*H) 1450*1450*1880mm
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

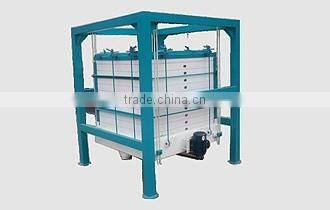

Name:  Wheat Flour Single Bin Plansifter

industrial flour sieve Mini Flour Sifter Automatic flour mill sieve,
commercial flour sifter electric sieve flour mill sifter,
flour vibrating screen
Application:
Single Cabin Plansifter is used to sift and grade powdery material, is wildely applied to maize processing plant, fodder plant, alcohol plant. It is featured of low power consumption, high production, and good sealing without flying powder .
Brief Introduction:
The plansifter is machine consisting of a vertical nest of horizontal sieve,the whole assembly gyrating in a horizontal plane.The mixture to be sieved is fed in at the top and falls from sieve by gravity.A single plansifter incorporate sieves of 4-5 different mesh sizes,thereby delivering 5-6 fractions of different particle sizes. A certain depth of stock on the sieving cloth is required to obtain a satisfactory sieving effect.Owing to the movement of the sieve,the stock resting on it becomes stratified;the finest particles work down until they are adjacent to the cloth,while the largest ride up to the surface of the stock.The overlying layers of medium and coarse particles thus tend to keep the finest particles in contact with the sieve cloth and assist their passage through the sieve apertures.
Working Principle:
The machine is driven through a bevel gear box which can be turned into any of four positions, so that an open belt drive may be taken from a line shaft either parallel to the longitudinal axis of the plansifter or at right angles to it.The gearbox incorporates a spherical driving member which allows the driving shaft to swing freely and slide up and down while the plansifter is wandering during starting or stopping.

Main Features

1)more automated processes make the flour mill possible to reduce labor intensity;
2) utilization of compressed air to transport grain via sealed pipes, thus preventing the flour from dispersing into the work environment;
3) lower temperature of the finished product due to a more efficient process, thereby greatly improving the flour's quality.


Certifications
Detailed Images

Main Machine 1

Name:Horizon Bran Finisher

Brand: BEST

Original: CHINA

Horizon Bran Finisher is specially used to scrape endosperm from the bran with out undue production of fine stock,and to reduce oversize semolina during the milling process,then could increase the flour yield and lower the flour ratio of bran.

Main Machine 2

Name: Wheat Flour Purifier
Brand: BEST
Original: China

Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.

Main Machine 3

Name: Pneumatic Double Roller Mill
Brand: Best
Original: China
Pneumatic Double Roller Mill is the main device for flour milling plant (wheat,corn,bean,etc.).The operating of the feeding roller and cluth could be controlled Pneumatically,the configures adjust according to different grinding characters.

The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

Main Machine 4

Name: Small Scale Stone Roller Mill
Brand: BEST
Original: China
 Nowadays,Stone Mill is widely used in wheat flour milling production for pure natural flour(wheat,rice,corn,etc.). Comparing with large steel mill,Stone Mill could make flour with much higher nutrition value.

The grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Proposal support.

*Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine .

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping & Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
