50-150 TPD wheat flour plant
flour mill roller,
wheat milling factory,
wheat milling equipment,
flour mill production line,
Brief Introduction:

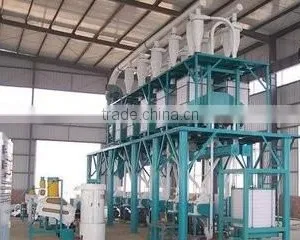

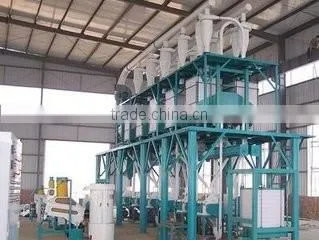

This 50-150 TPD wheat flour plant is steel constructed flour milling equipment of vertical structure. The sifters are located at the top of the plant, allowing the stock to pass downward through the sifters with the use of gravity rather than exclusively with the use of a pneumatic device. This decreases the power consumption and simplifies the wheat milling process. To increase the capacity for extraction, we also have developed several bearing mills, patented aluminum sifter screens and steel support frames.Many advantages are conferred by the steel construction of vertical structure: compact structure, convenient installation and operation, low costs and high efficiency.

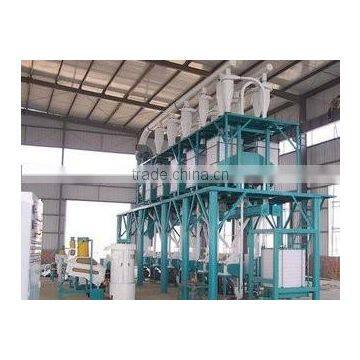

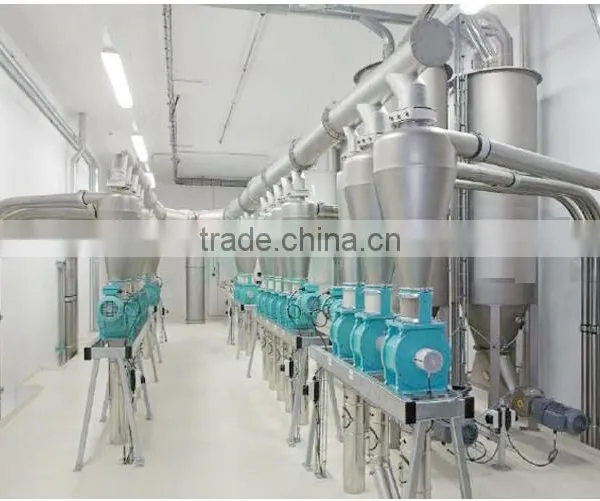

In the steel-constructed series of complete sets of wheat flour plant, the flour milling equipment is assembled in vertical structure. The flour mill, flour receiver and bran receiver are located on the first floor; the high-plane sifter and blower on the second floor; and the air seal and cyclone on the third floor. This wheat flour plant has a compact structure, easy to install and operate, and requires a minimal investment.
Process introduction:
(Take 100T/D production line for example)
Wheat Cleaning Process mainly Include: 3 sieves, 2 scourers, 2 De-stoners, 1 foreign seed extractor, 3 magnetic metal separator, and 1 dampener.
Cleaning process include :
sieve, roto-sifter, wheat scourer, wheat brushers, gravity stoners, Destoners, auto dampener, dust collecter etc.
3 Sieves: to remove the impurities from the wheat,and classify wheat before milling.
2 Scourers: It could not only smash and remove the wheat grain which is poor strength or disease metamorphic,but also could remove the clod on the wheat surface ,the dirt and impurities attached on the wheat groove.
1 foreign Grain extractor: to remove the different grain from the wheat grain
Flour milling process include:
4 Break mills, 2 Reduction mills,2 Scratch mills,4 plansifters process,4 Purifiers,3 Bran Finishers
electronically flour mill, high plane sifter, Flour purifiers, bran finishers,
vibrating circular screen, bran brush, pulse jet filter, auto bran packing machine ,etc.

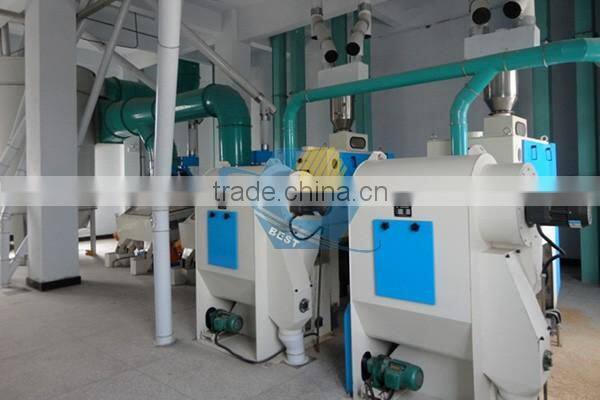

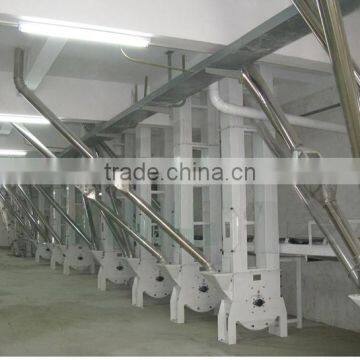

Main Machine 1
Name: Flour Mills
Brand: BEST
Original: CHINA
Applied to the grinding of the most cereal grains,particularly those grains having a crease,is done with a roller mill.The roller mill system lends itself to a gradual reduction process.

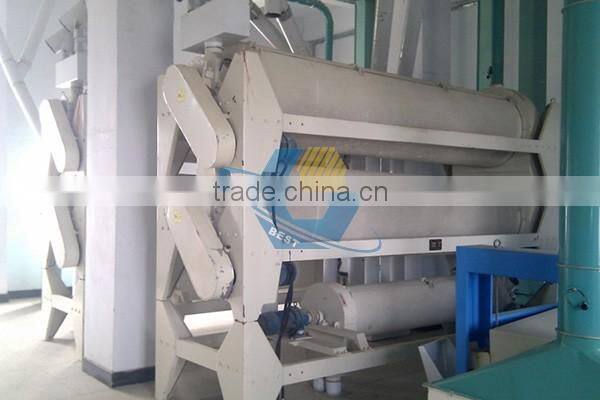

Main Machine 2
Name: Flour Purifier
Brand: BEST
Original: China
Flour Purifier Machine is used to separate the mixtures of bran and endosperm particles,according to their terminal velocity,by means of air currents. Also could remove Bran slag, coarse core,powder material from the flour,in order to get highly refined flour with low ash content.
Main Machine 3
Name: Combined Cleaning Machine
Brand: Best
Original: China
This device combined crushing,rubbing,gravity stoner,auto-sieving,scouring,dampening all processes in one.
Features: Automatically wind feeding,compact structure small area occupation,good cleaning effect, low noise and power consumption,stable operating,a good mate for many kinds of milling machines.

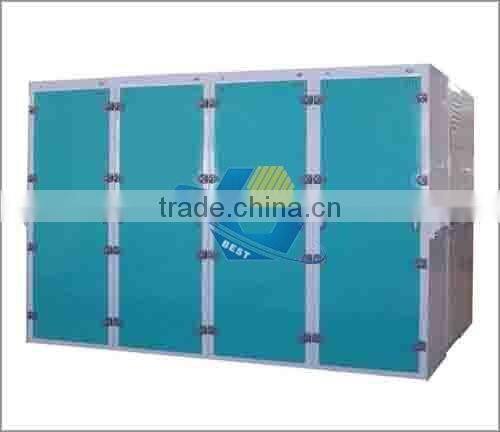

Main Machine 4
Name: High Square Plansiter
Brand: BEST
Original: China
High Square Plansifer is used to sift and grade various powdery material,is a very ideal sifter device for maize processing plant, fodder plant, alcohol plant. It is featured of low power consumption, high production, and good sealing without flying powder .
Pre-Sales Service
* Inquiry and consulting support.
* Proposal support.
*Visit our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine .
* Engineers available to service machinery overseas.
