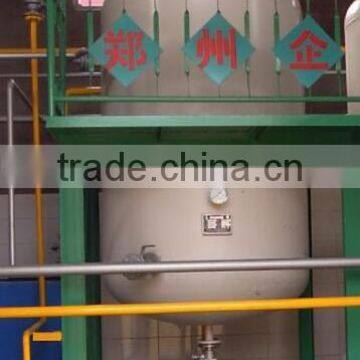

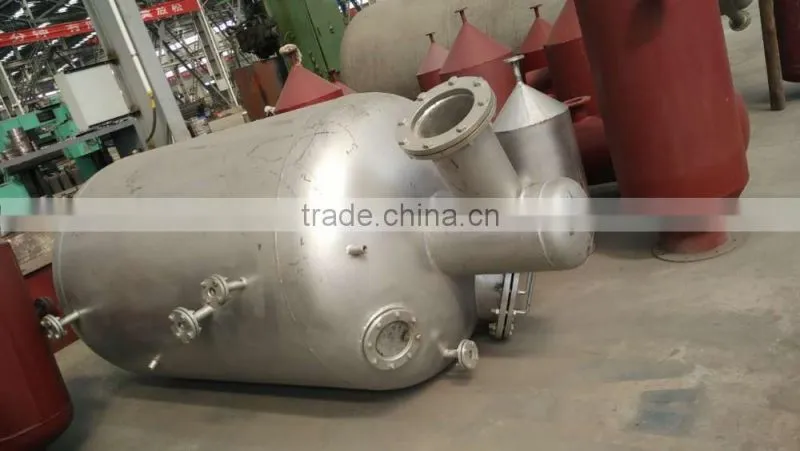

vegetable oil deodorization system for palm or palm kenel oil deodorizer
The bleached oil is drawn into deodorizin pot by vacuum pump, and begin to take distillation and reckon by time when vacuum degree reached above 755mmHg;
1. Deodorization time: 4 hours
2. Deodorization temperature: 240℃/755mmHg
260℃/759mmHg
3. Vacuum degree of deodorization: above 755mmHg
4. Whole deodorizing timing process technology: vapor distillation method.

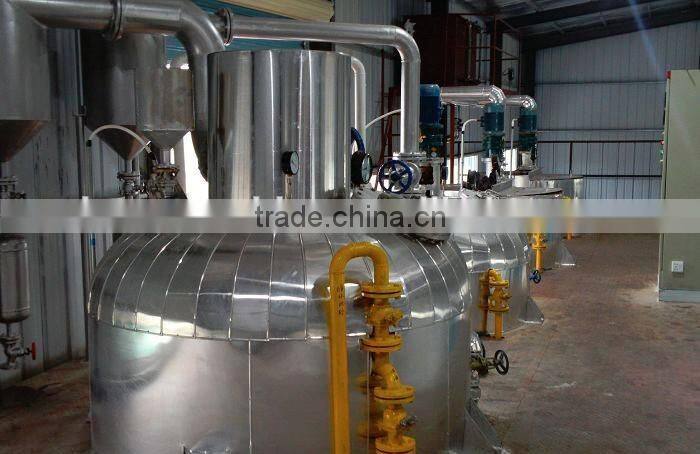

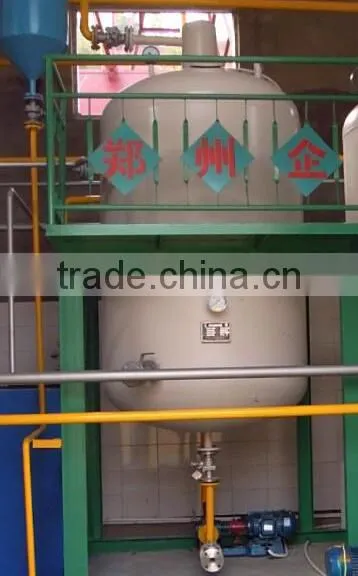

bleached refining pot
the vibration oil filter:
a. Palm fruit reception:Transport FFB to reception station, flow to the scraper conveyer, conveyed to sterilizing station.
b. Sterilizaiton: FFB transported by scraper conveyer fall into sterilizing tank, make FFB soft,get more oil yield. sterilizing time 90~120mins, temperature 130~145°C
c.Threshing: After sterilizing, fruit bunch transported to thresh machine, separate palm fruit and empty fruit bunch.
d:Digesting: Before press palm fruit, should be crushed separated pulp and kernel
e.Oil press: After crushing and digesting, the maxture of palm fruit and kernel fall into special palm oil presser
f.Clarification:Filter the oil and use centrifuge to separate oil and impurities.
g. Kernel recovery:After press, the kernel and cake will be transported to kernel recovery station. Separating nut and shell, then go to kernel oil press.
h.Palm kernel oil filteration: Use vibrating filter to filter the oil to remove impurities in it.
palm oil production line,palm oil refining process

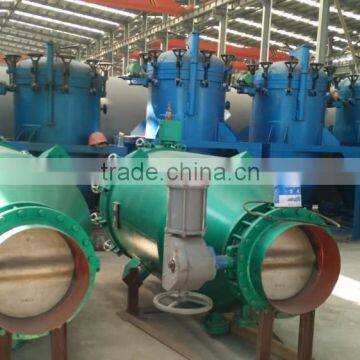

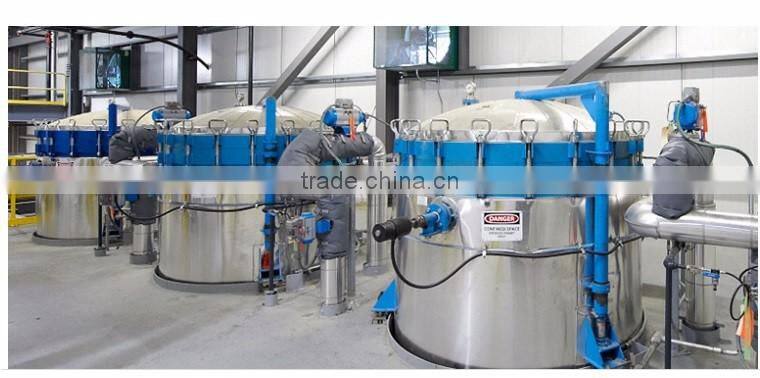

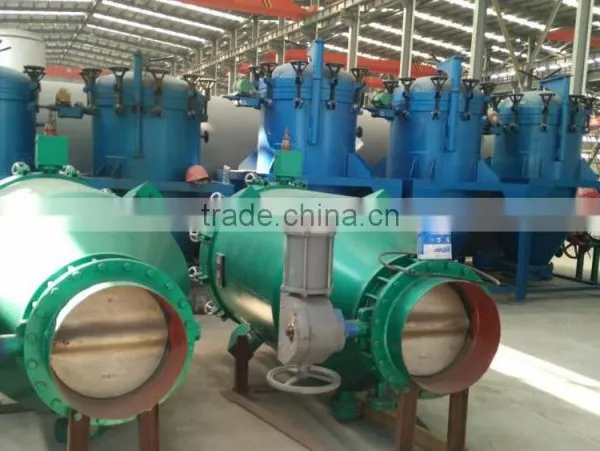

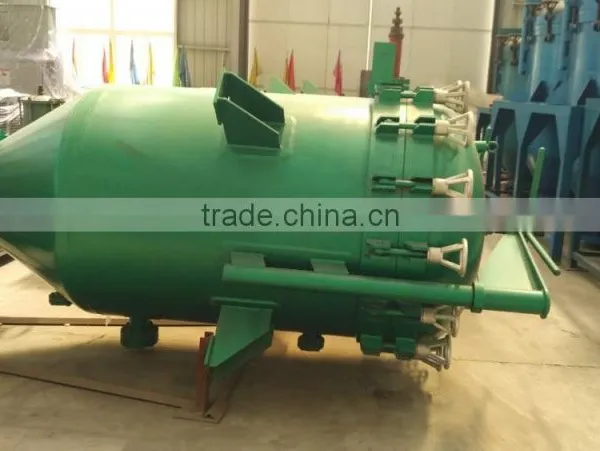

leaf filter for bleaching refining use.
The specification of crude palm oil
Item | Standard |
Smell and taste | The original smell and taste of crude oil |
Moisture and volatile matter (%) ≤ | 0.20 |
Insoluble impurities (%) ≤ | 0.20 |
Acid value (mgKOH/g) ≤ | 4.0 |
Peroxide value (mmol/kg) ≤ | 7.5 |

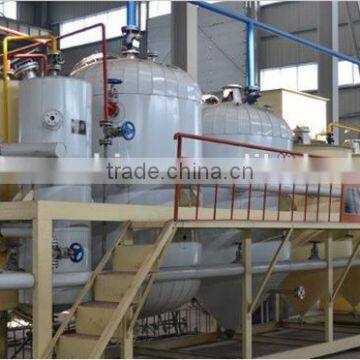

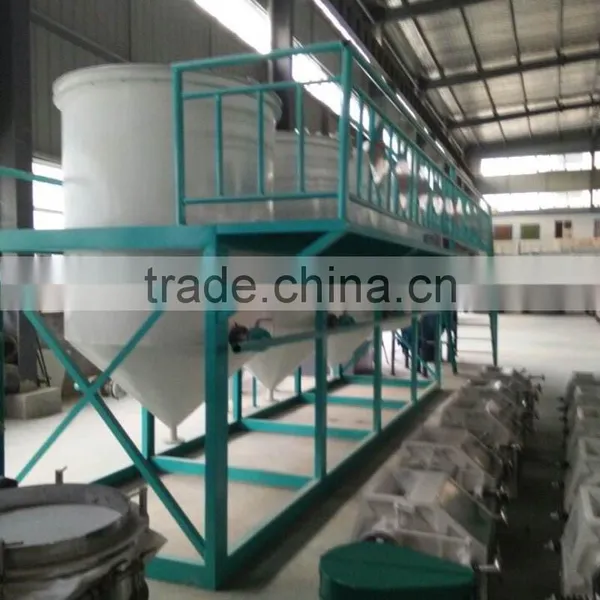

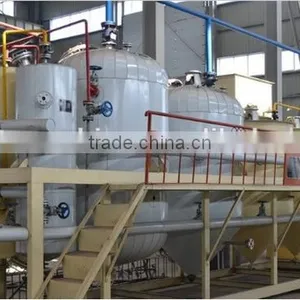

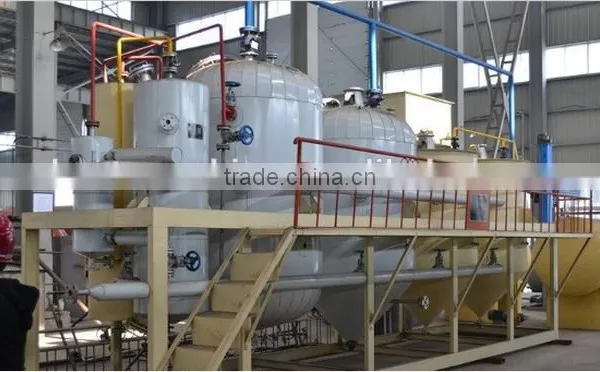

palm oil refine project
(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.

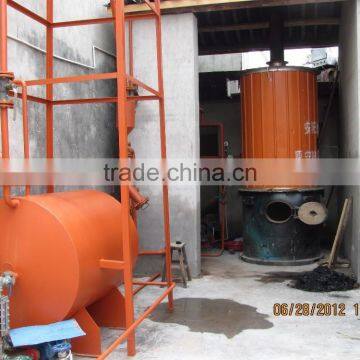

(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach
above 280°C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, deodor. Vacuum degree can
reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter
palm oil production line,palm oil refining process
The specification of refined palm oil
Item | Standard |
Color (Lovibond Cell 133.4mm) ≤ | R2.0 Y20 |
Smell and taste ≤ | No smell and good taste |
Transparence ≤ | Clear and transparent |
Moisture and volatile matter (%) ≤ | 0.05 |
Insoluble impurities (%) ≤ | 0.05 |
Acid value (mgKOH/g) ≤ | 0.20 |
Peroxide value (mmol/kg) ≤ | 5.0 |
Smoke point (°C) ≥ | 215 |

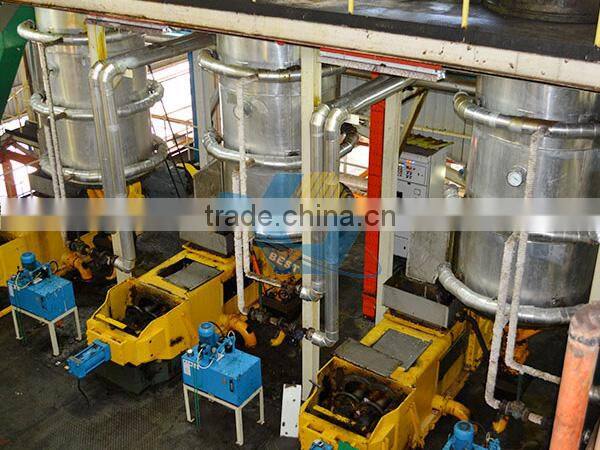

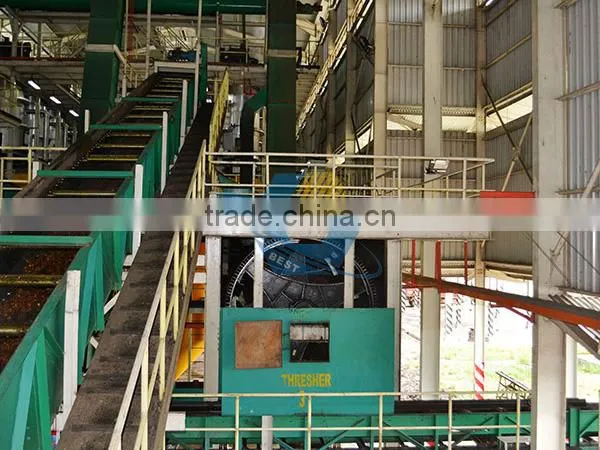

the palm fruit bunches thresher and the digester station:
NO.2 Our company
palm oil production line,palm oil refining process

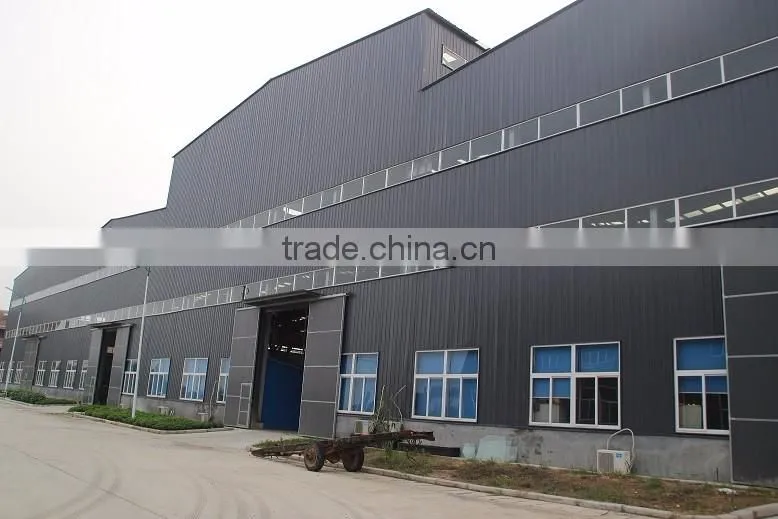

(1) company information
1. Over 30 years of experience in grain and oil machinery processing.
2. Got CE ,ISO 9001:2008,FDA,SGS certificates approved.
3. Long term cooperation with famous gain colleges and mechanical design research institutes.
4. Keep doing research and application on oil equipment, protein extraction, phospholipid extraction, etc.
5. Equipped with modern manufacturing workshops,strictly inspection for materials and fabrication.
6. Overseas installation, commissioning, test-run and after-sales service is available.
7. Welcome to visit our factory anytime.
(2)scope of business
•Grain Processing Machinery
10-1000TPD wheat flour factory
10-1000TPD corn flour factory Ⅰ
10-500TPD rice mill and rice flour mill
10-500TPD Corn grits processing machinery
Sorghum dehulling and milling plant
Soybean dehulling production line
Cereals processing machinery
Grain silos and drying equipment
•Edible Oil Machinery
palm oil production line,palm oil refining process
5-3000TPD some major oils production line
Pre-treatment of major seeds line
100-3000TPD Solvent extraction plant
10-1000TPD Oil refining production line(physical and chemical)
20-3000TPD Dewaxing plant(sunflower seed oil, rice bran oil and corn germ oil)
Palm fruit pressing and palm oil fractionation process
Feed Processing Machinery
10-500TPD Premix feed production line
10-500TPD Pig feed production line
10-500TPD Livestock feed production line
10-500TPD Aquatic feed production line
10-500TPD Cattle and sheep feed production line
(3)Our service
1.Our products have the high quality and high performance.we use the stainless steel instead
of the carbon steel.
2. We buy directly from the manufacturer for guaranteeing the quality.
3.Our welding worker should get the certificates.
4.Our electric machines all imported from Germany, like Simens motors
NO.3 client visit:
palm oil production line,palm oil refining process
We have a solid strength, to ensure the quality, professional after-sales, won the trust of customers around the world.The following are some of our customers come to buy equipment to visit the experimental operation of photos :
certificates:
F palm oil production line,palm oil refining process
amo palm oil production line,palm oil refining process
us brand in palm oil production line,palm oil refining process China! palm oil refine project ,oil mill project
