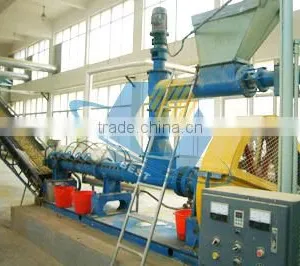

10TPD mini rice bran oil mill processing machine plant
Rice Bran Oil Extracting Plant, rice bran oil processing machine, China manufacturer Rice Oil Press machine,rice bran oil extraction machine ,rice bran oil machine price
10TPD mini rice bran oil mill processing machine plant
Process Description:

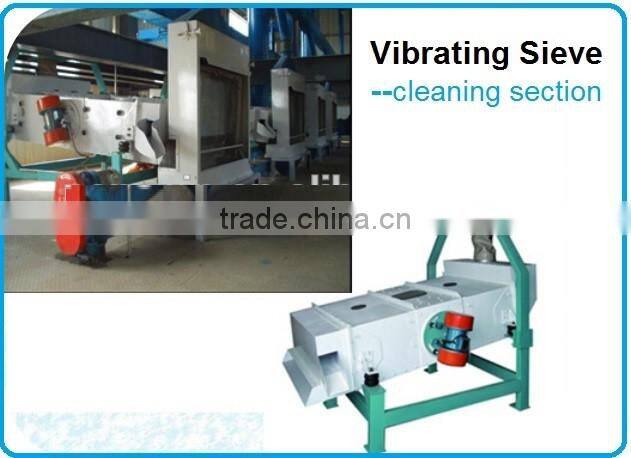

Rice Bran from daily bin is treated by magnetic separator, weighing scale and screener with dedusting aspiration network to remove impurities.
2. Cracking Section

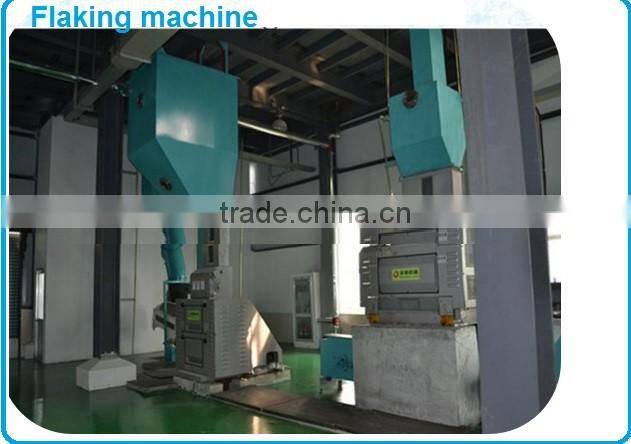

The purpose of cracking is to crack Rice Bran into small particles previous to softening and flaking, in order to improve the quality and capacity of the flaker.
3. Softening and Puffing Section
Horizontal drum softener is designed to adjust temperature and moisture of Rice Bran previous to flaking, improving oil yield greatly.
4. Pressing Section
Rice Bran is a kind of high oil-containing oilseed. Generally it is necessary to extract a portion of oil by mechanical pressing previous to subsequent process. Expeller with auxiliary cooker ensures material reach proper temperature and moisture. Pressing cakes containing residual oil from 14% to 18% is then treated by solvent extraction while crude oil is to be filtered.
5. Oil Residue Extraction Section

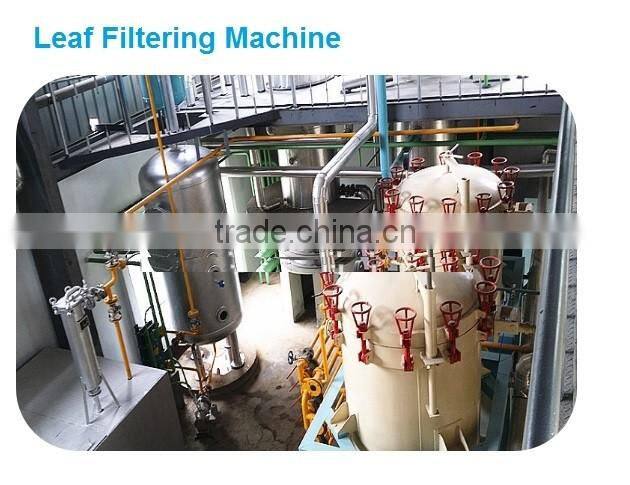

Due to high content of residue in crude oil, it is necessary to separate oil residue by oil drag conveyor firstly, crude oil then enters to settling tank for further separation. Collected residue is returned to pressing section while crude oil from settling tank is pumped to frame filter or leaf filter for further removing impurities.
6. Filling and Packing
Cooling drag conveyor is designed to cool down pre-pressing cakes with high efficiency, then cakes is conveyed to extraction plant.
7.Related Keywords :
Rice Bran Pressing turnkey project China equipment manufacturer factory engineering supplier
Advantages of 10TPD mini rice bran oil mill processing machine plant

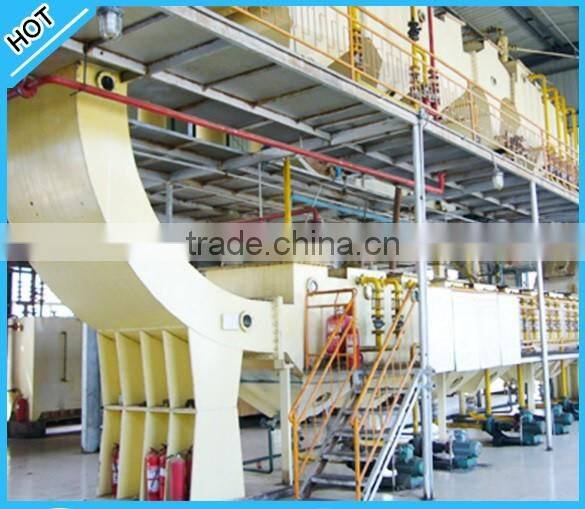

1.Absorbing the world’s leading core extraction technology, design and develop a process which is efficient, economical and reliable. Adopting box-chained loop type extractor can effectively achieve low residual oil, low solvent consumption and low failure rate of equipment. Thus, customers will have little cost and investment, and profit maximization will be achieved.
2.Full automatic computer control system is adopted in extracting process, adjust automatically and operate stably.
3.Negative pressure technology is adopted in condensate system. Using the secondary steam which comes from the DTDC as the heat source of first evaporation, thus can maximum save the energy consumption.
4.Stainless steel heat exchange tubes and multi-stage baffling make the condenser have a high heat transfer efficiency, also the water consumption is low.
5.Composed of pre-extraction, extraction and draining sections. There is material turnover in the process of extraction to make the extraction uniform and thorough. Special self-cell solvent spraying ensures the best effect during extraction.
Related Projects overseas of rice bran oil mill plant :
Machine Parts

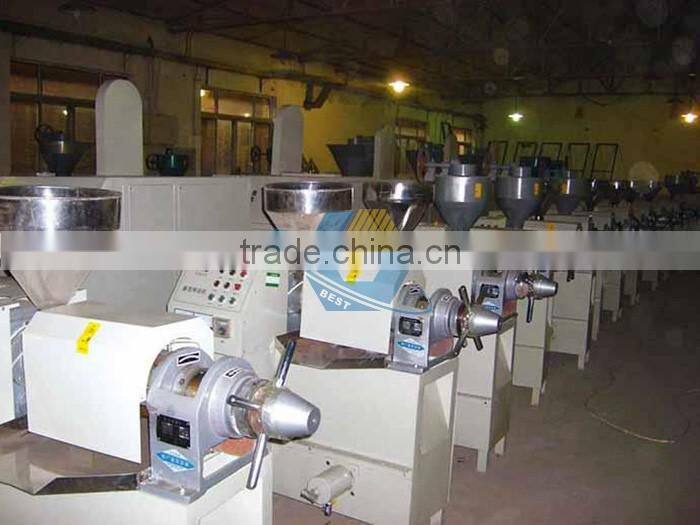

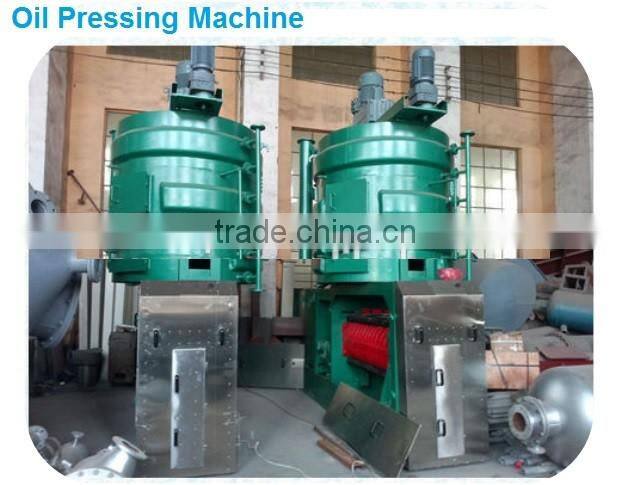

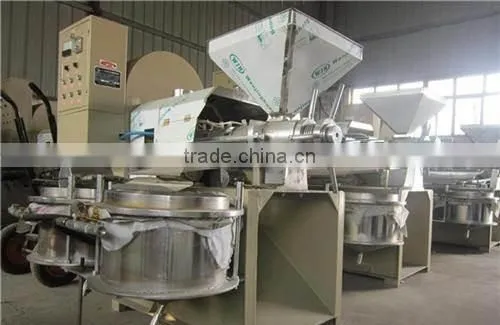

Name: Oil Pressing Machine
Brand: Beiside
Original: China

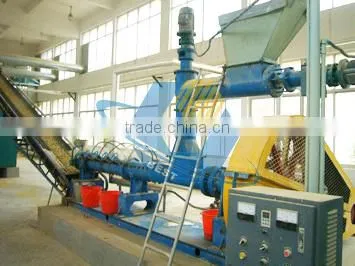

A Screw consists basically of a worm assembly,a shft fitted with spirally-arranged worm sections,rather like a screw.The shaft turns horizontally in a cage consisting of barrel bars that are clamped together forming a kind of sloted tube around the shaft.
Main Features

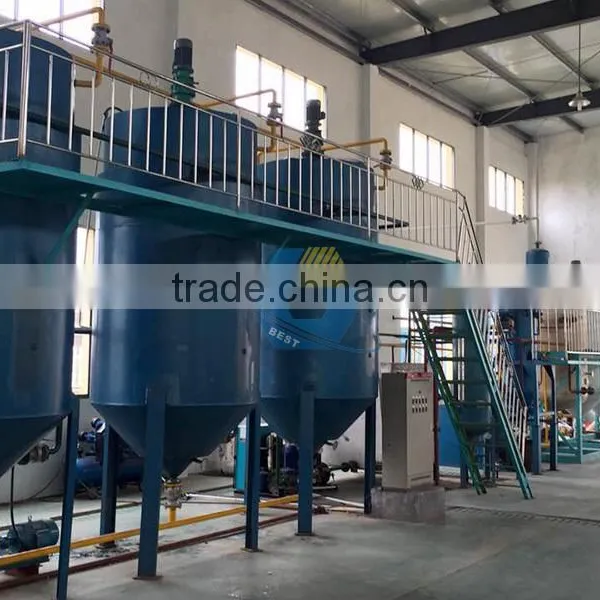

Name: Solvant Extraction Plant
Brand: Beiside
Original: China
In turning,the worm assembly moves the oil-seed from the feed-end to the dischage-end,expelling the oil through the slots between the bars of the of the cage.The oil-seed,as it moves along the shaft,loses oil,and its volume decreases accordingly.
Machine Parts

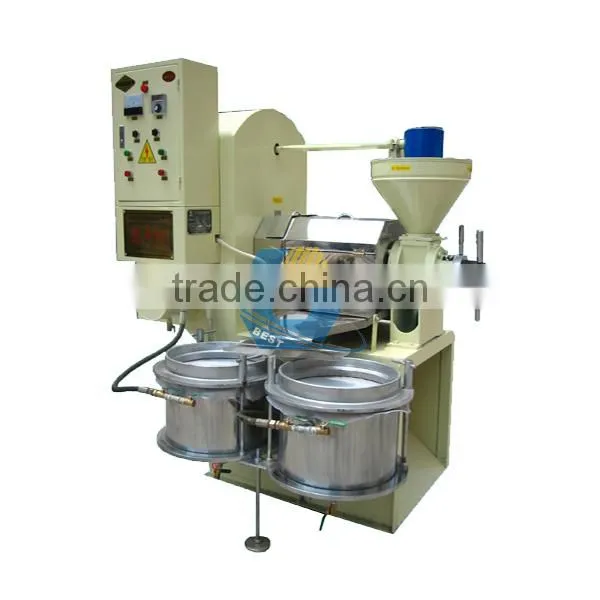

Name: Screw Oil Presser with Three Level Cooker
Brand: Beiside
Original: China
The design of the press must allow for this change of volume,and the friction betweent the cake and the cage must be maintained high enough to prevent the cake from rotating.The cake is expelled from the press through a choke gear,an adjustable cone forming an annular opening of variable size.
Main Features

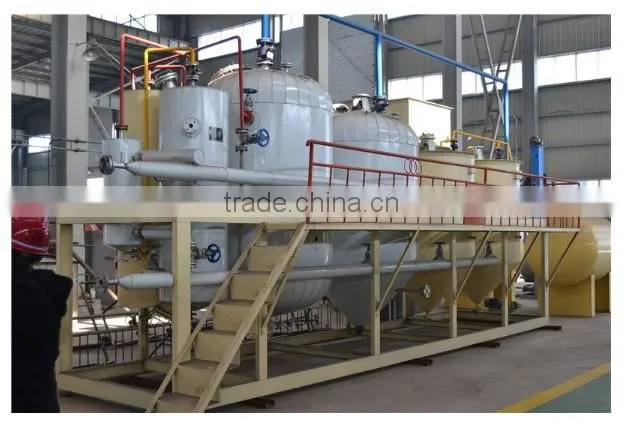

Name:Oil Refinery Plant
Brand: Beiside
Original: China
The choke gear can regulate the resistance of the cake to the movement of the screw,and the pressure exercised on the cake.To maintain this pressure essential for expelling the oil,a positive feed system is required.
The feed system is frequently a worm conveyor,either vertical or horizontal,that presses the oil-seed into the screw-press at the feed-end.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

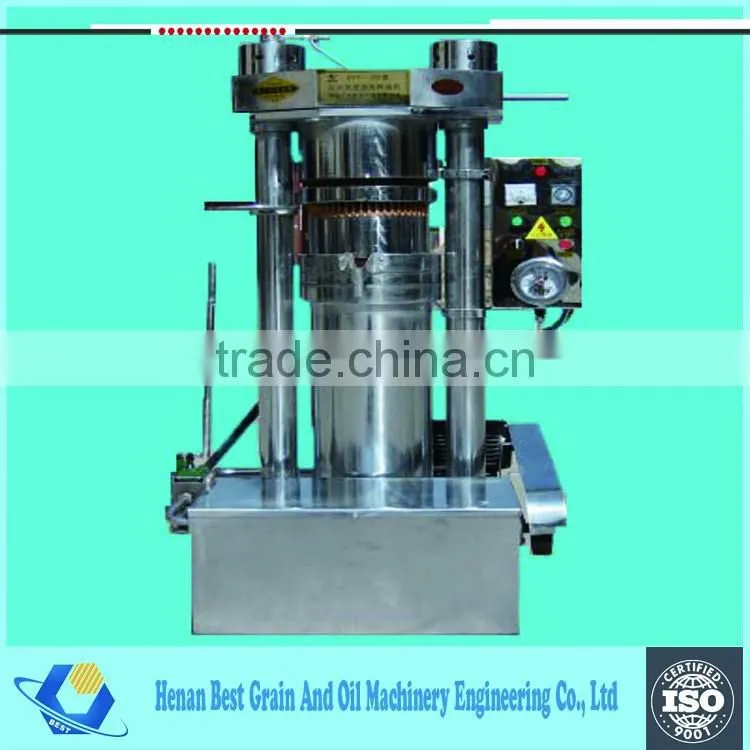

Automatic Hydraulic Oil Presser
