Made in shanghai china fast delivery big capacity stand mixer
- 50 Unit / Units per Month
- shanghai port
- Packaging linkage line Medical medicinepackaging production line
- The five metalsgive bag packaging production line Vertical packaging linkage line
- Beverage industrybox and palletizing production line
- Packaging assembly line Drugpackaging linkage line
- Chinese medicine teapackaging assembly line Packaging linkage line
- Packing and palletizing linkage line Food service industrybox and palletizing production line
Product Details
Condition: | New | Application: | Beverage, Chemical, Food | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V (can be customized) | Power: | 5.5kw(can be customized) | Place of Origin: | Shanghai, China |
Brand Name: | tandy | Model Number: | TDL-2000 | Dimension(L*W*H): | please contact with seller |
Weight: | base on the machine type | Certification: | GMP/CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Made in shanghai china fast delivery big capacity stand mixer
Features of big capacity stand mixer:
TDL horizontal ribbon mixer is used for application to, power and power; granule and granule; powder and a few liquid mixing; it is widely used in food, chemical industry, pharmaceutics, feedstuff, plastic, building material and so on; Customizing according to client’s specific requirement, it can be from 304,316L,321 and carbon steel etc. it can be according to GMP standard, too.
1. wide application for mixing material, for paste mixing even; keep granule mixing intact.
2. material proportion different 1:1000 ~10000 perfectly mixing;
3. Customizing according to client’s requirement such as hotting Cooling, pression, vacuum ect.
Reference paramete of big capacity stand mixer:
Type | Volume(L) | Coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight |
TDL-200 | 200 | 0.4-0.6 | 4 | 53 | 2020X630X1700 | 300 |
TDL-300 | 300 | 0.4-0.6 | 5.5 | 53 | 2300X700X1780 | 420 |
TDL-500 | 500 | 0.4-0.6 | 7.5 | 45 | 2600X840X1850 | 600 |
TDL-1000 | 1000 | 0.4-0.6 | 11 | 45 | 2930X990X2000 | 880 |
TDL-1500 | 1500 | 0.4-0.6 | 15 | 39 | 3280X1070X2150 | 1260 |
TDL-2000 | 2000 | 0.4-0.6 | 18.5 | 39 | 3620X1180X2320 | 1750 |
If you need more technical parameters, please contact us. |

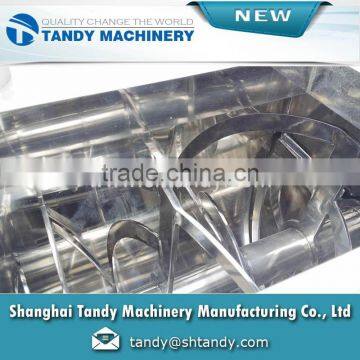

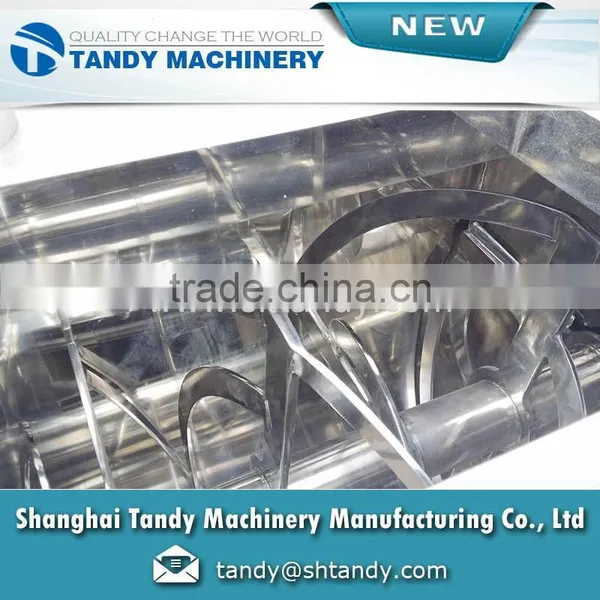

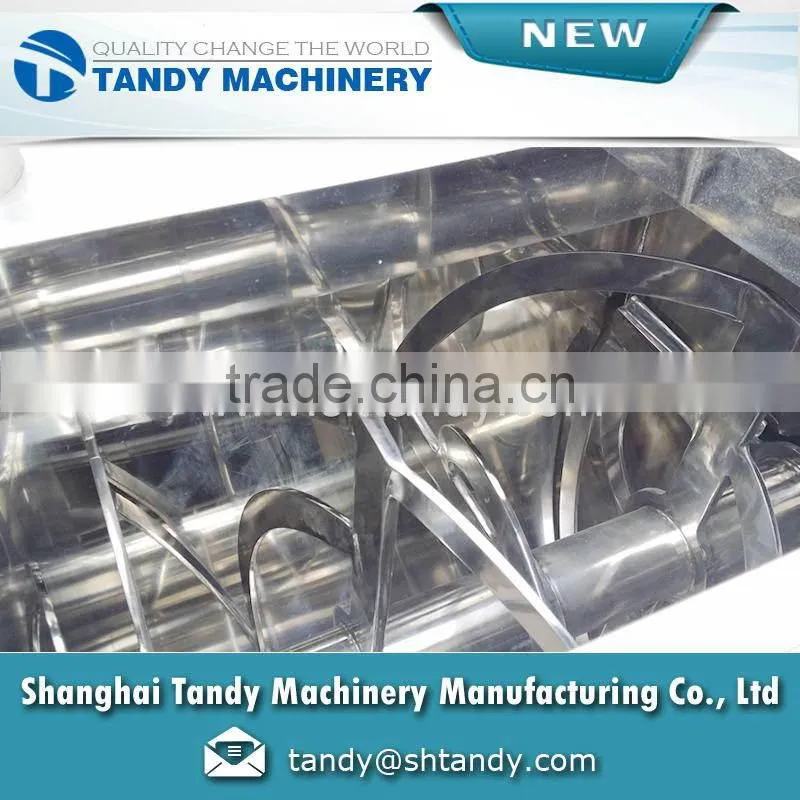

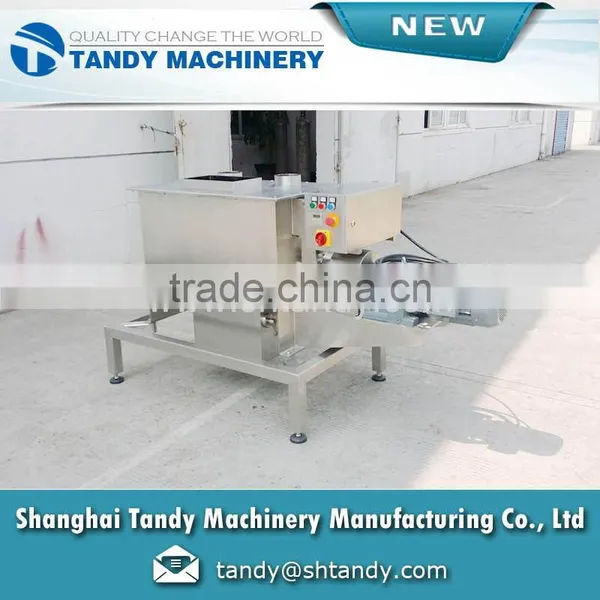

Picture of big capacity stand mixer:
Principle of working:

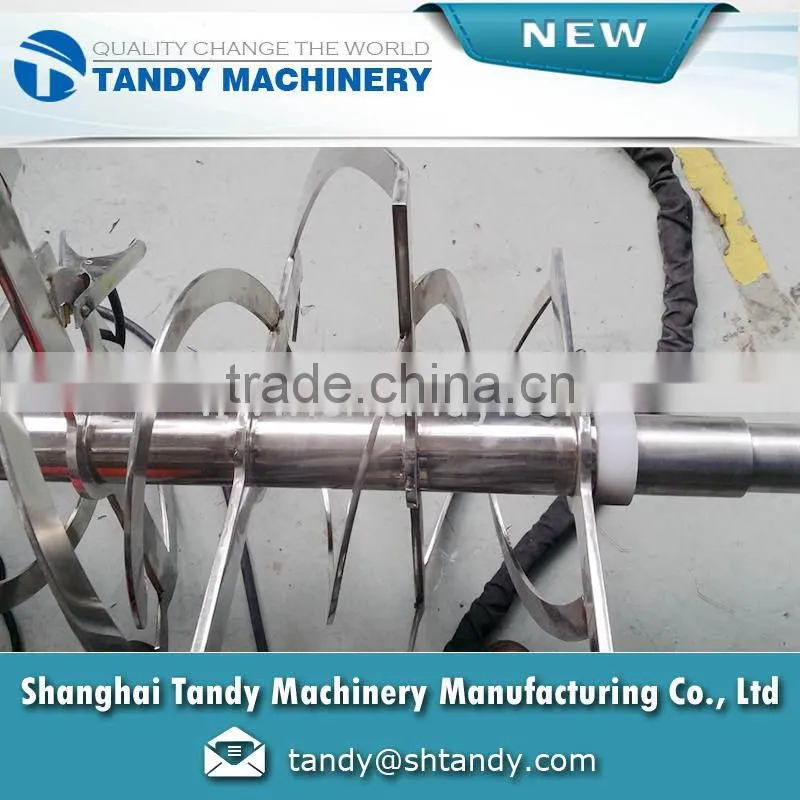

TDL horizontal ribbon mixer consists of a mixing storage, helix blades and transmission parts. There is two tiers or three tiers of ribbon blender axis in the mixing container. The principle of working as below:
1.The outer helix will move the material from its two sides to the central part,
2. The inner helix will transfer the material to the two sides, performing convection mixing.
3. There is discharge exit on the centre of the u container bottom of mixer; The outer helix match with main helix make the materials to center exit discharging; it make u container no leftover in u container.
