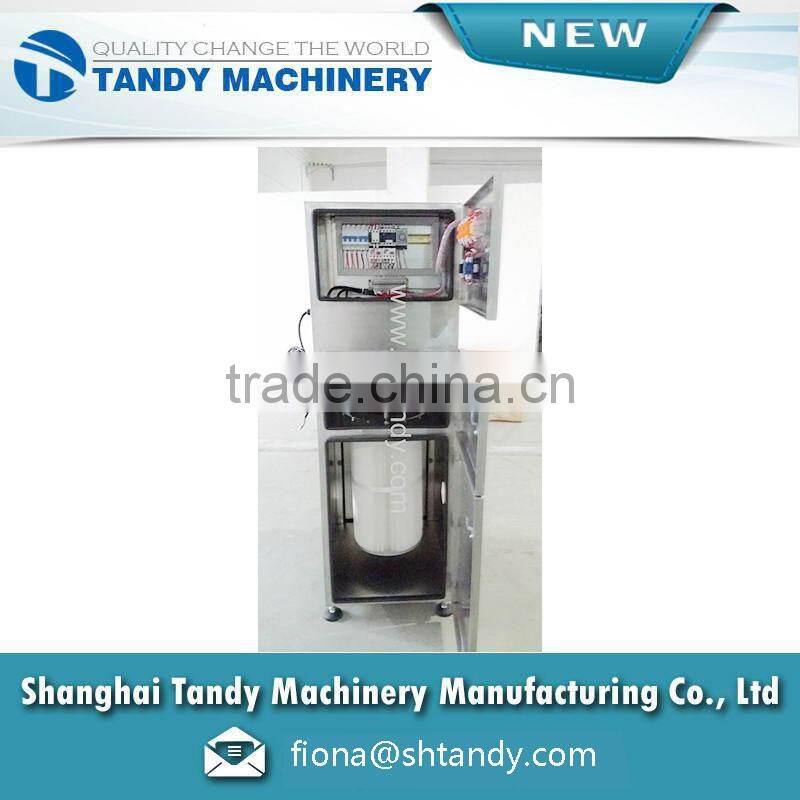

Help CenterThe Most Popular Low Noise Best Choice Dust Collector/Vacuum Cleaner
Related Products
-
2016 China High Quality Industrial Dust Collector Vacuum CleanerUS$ 1,503 - 5,034MOQ: 1 Set -
2016 New Hot Fashion Top Sell 0.2 Micron Cartridge FilterUS$ 1,503 - 5,034MOQ: 1 Set
-
Practical Best Selling Abaca Pulp Tea Bag FilterNegotiableMOQ: 1
-
2016 High Quality Powerful Industrial Dust Collector/Vacuum CleanerUS$ 1,503 - 5,034MOQ: 1 Set
-
Low Price Reliable Quality Pate Dust Collector Bag FiltersUS$ 1,450 - 4,000MOQ: 1 Unit
The gas with powder goes into the dust collector through inlet hose under pressure, air expansion at this time, lower flow velocity will cause the large particles of powder separated from the gas with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to the filter’s outer wall with the air flowing direction and then clean by the vibration device. After purification, the gas goes out from the top outlet through the filter and filter cloth.
Main features:
1.Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
2. The singlde drum filter of folding micron grade can absort more powders.
3. Secial design of multi blade wind wheel with more stronger suction abiblity.
4. One-key type vibraion cleaning powders, be more efficient to remove the powders which attached the cylindar filter, clean dusts efficiently.
5. Adding remote controlling system, be convenient to distance controlling equipments.
6. Special insulation cotton reduce noises more efficiently.
Reference paramete of dust collector :
| Model | Blowing rate(m3/h) | Pressure(pa) | Power(KW) | Equipment max noise(Db) | Dimension(mm) | Weight |
| TDCC-1.5A | 750-1050 | 940-690 | 1.62 | 60 | 680*600*1610 | 136 |
| TDCC-2.2A | 1350-1650 | 960-580 | 2.32 | 65 | 710*640*1740 | 168 |
| TDCC-3.0A | 1700-2400 | 1680-1100 | 3.12 | 70 | 770*670*1810 | 220 |
| TDCC-4.0A | 2650-3500 | 1680-1100 | 4.12 | 70 | 830*780*1880 | 280 |
| TDCC-5.5A | 3800-4500 | 1680-1100 | 5.62 | 75 | 910*760*1970 | 325 |
| TDLD-7.5A | 4800-7000 | 1680-1100 | 7.62 | 75 | 960*800*2020 | 425 |
| If you need more technical parameters, please contact us. | ||||||
