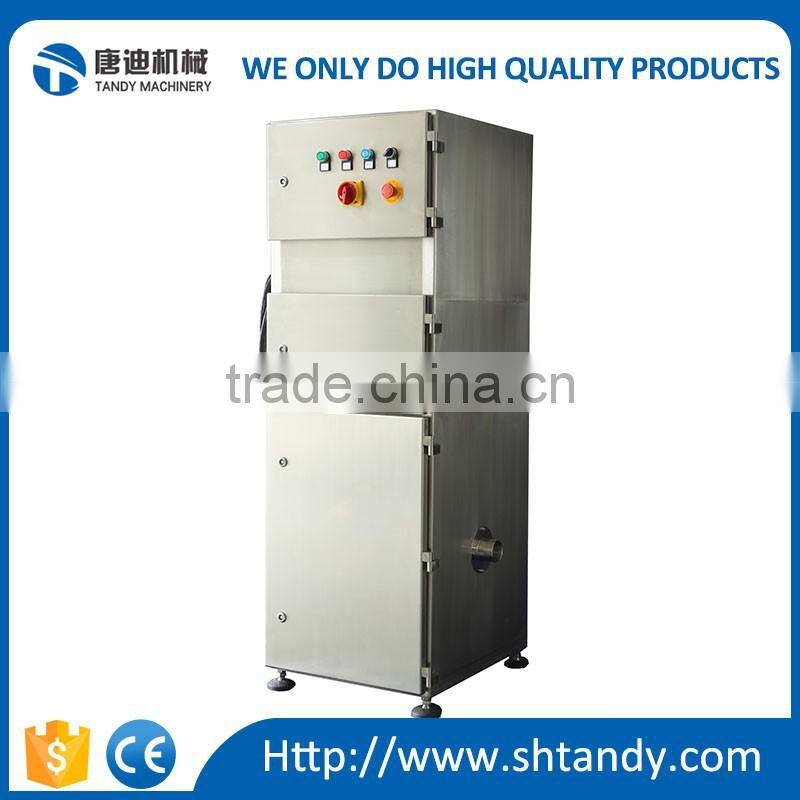

The gas with powder goes into the dust collector through inlet hose under pressure, air expansion at this time, lower flow velocity will cause the large particles of powder separated from the gas with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to the filter’s outer wall with the air flowing direction and then clean by the vibration device. After purification, the gas goes out from the top outlet through the filter and filter cloth.
1. Elegant & splendid
Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
2. High efficiency
The single drum filter of folding micron grade can absorb more powders
3. Strong strength
Special design of multi blade wind wheel with more stronger suction ability.
4. Convenient cleaning
One-key type vibration cleaning powders, be more efficient to remove the powders which attached the cylinder filter, clean dusts efficiently.
5. Hommization
Adding remote controlling system, be convenient to distance controlling equipment.
6. Lower noises
Special insulation cotton reduce noises more efficiently.
It is especially suitable for pharmaceutical, milk powder filling production line and other powder processing.
| Model | TDCC-1.5A | TDCC-2.2A | TDCC-3.0A | TDCC-4.0A | TDCC-5.0A | TDCC-7.5A |
| Blowing rate | 750-1050 | 1350-1650 | 1700-2400 | 2650-3500 | 3800-4500 | 4800-7000 |
| Pressure(Pa) | 940-690 | 960-580 | 1680-1100 | 1680-1100 | 1680-1100 | 1680-1100 |
| Power(KW) | 1.62 | 2.32 | 3.12 | 4012 | 5.62 | 7.62 |
| Equipment Max Noise(dB) | 60 | 65 | 70 | 70 | 75 | 75 |
| Length(mm) | 680 | 710 | 770 | 830 | 910 | 960 |
| Width(mm) | 600 | 640 | 670 | 780 | 760 | 800 |
| Height(mm) | 1610 | 1740 | 1810 | 1880 | 1970 | 2020 |
| Filter Size(mm) | 325*600*1 | 408*660*1 | 280*660*3 | 300*660*3 | 300*660*4 | 325*660*4 |
| Total Weight | 152 | 190 | 235 | 290 | 350 | 420 |
| Power Supply | 3P AC 208-415V 50/60Hz | |||||
Pre-Sales Service: After-Sales Service:
* Inquiry and consulting support. * Advisory service: Users encounter any problems in the use process, can call the company for technical support.
* Sample testing support. * Warranty: Warranty period of the product, if quality
* View our Factory. problems, the company is responsible for the warranty service.
