Small fish food pellet machine for small fish harming holders with low price
- 50 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou
- T/T
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | FANWAY |
Model Number: | FY-DGP90 | Type: | Feed Pellet Machine | Voltage: | 380V,50HZ,3phase |
Power(W): | 32KW | Dimension(L*W*H): | 2100*1450*1350mm | Weight: | 950 kg |
Certification: | CE ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Small fish food pellet machine for small fish harming holders with low price
Brief Info of fish food pellet machine
This fish food pellet machine is used to produce variety materials into high-grade aquatic feed for fish, catfish, tilapia, shrimp, crab, cat, dog, fox, frog, pet bird, and other small animals,etc. Floating time of the feed pellets for fish can be adjusted by the puffing degree adjustment.
Commom raw material of feed pellets
The raw material can be corn meal, wheat bran, rice bran, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, meat meal, etc.

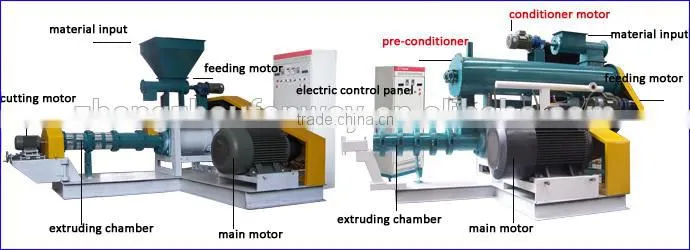

This fish food pellet machine can be divided into two types: dry type and wet type.The differences are as following:
1. Equipment:The dry type does not need the steam boiler while the wet type is with the conditioner and need to equip the steam boiler. Thus the dry type will be cheaper and easier to operate.
2. Final feed products quality: The fish feed pellets made by the wet type fish food pellet machine is more smooth and with better quality, because the material is ripen and mixed adequately in the conditioner compared with the dry type.
3. Capacity: The capacity of the wet type is higher than the dry type. So the dry type machine is widely used for small and medium fish farm holders, livestock farm, feed mill, or feed processing plant. While the wet type is more suitable for large feed pellet processing factory.
Detailed parameter of dry type fish food pellet machine
Model | Capacity (kg/h) | Motor power (kw) | Feed power (kw) | Screw Dia (mm) | Cutting power (kw) |
FY-DGP60 | 0.12-0.15 | 15 | 0.4 | 60 | 0.4 |
FY-DGP70 | 0.18-0.25 | 18.5 | 0.4 | 70 | 0.4 |
FY-DGP80 | 0.3-0.35 | 22/27 | 0.4 | 80 | 0.6 |
FY-DGP90 | 0.4-0.45 | 30/37 | 1.1 | 90 | 0.6 |
FY-DGP120 | 0.5-0.7 | 55 | 1.1 | 120 | 1.5 |
FY-DGP135 | 0.8-1.0 | 75 | 1.1 | 133 | 2.2 |
FY-DGP160 | 1.2-1.5 | 90 | 1.5 | 155 | 2.2 |
FY-DGP200 | 1.8-2.0 | 132 | 1.5 | 195 | 3.0 |
Dry type models images
Features of fish food pellet machine
1. Main parts, like sleeve and screw, of this fish feed extruder are made of alloy material, wearable, and have long service life.
2. It is of novel design, high production capacity and stably excellent performance.
3. The high pressure punching device ensures the capacity and the quality of feed pellets, and the electric heating device improves the puffing rate.
4. The feeding speed can be adjusted, to make it easier to operate and maintain even feeding performance.
5. This fish food pellet machine can produce fish feed pellet of different size, and pet food of different shapes. Some samples as following:
6. Easy to change the moulds, the rotating speed of the cutting device can be adjusted to make different length.
Advantages of feed pellets made by this fish food pellet machine
1. Fish feed pellets diameter is 1-20mm, can be customized.
2. This fish food pellet machine can produce both floating and sinking feed pellets for fish. The floating feed pellets can float on the water surface at least for 12 hours, better to be digested, without feed waste and water pollution. People can obviously observe the eating capacity.
3. By high temperature and high pressure effect, the colibacillus and salmonella are killed to ensure the sanitation of the feed, make it easier to digest the protein for fish and animal.
4. The final fish feed pellets have unique shape and good taste, high nutrition and smooth textures.
Detailed parameter of wet type fish food pellet machine
Model | Capacity (kg/h) | Motor power (kw) | Feed power (kw) | Screw Dia (mm) | Cutting power (kw) | Conditioner power (kw) |
FY-DSP60 | 0.18-0.2 | 15 | 0.4 | 60 | 0.4 | 0.75 |
FY-DSP70 | 0.25-0.30 | 18.5 | 0.4 | 70 | 0.6 | 1.5 |
FY-DSP80 | 0.35-0.40 | 22-30 | 1.1 | 80 | 0.75 | 1.5 |
FY-DSP90 | 0.50-0.60 | 37 | 1.1 | 90 | 1.1 | 2.2 |
FY-DSP120 | 0.70-0.80 | 55 | 1.1 | 120 | 1.5 | 2.2 |
FY-DSP135 | 1.0-1.5 | 75 | 1.5 | 135 | 2.2 | 2.2 |
FY-DSP160 | 1.8-2.5 | 90 | 2.2 | 155 | 2.2 | 3.5 |
FY-DSP200 | 3.0-4.0 | 132 | 2.2 | 195 | 3.0 | 4.5 |
Wet type models images
Spare parts of the fish food pellet machine
We will send 3 sets moulds, 1 whole set of wearing spare parts and service tool for free.
1. This fish food pellet machine will be packaged by export wooden case.
2. We will arrange the delivery within 15-20 working days after the receipt of the payment.
1. The shapes of feed pellets can be changed by customizing the moulds.
2. Formulation and production line design advice may be provided.
3. We can provide the manual operating and video.
Zhengzhou Fanway Machinery Manufacturing Co.,Ltd is a professional manufacturer of feed pellet machinery. We specialize in researching, developing, producing and marketing pellet related machines. We can design a whole production line according to customers' requirement, including the crusher, mixer, extruder, dryer, cooler, oil coater and packing machinery, etc.
Q: To choose floating or sinking feed pellets?
A: Usually the fish diets can be divided into floating and sinking pellets. Both can produce satisfactory growth. Some fish species prefer floating, while others sinking. However, the floating pellets have more advantage: 1. reduce waste 2. Decrease disease 3. Observe conveniently.
Q: Is there a formulation for making fish feed pellets?
A: It is totally based on the situation of your fish. Formula can be offered for free.
Q: Is there diesel type fish feed pellet machine?
A: Some models with smaller capacity have diesel type.
