cheap small sawdust pellet mill, biomass pellet machinery in China
Pellet Machinery is a type of crude fiber wood pellet mill. It is designed to compress biomass materials into biofuel pellets to replace petroleum, diesel and electricity. With capacity varying from 40kg/h to 2000kg/h, electric flat die wood pellet mill machine is suitable for making biomass fuel pellets for home use or in a small biofuel pellet plant. Simple operating and reliable running and available capacity for choice, it's nevertheless a good chioce for making wood pellets at home or for a small wood pellet line.
Our pellet mill can make wood pellets from any kinds of sawdust, recycled paper, grass, leaves, or any type of biomass, such as alfalfa, wheat straw, rice straw, rice husk, bagasse, peanut shell, hops,etc.

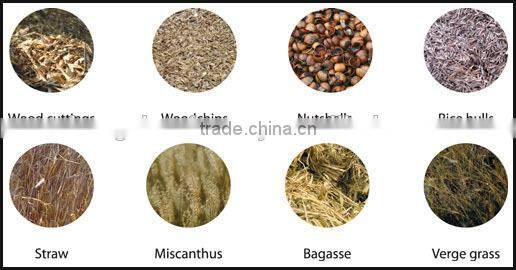

Raw materials as below:
Features of Pellet Machinery
♣Transmission gears made of high quality alloy steel, surface adopts carburizing and quenching treatment, precision machining by grinding, smooth, transmission, low noise, large carrying capacity, low temperature rise, long life etc.
♣Spindle with a heavy thrust bearing, support axial force, long lifespan.
♣Roller and flat die wear peace deal, both sides can use the flat die, long service life.
♣Pellet machine uses large diameter roller,big yield, pelletizing rate is high, uniform high strength pellets.
♣All bearings are sealed structure that efectively prevent dust, improve the working bearings environment, extending bearing life.

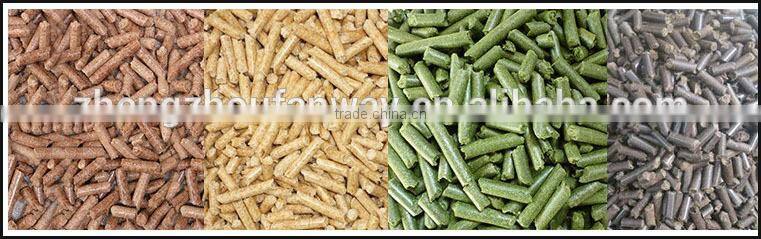

Final Pellets of Pellet Machinery
Parameters of Pellet Machinery
Model |
Power(kw) |
Capacity(kg/h) |
Flat die Dia.(mm) |
Dimension(mm) |
Pellet Size(mm) |
FYM-120 |
2.2 |
40-60 |
120 |
550*300*710 |
6-12 |
FYM-200 |
7.5 |
110-140 |
200 |
850*420*850 |
6-12 |
FYM-300A |
15 |
220-280 |
300 |
1200*520*1050 |
6-12 |
FYM-300B |
18.5 |
250-300 |
300 |
1200*520*1050 |
6-12 |
FYM-350A |
22 |
300-360 |
350 |
1270*580*1150 |
6-12 |
FYM-400 |
30 |
400-500 |
400 |
1350*600*1200 |
6-12 |
FYM-500 |
55 |
700-800 |
500 |
1700*750*1450 |
6-12 |
FYM-600 |
90 |
1200-1300 |
600 |
2100*900*1650 |
6-12 |
FYM-700 |
132 |
1700-1800 |
700 |
2400*1050*1870 |
6-12 |
Inner Structure of Pellet Machinery

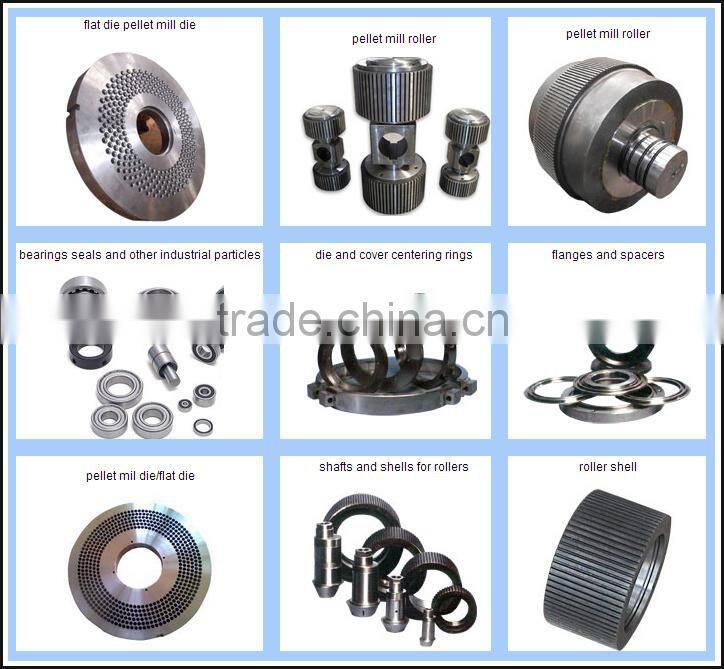

Spare Parts of Pellet Machinery
Application of Pellet Machinery
1, Help you to choose suitable Wood Pellet Machines;
2, Design Wood Pellet Machine according to your special requirements;
3, Answer your questions and give your detailed explanation timely and effectively;
4, After you confirm the order, if we have the right Wood Pellet Machine in stock, we will arrange delivery immediately. If not, we will arrange production for you at once,
5, Assist to draft the construction scheme and detailed process
6, For the installation of the Wood Pellet Machine, we can sent technical personnel to the scene of the on-the spot
guidance equipment installation, debugging and training operators, if you have any questions for machines just let me know feel free, by email, phone, whatsapp, wechat etc, we will reply you in shortest time! Fanway Machinery will always together with you and never let you down!
1. Q:How do I pay for my purchase order?
A:T/T, L/C, Western Union, Escrow, Paypal
2. Q:What kind of raw material is suitable for pellets machine?
A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell……
3. Q: Any requirements on materials?
A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be12-21%.
4. Q:Can I visit your factory, where is your factory located?
A: Yes, sure, welcome to visit our factory at any time, we are in Zhengzhou city. Henan province,
in the middle of China.
5.Q:About the installation, can you help us to install Wood Pellet Machine/ Wood Pellet Production Line?
A:Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment
installation, debugging and training operators.
Contact: Ms. Susan zhang
Email: susan(at)
Mobile&Whatsapp:0086-13837301435
Skype:zhang.susan8931
With rich experiences in wood pellets machine field and exporting, we can provide professional solutions for customer. Send your Inquiry Detaila in the Below, Click "Send" Now!!!
