HOT!!! rotary type wood shaving dryer with 3 layers
Our Attractive Advantages
1> NON-DUST WORKSHOP
2> large production capacity
3> low energy consumption & high efficiency drying effect
4> professional service & unique custom-made design
5> FACTORY PRICE
Introduction of wood shaving dryer
Our 3-layer rotary drum dryer is designed specially for drying sawdust, wood shavings, wood chips, sugarcane bagasses and other small size materials with high moisture. The heating source of dryer is pellets, wood, briquettes, coal, sawdust and any biomass material, which feeding these materials into the stove to provide heating to the whole system.

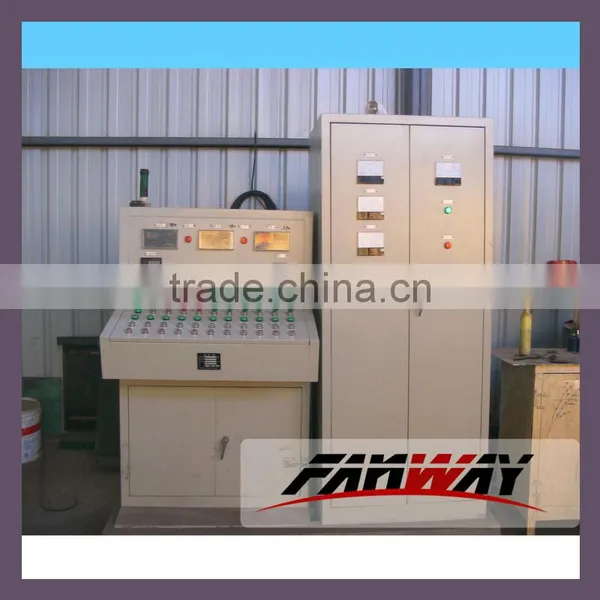

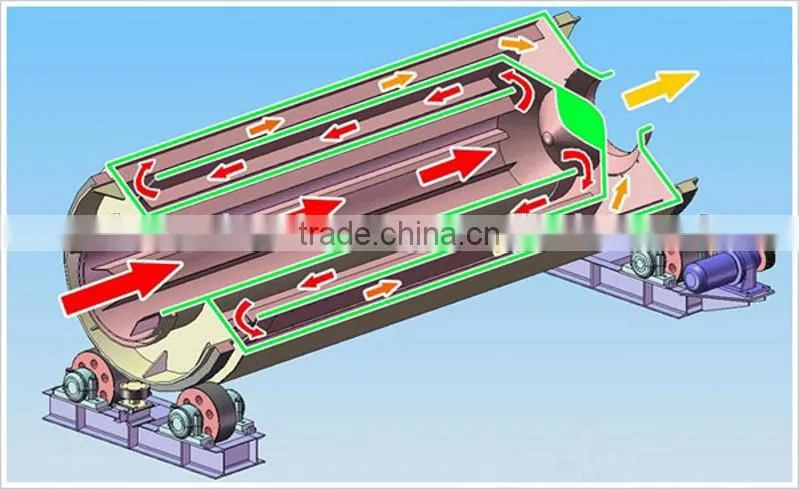

The rotary dryer is made up of stove, rotary dryer main body, air fan, cyclone, air lock, pipeline and electric control cabinet. The rotary dryer can reduce the moisture of raw materials from 40-45% to 12%, to make it suitable for producing briquettes and pellets of use as fuel directly. It adopts hot air to reduce the moisture content of raw materials. The hot air is generated through heat stove at one end of the rotary body, then the hot air will flow with the help of air fan’s suction and when raw material comes through the rotary body, hot air pulled over the material and they product heat exchange, thus the material will be dried with high efficiency.
Features of wood shaving dryer

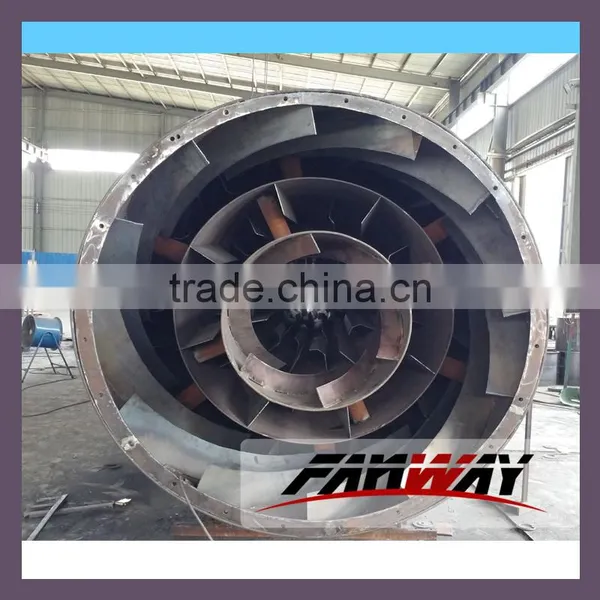

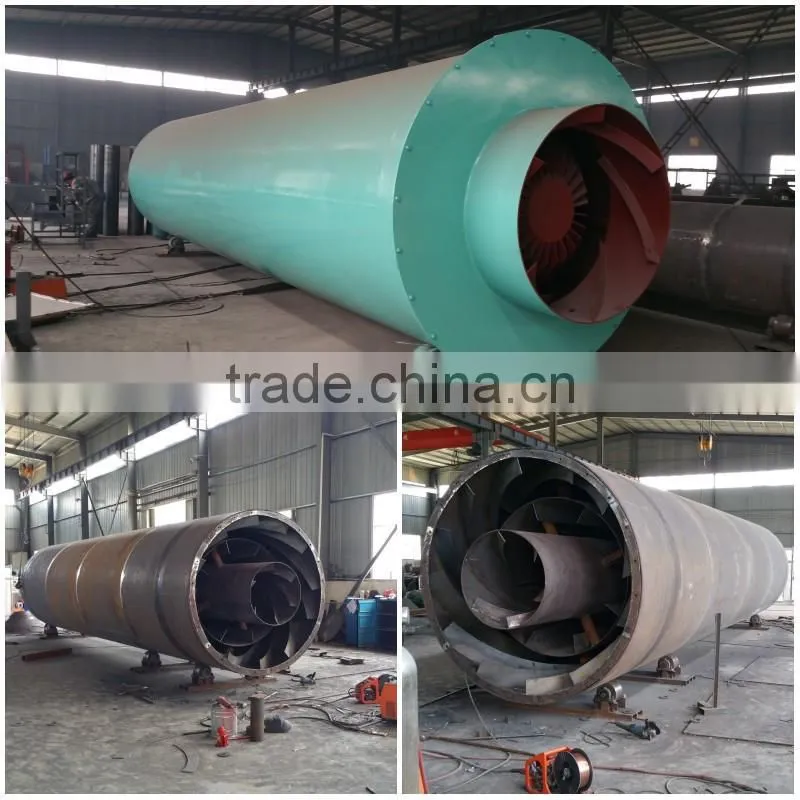

- Three-pass dryer is with high drying efficiency, heat utilization ratio and less space needed. The floor space is 30% less than single drum dryer with the same capacity.
- Support of roller ring and retainer wheel are integral cast steel structure, with high strength, stable operation, anti-abrasion and long service time.
- Convenient feeding, feeding from middle of dryer by screw conveyor or from the top according to the different materials.
- Sealed by flexible and anti-abrasion steel disc at the drum body and feeding & discharge end. It is of long service time and easy installation.

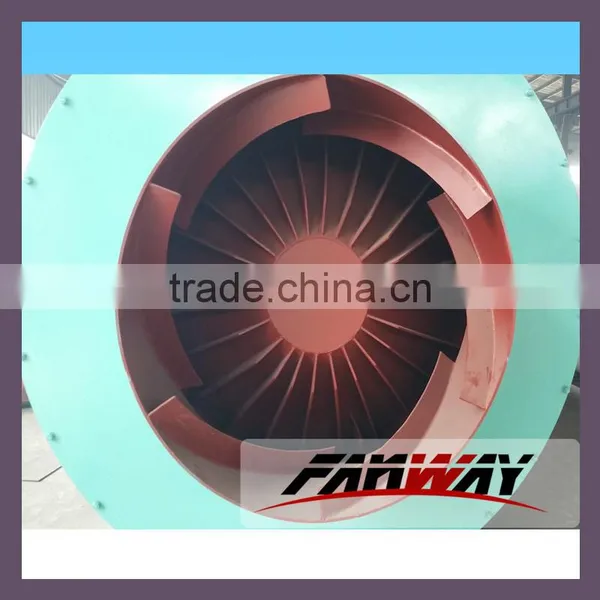

- Lifting plates installed inside the drum make the material full mixed with hot air, with low residue and high drying efficiency.
- Reasonable discharge structure that can separate from losing and improve the utilization efficiency.
Technical Parameters of wood shaving dryer
Model |
MGZG1600 |
MGZG1800 |
MGZG2100 |
MGZG2400 |
MGZG2800 |
Power (KW) |
5.5 |
8 |
8 |
22 |
30 |
Yield (T/H) |
1.0-1.5 |
1.5-2.5 |
2.5-3.5 |
3.5-5.0 |
5.0-8.0 |
Drum Diameter (mm) |
1900 |
2100 |
2400 |
2900 |
3500 |
Drum Length (mm) |
8000 |
9000 |
10000 |
12000 |
16000 |
Suction suction power (KW) |
Y5-47-11D |
Y5-47-11D |
Y5-47-11D |
Y5-47-12.4D |
Y5-47-12.4D |
Supporting suction power (KW) |
22 |
30 |
55 |
75 |
90 |
Hourly stove heat (Kcal) |
900 |
1200 |
1800 |
3000 |
5000 |
Supporting Cyclone quantity |
1 |
2 |
4 |
4 |
6 |
Zhengzhou Fanway Machinery is a professional supplier of the different kind of machinery. Our products have been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
1. Professional solution design, high quality machines, competitive price.
2. Consult and answer all your questions within 24 hours.
3. Factory layout design according to your requirement.
4. Formulation available.
5. Visit our factory at any time.
6. Professional engineer, overseas installation and commissioning, training.
7. Warranty: 1 year
8. Service life long technical support.
9. Payment terms: 30% by T/T in advance, the balance against delivery.

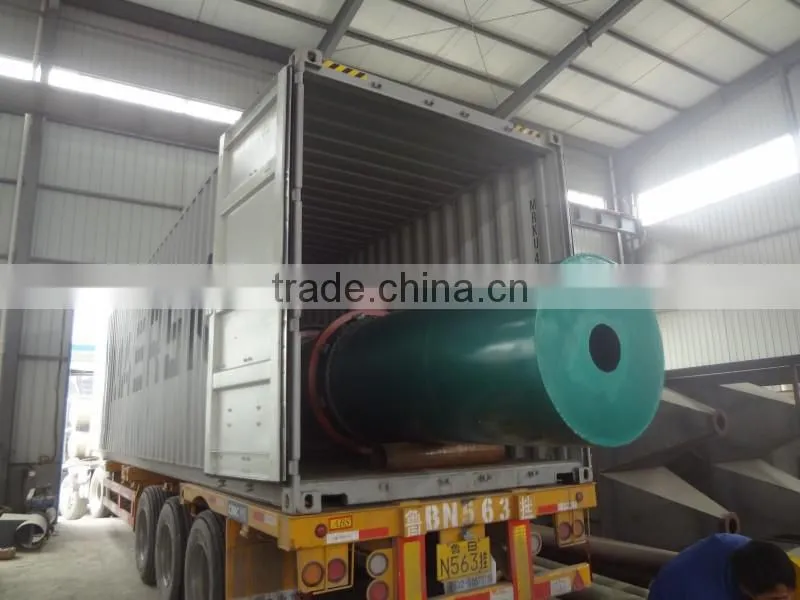

The wood shaving dryer will be loaded in the stardard container.

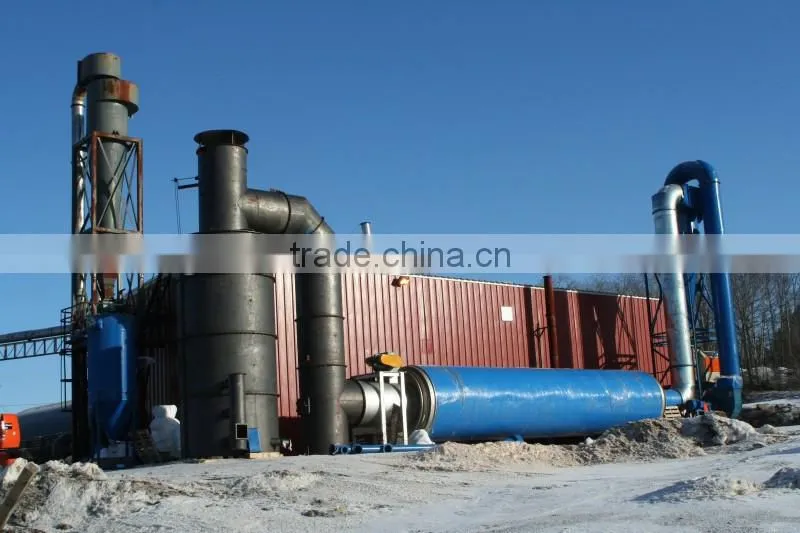

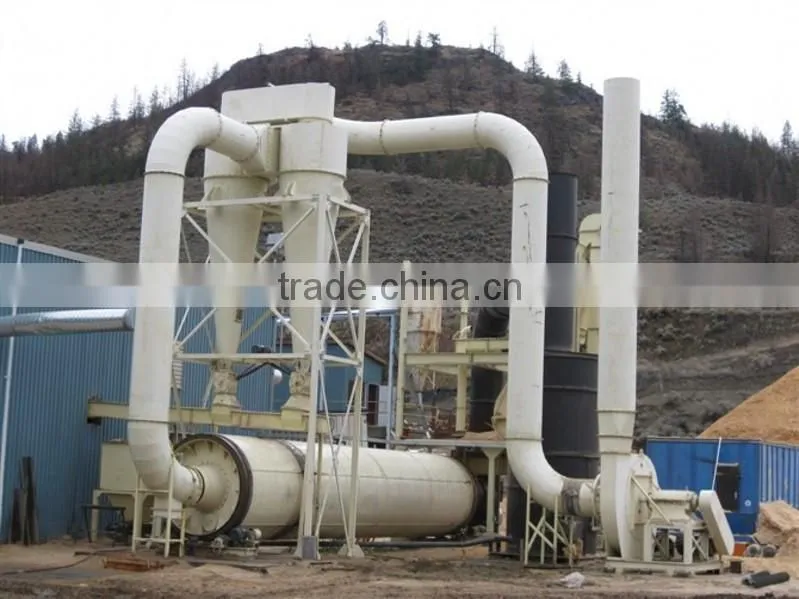

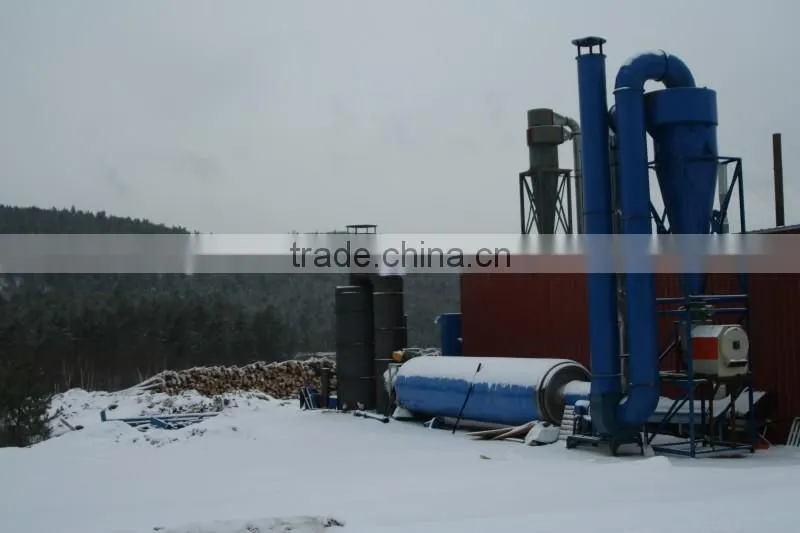

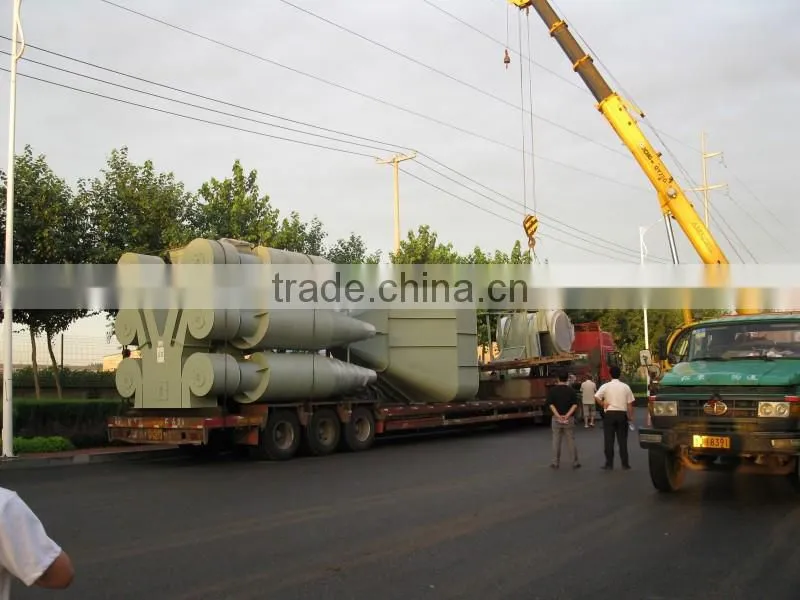

Our wood shaving dryer has been exported to many countries. If possible, you could visit these sites by yourself.
Also welcome to our factory!
