Lowest Price Rotary Drum Dryer's Price/Used Drum Sand Dryer
Lowest price rotary drum dryer's price/used drum sand dryer is your best choice to dry biomass materials of high moisture content and produce high quality biomass fuel. Biomoass materials go through dryer can improve biomass fuel efficiency of 5-15% and lower down emission.
Industrial Rotary Dryer/Wood Chips Rotary Dryer/Rotary Drum Dryer's Price is widely employed in chemical industry, metallurgy, building and mine digging, etc. The heat efficiency reaches 80% which is much more higher than other drying equipment.
We have single layer Lowest price rotary drum dryer's price/used drum sand dryer and three layers Rotary Dryer , three layers dryer is our newest dryer, it is more short than the single layer dryer, convenient for transport, high drying efficiency and better drying effect!
Application and material for the Rotary Drum Dryer's Price/Used Drum Sand Dryer
Rotary Drum Dryer's Price/Used Drum Sand Dryer can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc. Featured by low energy consumption and high drying efficiency.
Rotary Drum Dryer's Price/Used Drum Sand Sryer Structure
Consist of rotating cylinder, transmission device, supporting device and shoveling plates,etc, Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine is a horizontal type drying device. This Industrial Rotary Dryer/Wood Chips Rotary Dryer/ Rotary Drum Dryer's Price
is reasonably designed and with large drying capacity of 1-3t/h. There are shoveling plates in different angels welded throughout inner side of the whole drum. The feeding place is set door ring and rotary shoveling plates to avoid materials splashing.
Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine Features
1. Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine has high temperature and heat air can dry biomass materials quickly and evenly.
2. High self-insulation thermal efficiency of 70% inside the drum.
3. Economic space occupation, easy to build and maintain.
4. Moisture content requirements is adjustable, depending on clients’ demand.
5. Stable drying process, low energy consumption, low cost.
Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine Working Principle
Biomass materials with high moisture content are fed into rotary cylinder; shovelling plates inside the drum walls raise up materials and these materials scatter down to move in a spiral forward style. During the constant raising up and scattering down, biomass materials can absorb enough amount of heat, at the same time, the drying time is extended to achieve the best drying effects.
Technical parameters of single laryer Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
Model |
FWGZ800 |
FWGZ1000 |
FWGZ1200 |
FWGZ1500 |
FWGZ2000 |
FWGZ2200 |
Power (KW) |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
Capacity(T/H) |
0.5-0.7 |
0.7-0.9 |
1-1.2 |
1.2-1.7 |
1.7-2.2 |
2.2-3 |
Drum Diameter (mm) |
800 |
1000 |
1200 |
1500 |
1800 |
2000 |
Drum Length (mm) |
8000 |
10000 |
11000 |
11500 |
16000 |
18000 |
Air fan power (KW) |
5.5 |
7.5 |
11 |
18.5 |
22 |
30 |
Air lock power (KW) |
0.55 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Cyclone diameter(mm) |
600 |
800 |
1000 |
1200 |
1000 |
1200 |
Supporting Cyclone quantity |
1 |
1 |
1 |
1 |
2 |
2 |
Technical parameters of three layers Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
Model |
MGZG1600 |
MGZG1800 |
MGZG2100 |
MGZG2400 |
MGZG2800 |
Power (KW) |
5.5 |
8 |
15 |
22 |
30 |
Capacity(T/H) |
1-1.5 |
1.5-2.5 |
2.5-3.5 |
4-5 |
6-8 |
Drum Diameter (mm) |
1900 |
2100 |
2200 |
2900 |
3500 |
Drum Length (mm) |
8000 |
9000 |
10000 |
12000 |
16000 |
Air fan power (KW) |
15 |
30 |
55 |
75 |
90 |
Air lock power (KW) |
1.1 |
2.2 |
3 |
5.5 |
7.5 |
Hourly stove heat (Kcal) |
900 |
1200 |
1800 |
3000 |
5000 |
Cyclone diameter(mm) |
1000 |
1100 |
1200 |
1300 |
1300 |
Supporting Cyclone quantity |
1 |
2 |
4 |
4 |
6 |
Packaging & shipping of Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
Packaging in container, transport by sea

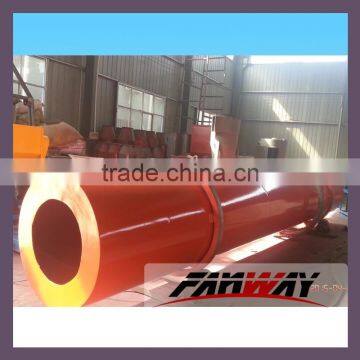

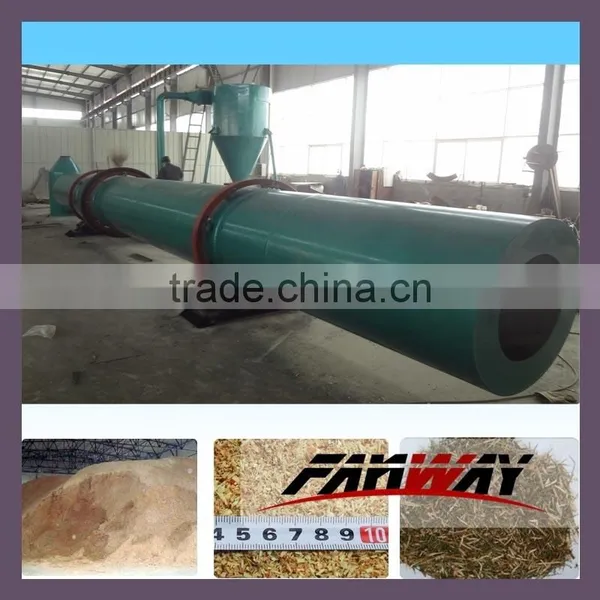

Delivery photos of Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
Exported countries of Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
1, Help you to choose suitable Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine
2, Design Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine according to your special requirements;
3, Answer your questions and give your detailed explanation timely and effectively;
4, After you confirm the order, if we have the right Dryer in stock, we will arrange delivery immediately. If not, we will arrange production for you at once,
5, Assist to draft the construction scheme and detailed process
6, For the installation of the Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine , we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators, if you have any questions for the charcoal briquette machines just let me know feel free, by email, phone, whatsapp, wechat etc, we will reply you in shortest time! Fanway Machinery will always together with you and never let you down!
Fanway Factory:
ZHENGZHOU FANWAY MACHINERY MANUFACTURING CO.,LTD is the qualified pellet machinery manufacturer which has devoted in developing, designing and manufacturing top quality pellet making equipment. Engineers research and experiment pellet mill and pellet plant design; skilled labor assembly machines: feed pellet mill, wood pellet mill, fish feed pellet machine, hammer mill, feed mixing machine, Industrial Rotary Dryer/Wood Chips Rotary Dryer/ Rotary Drum Dryer's Price
, fish feed pellets cooling machine, pellets packaging machine, etc.
Furthermore our experienced and professional Rotary Drum Dryer's Price/Used Drum Sand Dryer/Wood Dryer Machine project consultants can offer you turnkey wood pellet plant solution, animal feed pellet plant solution, fish feed pellet plant solution as well as pellets production solution.
