High Yield Palm Shredder / Coconut Fiber Making Machine

High Yield Palm Shredder / Coconut Fiber Making Machine photo-1

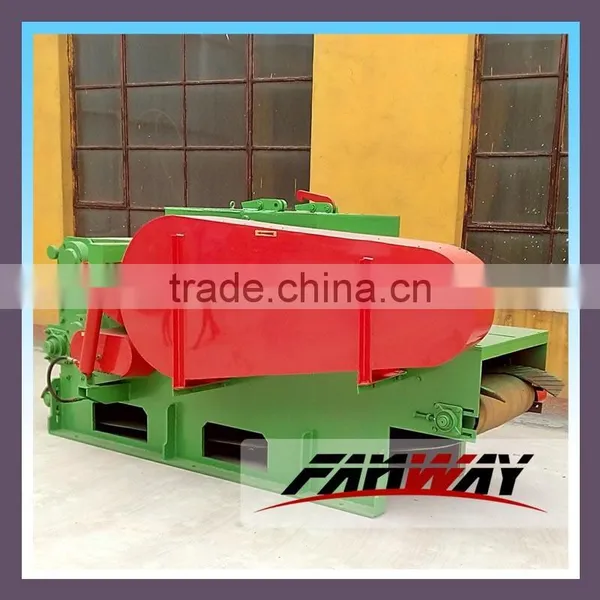

High Yield Palm Shredder / Coconut Fiber Making Machine photo-2

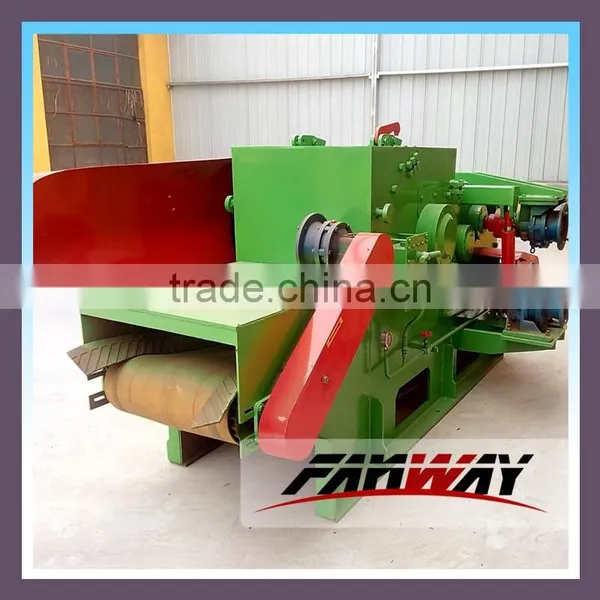

High Yield Palm Shredder / Coconut Fiber Making Machine photo-3

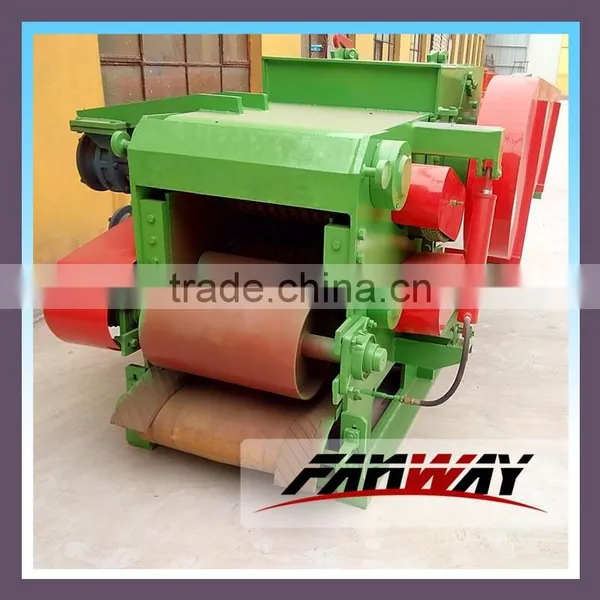

High Yield Palm Shredder / Coconut Fiber Making Machine photo-4
US$ 10,500 - 11,750 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Fanway
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Fanway
Model Number FWP-315
Voltage 380V or customizable
Power(W) 45KW
Dimension(L*W*H) 2700x1800x1400mm
Weight 3.8t
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

High Yield Palm Shredder / Coconut Fiber Making Machine

Product Description

Coconut fiber shredder is an equipment to process palm fruit or coconut shell into palm fiber. It is one key machine of EFB pellet plant and can directly crush the fresh EFB into 10~30mm length fiber. The output fiber could be easily dried and fine crushed in the following EFB pellet processing, which guarantees the high quality of the final EFB pellets products.

High Yield Palm Shredder / Coconut Fiber Making Machine



Parameter of Coconut Fiber Shredder

Model

Capacity Power Inlet Size Dimension Weight
FWP-313 1-3T/H 30KW 360*180MM 2700*1700*1300MM 2.9T
FWP-315 3-5T/H 45KW 400*170MM 2700*1800*1400MM 3.8T
FWP-316 6-8T/H 55KW 540*240MM 2800*2100*1550MM 4.6T
FWP-318 12-15T/H 110KW 680*300MM 3500*2180*1800MM 8.32T
FWP-3113 20-35T/H 220KW 700*350MM 3850*2448*2050MM 13.2T
NOTE: The capacity is different according to different moisture of raw material.
High Yield Palm Shredder / Coconut Fiber Making Machine



Raw Material

Coconut fiber shredder can process the PKS palm kernel shell, EFB palm empty fruit punch, Coconut shell, palm tree bark etc.. The raw material can be wet.

High Yield Palm Shredder / Coconut Fiber Making Machine



Structure Advantages

One complete set of coconut fiber shredder includes: 1*Feeding conveyor, 1*Shredder machine with hydraulic system, 1*Discharge belt conveyor, 1*Electric control cabinet.
Wearing Spare Parts: blade, sieve plate, belt

High Yield Palm Shredder / Coconut Fiber Making Machine

Advantages of Coconut Fiber Shredder
1. Adopting the double roller feeding system, the coconut husk shredder machine has a higher efficiency than the common one.
2. The shredder body is made of high strength steel, firm, shock-resistant, with less noise.
3. The blades are made of super alloy steel which is sharp enough to process palm or coconut fiber.
4. With the hydraulic buffer system, the maintenance of the shredder machine is simple.
5. The inlet hole size can be widen according to clients' request.
6. The best sieve hole diameter of sieve plate should be 18-22cm for the oil palm empty fruit punch (EFB).
7. The hydraulic system can be made to manual type or electric type.



Final Products

The size of final fiber of palm and coconut: 10-30mm Length
Application of short fiber: The final products can be used as fuel directly, or processed into ferterlizer, biomass pellets, ropes, mattress and so on.

High Yield Palm Shredder / Coconut Fiber Making Machine



Packaging & Shipping

 The coconut fiber shredder is with large, which will be loaded into container directly. It will be fixed into the container to ensure safe shipment.

High Yield Palm Shredder / Coconut Fiber Making Machine



Company Information

Fanway Machinery is the professional manufacturer which has devoted in developing, designing and manufacturing top quality pellet making equipment. Engineers research and experiment pellet mill and pellet plant design; skilled labor assembly machines: pellet mill, pet & fish feed extruder, hammer mill, mixer, dryer, cooler, packaging machine, etc.
Furthermore our experienced and professional pellet plant project consultants can offer you turnkey wood pellet plant solution, animal feed pellet plant solution, fish feed pellet plant solution as well as pellets production solution.

High Yield Palm Shredder / Coconut Fiber Making Machine



FAQ

1. What is the efb shredder?
The shredder is to process palm fruit or coconut shell into palm fiber, so that it can be used for power plant,
ferterlizer line, fuel pellet line etc..

2. How long of the fiber after shredder?
The final fiber after shredder is about 10-30mm. If you need the size less than 10mm, then a efb crusher is
needed after shredder.

3. Is it ok to process efb with high moisture?
Yes, of course. It can process high moisture efb.

4. What capacity of shredder do you have?
The smallest capacity is 1-3t/h, then 3-5t/h, 6-8t/h, 12-15t/h, 20-35t/h. And if you need higher capacity, the
machine can be made to order?

5. Do you have blade sharpener for the blades of shredder?
Yes, we have manual sharper and electric manual sharper.

6. How can we install the machine after we receive?
We will send you service manual after placing an order. And there
