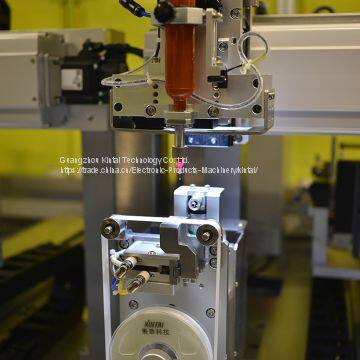

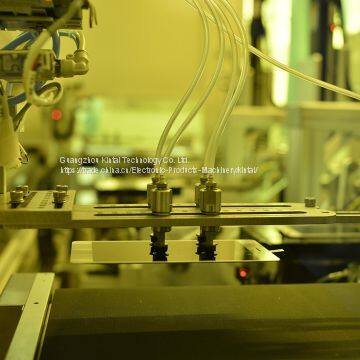

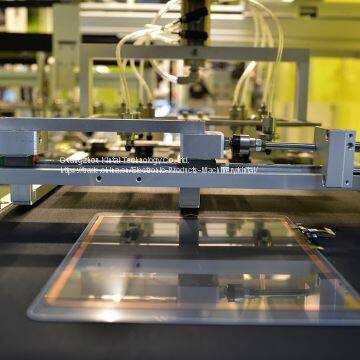

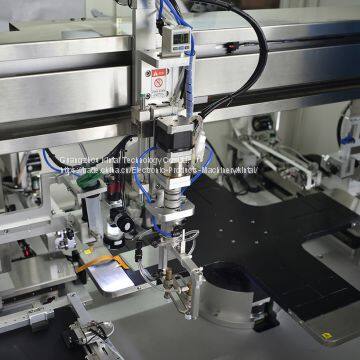

1. Automatically dispense FPC protective adhesives on LCD display modules
2. Contact and non-contact dispensing modes optional
3. CCD visual intelligent positioning ensures fast and accurate alignment
4. Fluids suitable for dispensing: Silicone Gels, UV-cure Adhesives, epoxy resin……
5. In line design integrates front-back sides ofthe assembly line, thus realize automatic loading and unloading
6. Compatible with a wide range of equipment
7. Patented intelligent software of sealing make debugging easy and convenient
8. Patented designs simplify operation processes and improve reliability
Parameters:
1. External dimensions: L1280 * W1220 * H1720mm
2. Power consumption: 2.5KW 15A
3. Power supply: single phase AC220V，50Hz
4. Pneumatic supply : positive pressure 0.5~0.7MPa vacuum pressure- 84 ~ - 101KPa
5. Workpiece size and precision range
1) Glass size（L1*W1 ）：20mm*15mm~ 90mm*60mm
2) FPC size: FPC length L2≤90mm
FPC width W2 cannot exceed more than 10mm of the glass width, when lift up, dropping part shall not exceed 50mm
3) Module thickness: ≥0.6MM
4) Repeatability Accuracy: +/-0.1mm
6. Fluid dispensed: UV-cure Adhesives ( viscosity ≤8000 CP）
7. Dispensing speed:15-40MM/S (adjustable upon dispensing effect)
8. UV-cure System ( point light)
1) Max. power: light intensity 2000Mw/cm2
2) Lamp’s working lifetime: 2000Hour
3) Lamp power: 200W
4) Cure range:50mm*2mm
9. Repeatability Accuracy: +/-0.1mm
10. Positioning mode: CCD visual positioning
