22kw 2000kg per Hour Electric Maize Flour Hammer Mill

22kw 2000kg per Hour Electric Maize Flour Hammer Mill thumbnail-1
22kw 2000kg per Hour Electric Maize Flour Hammer Mill thumbnail-2
22kw 2000kg per Hour Electric Maize Flour Hammer Mill thumbnail-3
22kw 2000kg per Hour Electric Maize Flour Hammer Mill thumbnail-4
22kw 2000kg per Hour Electric Maize Flour Hammer Mill thumbnail-5
22kw 2000kg per Hour Electric Maize Flour Hammer Mill photo-1

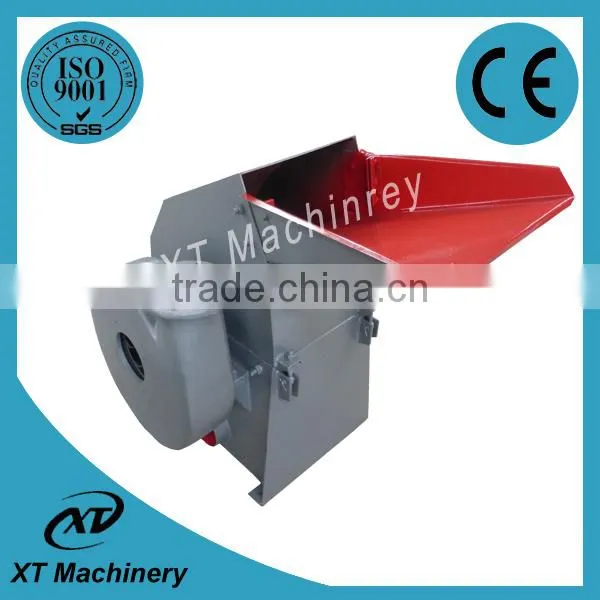

22kw 2000kg per Hour Electric Maize Flour Hammer Mill photo-2

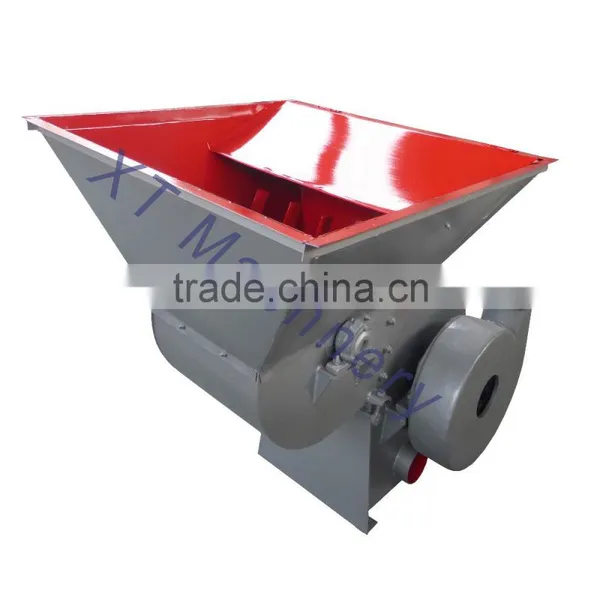

22kw 2000kg per Hour Electric Maize Flour Hammer Mill photo-3

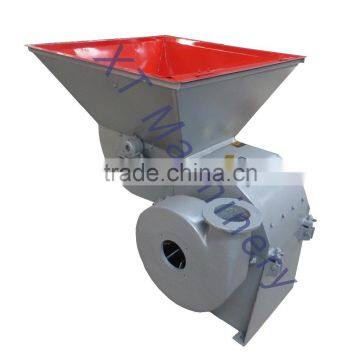

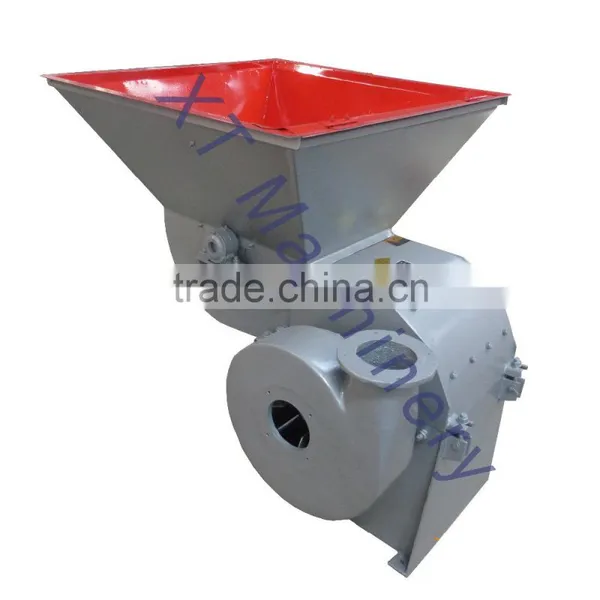

22kw 2000kg per Hour Electric Maize Flour Hammer Mill photo-4

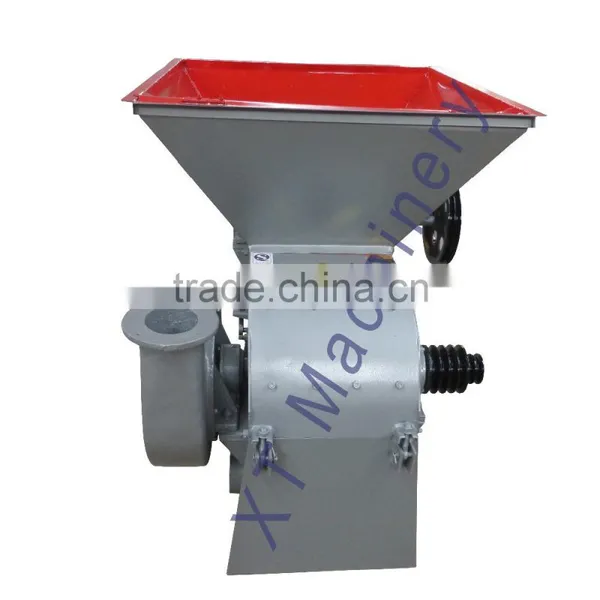

22kw 2000kg per Hour Electric Maize Flour Hammer Mill photo-5
US$ 1 - 999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
XT Machinery
Contact Supplier Request Quote Chat Now
Xinxiang Xingtian Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name XT Machinery
Model Number 9FQ-50-40
Type Mill Machine
Voltage 380V 50HZ 3phase
Power(W) 22kw
Dimension(L*W*H) 1100*930*1030mm
Weight 275 kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

22kw 2000kg per hour electric maize flour hammer mill

  22kw 2000kg per hour electric maize flour hammer mill

Description

22kw 2000kg per hour electric maize flour hammer mill operate on the principle that most materials will grind or crush upon impact with the hammers or blades. The material is feed into a hammer mill from the top through an automatic rotary feeder into the grinding chamber.



The grinding chamber of hammer mill is lined with serrated wear plates, which protects the body from wear and tear. The materials are contacted by a series of rotating, swing and dynamically balance blades / hammers. The material is ground by repeated contact with these hammers / blades, contact with the serrated wear plates of the grinding chamber, and particle to particle contact.



The material remains in the grinding chamber until it is suitably sized to pass through the perforated screen that covers the bottom half of the grinding chamber



22kw 2000kg per hour electric maize flour hammer mill

Features



1.Compact design with high production efficiency, easy operation and maintenance;

2.Quenched manganese steel hammers with hardness HRC56-62 ,shows excellent wear-resistance;

3.Upper and lower housing made from cast iron or carbon steel for long service life;

4.Different mesh screens available

5.Electric motor or engine powered







22kw 2000kg per hour electric maize flour hammer mill



                                                                                    casted Upper and lower hammer mill housing



Application

22kw 2000kg per hour electric maize flour hammer mill is widely uesd in livestock farm, feed processing plant, Ethanol plant and many industries to grind:



1. Roughages

     stalks of rice, wheat, corn, sorghum, oat and bean

     vine and stem of tuber crops

     corn cobs

     husks and shells

     hay



2. Concentrates such as corn/maize, wheat and most kernels



3.Others:

   Coal
   Biomass & Biofuels
   Crab, Clam & Oyster Shells
   Salt Cake

   Waste papers  and more...



Why PTO hammer mill?



A power take-off (PTO) is any of several methods for taking power from a power source, such as a running engine, and transmitting it to an application such as an attached implement or separate machines.



Voltage in countries differ from one another, or not accessible for some regions. Maize flour hammer mill can be driven by a electric motor or an engine for your choice.





Particle Size Refference

22kw 2000kg per hour electric maize flour hammer mill

22kw 2000kg per hour electric maize flour hammer mill

Parameter



Model

Weight

(KG)

Dimension

(MM)

Match Power

Hammer

Qty

Screen Mesh

(MM)

(KW)

(HP)

9FQ36

85

900*750*1070

5.5-7.5

8-10

12

0.5-5

9FQ40

160

945*835*768

7.5-11

10-15

12

1.2-8

9FQ42

125

730*650*920

11-15

15-20

16

1.2-20

9FQ50

280

1150*1200*1090

11-15

15-20

16

1.2-20

9FQ50-40

275

1100*930*1030

22-37

     30-50

24

1.2-30

9FQ50-60

380

1157*1355*1030

37-45

 50-60

36

1.2-30



Output



Model

Output (kg/h)

Corn kernel

Corn Straw

Peanut shell

Bean Stalk

9FQ36

500-600

80-150

300-350

130-230

9FQ40

800-1000

80-150

300-350

130-230

9FQ42

800-1000

100-200

400-500

200-250

9FQ50

1000-1200

150-250

500-600

200-300

9FQ50-40

2000-2500

370-440

900-1100

460-550

9FQ50-60

2500-3000

800-1200

1100-1500

900-1125



Above output refers to water content of materials less than 14% with 2mm screen mesh



Output may vary with screen mesh



Package

 22kw 2000kg per hour electric maize flour hammer mill

More Product

22kw 2000kg per hour electric maize flour hammer mill























Click here see 9FQ-36 series Hammer Mill

22kw 2000kg per hour electric maize flour hammer mill



























Click here see 9FQ-40 series Hammer Mill

22kw 2000kg per hour electric maize flour hammer mill























Click here see 9FQ-42 series Hammer Mill

22kw 2000kg per hour electric maize flour hammer mill

Click here see 9FQ-50 series Hammer Mill
