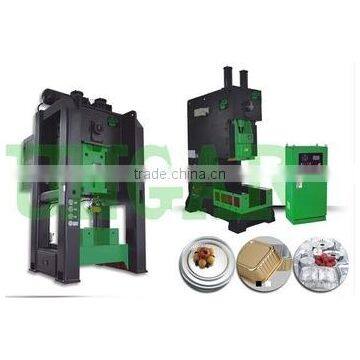

UNGAR Aluminum Foil Food Container Machine
(UN-63T)
Advantages:
- Welded body with steel plate and high intensity.
Main motor is made by Siemens.
Adopts combined pneumatic friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide;
Equipped with hydraulic overload protecting device.
Electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device
Detailed Information:
| Item No. | UN-63T |
| Nominal Force | 630KN,C-Type Press |
| Stroke Time | 20-70 Times/Min |
| Slide Block Stroke(Optional Size) | 200/220/240/260mm(Option) |
| Max. Height of Mould Installation | 420/450mm |
| Height Adjustment for Mould | 80mm |
| Distance from Slid Block Center to Body | 450mm |
| Adjustable Work Block Dimension × 2 | 900(L)×200(W)×300(H)mm×2 |
| Dimension of Slid Block Bottom Surface | 360×480mm |
| Hole Dimension Slid Block Bottom Surface | 320×380mm |
| Size of Centering Hole(Diameter × Depth) | Ø50×60mm |
| Press Machine Type | Electric Shut Hight Adjustment |
| Press Net Weight | 8,000kg |
| Voltage & Frequency (Optional) | 380V-50/60Hz-3 Phase |
| Total Power | 11KW |
| Press Dimension (L×W×H) | 2100×1100×3500mm |
UNGAR Machinery (Shanghai) Co., Ltd is an Austrian enterprise established in 2009, supplying high productive multi-cavity moulds and machines, which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap press and additional equipments.
UNGAR complete integrated production line has been specially designed and developed for the production of aluminum foil food container, plate and household foil rolls.
UNGAR Machinery (Shanghai) Co., Ltd also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
