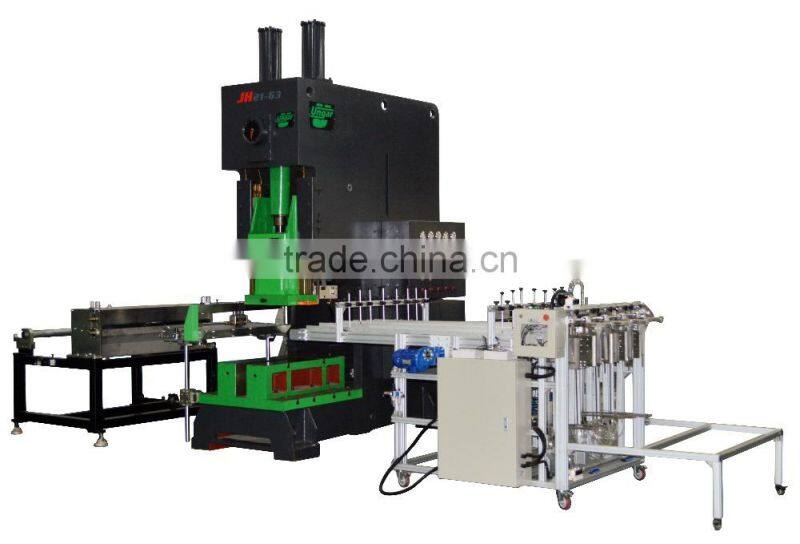

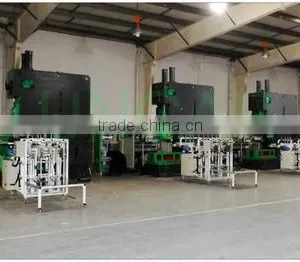

Aluminium Foil Container Making Vertical Press Machine(UN-55T) 550KN C-Type Automatic Press
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Metal Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shanghai UNGAR Aluminium Foil Container Making Machine Vertical Press Machine (UN-110T) 1100KN H-Type CNC Control AutomaticUS$ 10,000 - 100,000MOQ: 1 Set -
UNGAR Aluminium Foil Container Making Vertical Press Machine (UN-80T) 800KN H-Type Automatic PressUS$ 10,000 - 100,000MOQ: 1 Set
-
High Speed Productive EU Standards Aluminium Foil Container Making Vertical Press Machine (UN-80T) Austrian TechnologyUS$ 10,000 - 100,000MOQ: 1 Set
-
Automatic Press Machine Machine ManufacurersUS$ 1,000 - 100,000MOQ: 1 Set
-
Aluminum Foil Lid Punching Machine Food PressUS$ 1,000 - 100,000MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Usage
Metal Forming Machine
Place of Origin
Shanghai, China
Brand Name
UNGAR
Model Number
UN-55T
Voltage
380V, 50/60Hz, 3 Phase
Power(W)
7.5KW
Dimension(L*W*H)
1600x1000x2500mm
Weight
5000KG
Certification
EC ISO SGS
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

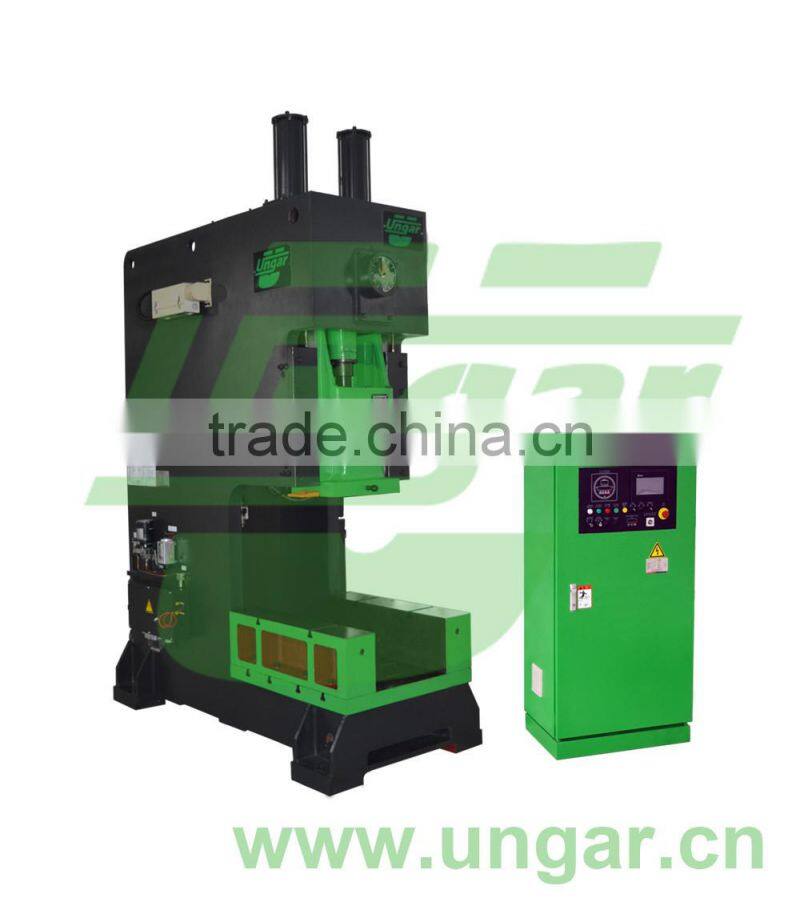

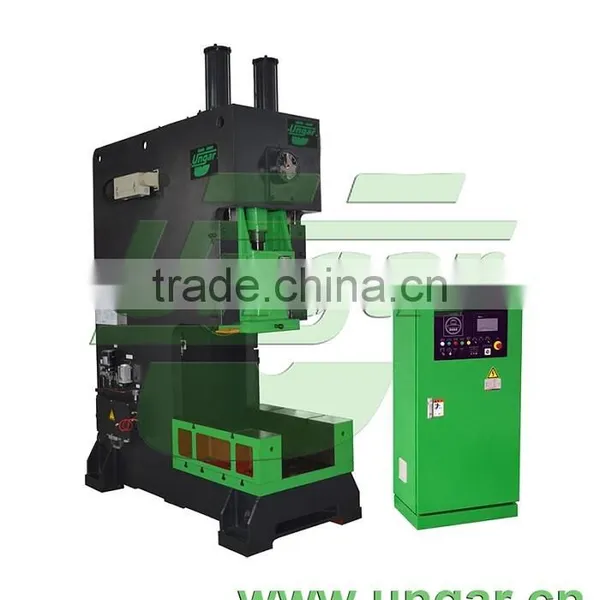

Aluminum Foil Food Container Vertical Press (UN-55T)
Advantages:
- Welded body with steel plate and high intensity.
- Main motor is made by Siemens.
- Adopts combined pneumatic friction clutch and brake.
- Cluster gear adopts the flooding oil lubrication.
- Six-face rectangle lengthen guide;
- Equipped with hydraulic overload protecting device.
- Electric shut height adjustment with digital display.
- Equipped with lifting balance cylinder.
- Duplex valves imported.
- Electric compelling grease lubrication system.
- Balancing cylinder adopts manual lubrication system.
- One set of blowing device
| Item No. | UN-55T |
| Nominal Force | 550KN,C-Type Press |
| Stroke Time | 20-70 Times/Min |
| Slide Block Stroke(Optional Size) | 200/220mm (Option) |
| Max. Height of Mould Installation | 350mm |
| Height Adjustment for Mould | 80mm |
| Distance from Slid Block Center to Body | 360mm |
| Adjustable Work Block Dimension × 2 | 720(L)×200(W)×300(H)mm×2 |
| Dimension of Slid Block Bottom Surface | 225×400mm |
| Hole Dimension Slid Block Bottom Surface | 200×360mm |
| Size of Centering Hole(Diameter × Depth) | Ø50×60mm |
| Press Machine Type | Electric Shut Hight Adjustment |
| Press Net Weight | 6,000kg |
| Voltage & Frequency (Optional) | 380V-50/60Hz-3 Phase |
| Total Power | 7.5KW |
| Press Dimension (L×W×H) | 1600×1000×2500mm |
UNGAR Machinery (Shanghai) Co., Ltd is an Austrian enterprise established in 2009, supplying high productive multi-cavity moulds and machines, which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap press and additional equipments.
UNGAR complete integrated production line has been specially designed and developed for the production of aluminum foil food container, plate and household foil rolls.
UNGAR Machinery (Shanghai) Co., Ltd also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
