Energy-saving wood crusher machine
1.Brief introduction of wood crusher:
wood crusher(sawdust grinder,sawdust machine) is a special equipment of crushing wood, timeber, logs, branch and other biomass mateiral to product sawdust,wood powder .It is developed according to the need of industrial production and after a period of research.
This wood crusher has the features of rational design ,compact structure,safety,durability,high efficiency.It gets good effect after applied in some fileds.The whole set of equipment just uses one motor to drive,low noise,simple structure,compact layout,low price,stable,less consumption,high yield,good quality wood products,low processing costs.
The wood crusher and product
2.Working principle of wood crusher:
This new type wood crusher uses a blade cut and high-speed airflow impact,it has the function of collision and double crusher,at the same time it can finish the micro-separation processes.In the process of crushing,the rotor causes a high-speed airflow,it rotating with the cutting blade,the material is accelerated in the flow,and impacted repeatedly,at the same time,the material are gotten double smash,accelerate the crushing rate of sawdust and wood powder..

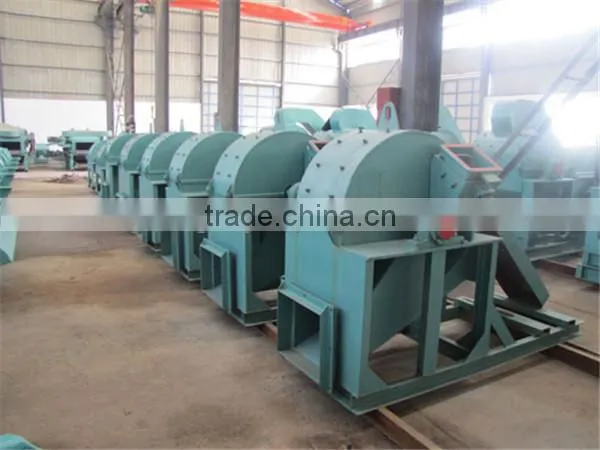

The wood crusher at our factory
3.Main purpose of wood crusher:
wood crusher puts chipping and crushing as a whole,it can cut the branch and limb which the diameter between 1mm to 300mm,mainly used in process pine,miscellaneous tree,poplar,fir,bamboo etc,it is more suitable for processing the sawdust of edible mushroom culture.At the same time,it can chip the thatch,corn stalk,sorghum stalk and other cellulosic materials.It also can used as the raw material of strain,chipboard,sawdust board.It is suitable for flow work ,and widely used in the preparation process of small and medium chipboard and fibreboard factory or individual household who wants to produce wood chips.
4.Equipment composition of wood crusher:
The new type high efficient wood crusher is consist of chipping device,crushing equipment.In addition,it can add one cutter to crush bark stalk,straw,crops etc.,multi-purpose.
The detail information and parts of the wood crusher
5.Technical parameters of wood crusher:
Model | DWS-500 | DWS-600 | DWS-800 | DWS-1000 |
Diameter of blade(mm) | 500 | 600 | 800 | 1000 |
Quantity of crushing blade (pcs) | 12 | 32 | 42 | 52 |
Quantity of chipping blade(pcs0 | 4 | 3 | 4 | 4 |
Length of blade(mm) | 120 | 200 | 240 | 340 |
Diameter of oblique feeding port(mm) | 150*160 | 160*180 | 200*220 | 300*320 |
Spindle speed(r/min) | 1400 | 1400 | 1200 | 1000 |
Packaging of wood crusher
All our wood crusher are packaged by wooden box or according to your requirement.
Shipping of wood crusher
All mini type wood crusher are shipped after you first payment.
