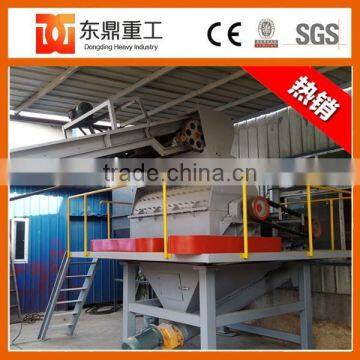

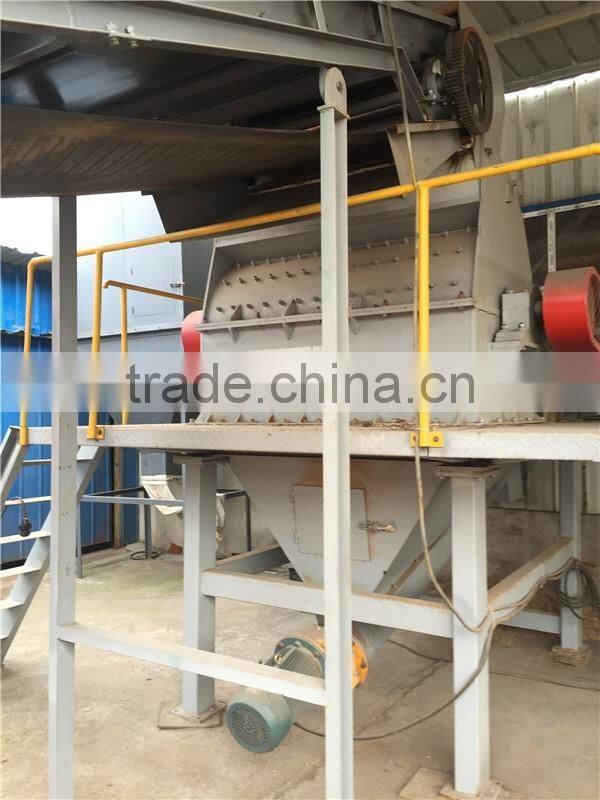

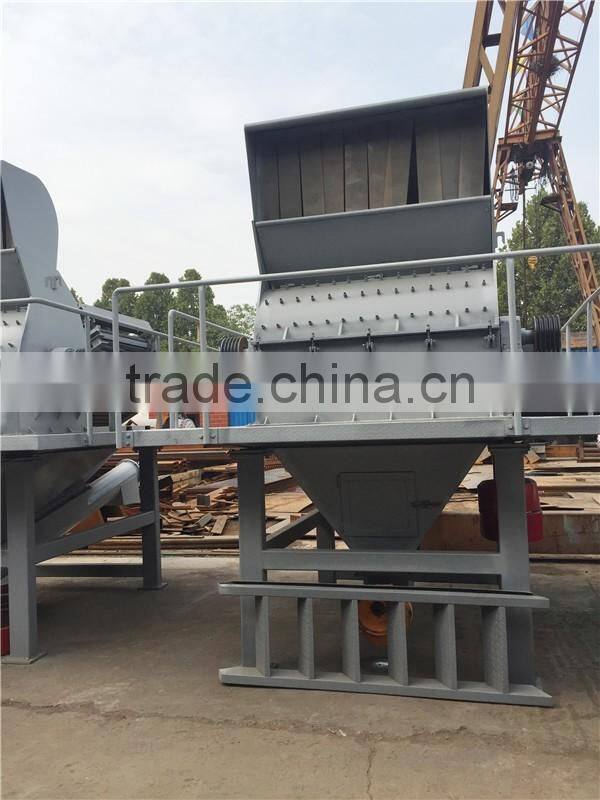

Wood hammer mill
adopts water cooling structure inside, avoiding the damage to machines of friction high temperature ,which is mainly use in wood factory,fodder factory, cultivation factory, organic fertilizer factory, Chemical industry and so on.
Features of wood hammer mill (wood chip crusher)
1.Built-in rotors,crushing no dead ends,finished products uniform.
2.Removable full operation easy door operation threats.
3.Collective embedded sealed completely avoid dust spill.Work environment clean.
4.Grinding can be general,but also for fine grinding and micro-grinding
Materials for large wood hammer mill (wood chip crusher)
wood chips, Rice straw, alfalfa, peanut husk, rice husk ,coffee husk, branch, thin wood board and other materials into particle or powder.
How to crush wood chips to wood sawdust ?
First ,We need to dry the wood chips by dryer or by sunshine make sure the moisture <25%,this is easy to crushed to sawdust shape.
Second, We need a wood crushing machine (Hammer type),wood chip crusher with hammers in the rotation plate,when motor rotation drive the spindle rotation,the hammers on spindle rotation and hit the wood chips in to small pieces,the hammers rotation and hit the wood chips one circle by one circle ,until the wood chips size get the standard of screen hole, then small pieces wood chips (sawdust) come out .

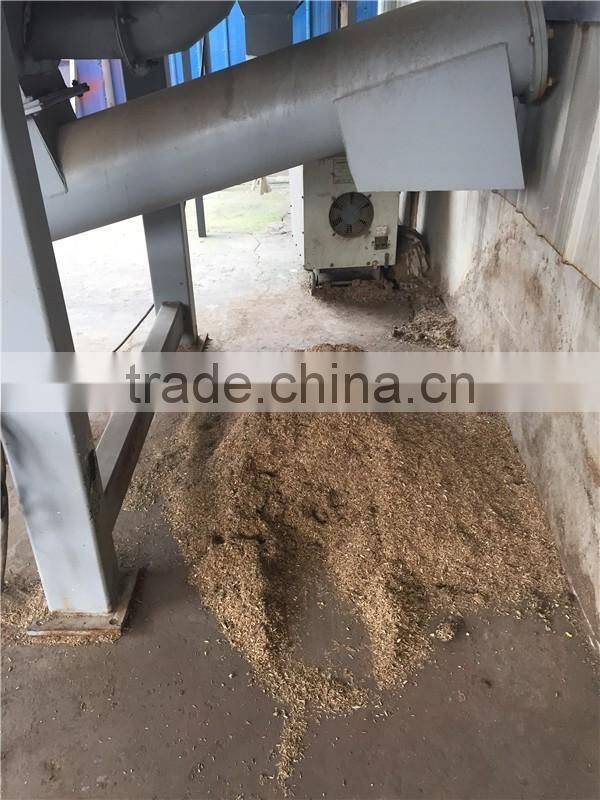

Wood Sawdust can be used to make wood pellets,sawdust briquette ,man-made board , also can used in Gasification station,etc.
Installation & Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Technology parameters of wood chips hammer mill
Name | Large sawdust making machine |
Model | DLFS1500 |
Input size | 1500×400mm |
Knife quantity | 60pcs |
Knife roller rotary speed | 2400r/min |
Finish chips | 3-30mm |
capacity | 5-8t/h |
Host Motor power | 55kwX2 |
Weight | 5500kg |
Outside dimension | 3150*3250*3350mm |

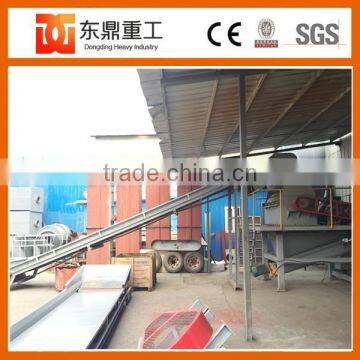

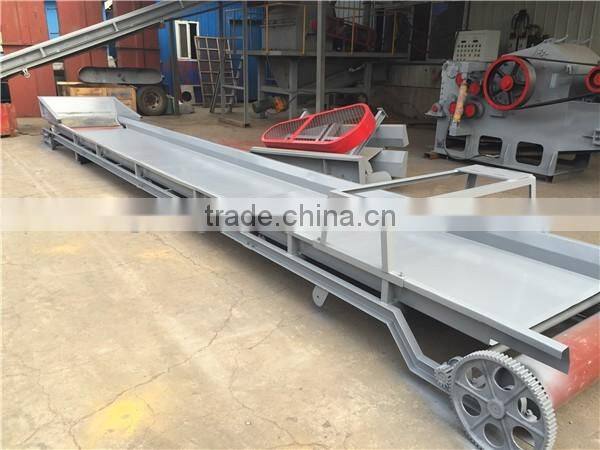

Feeding conveyor | Length:8000mm Width:1000mm Power:7.5kw |
Electric cabinet |
|
Box-type dust collector |
|
Standard equipped pipes |
|
Discharge conveyor | Host machine with screw discharge conveyor |
Packaging of wood hammer mill
All our wood hammer mill are packaged by wooden box or according to your requirement.The big quanitity order will use container to delivery.
Shipping of wood hammer mill
All wood hammer mill are shipped after we product well and get all the payment.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Pre-sales Service:
1. The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;
2. Based on our customers' request and budget, our experts make efficient, reliable solutions;
3. Before placing the order every customer has the chance to visit working machines or complete plant in the site;
4. We have a full set of testing equipment, to provide a good test environment.
After-sales Service:
1. Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers' plants;
2. Provide necessary training about machine daily maintenance to local workers ;
3. After-sales department has well-trained employees and professional installation engineers.
