6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service

Henan Dongding Heavy Industry Equipment Co., Ltd.
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service thumbnail-1
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service thumbnail-2
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service thumbnail-3
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service thumbnail-4
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service photo-1
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service photo-2
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service photo-3
6-8 Ton per Hour Silica Sand Rotary Drier/Silica Sand Drier Machine With Best Service photo-4
US$ 20,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjian Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Dongding Heavy Industry
Model Number DS silica sand drier machine
Voltage 380V
Power(W) 3-75kw
Dimension(L*W*H) Based silica sand drier machine
Weight 2.0-104.9t, 3-200 ton
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Explains:The silica sand rotary dryer is made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of silica sand, river sand,quartz sand,limestone slag, coal powder, slag, clay stone. This silica sand rotary dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.

The silica sand rotary dryer drying system drawing

6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service

silica sand rotary dryer is also called rotary drying machine. The main body is revolving cylinder with a small slope. It is composed of the revolving body, lifting board, driving device, supporting device, and seal rings etc, with the characteristics of reasonable structure, perfect in workmanship, high output, low energy consumption, and convenient operation.

6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service

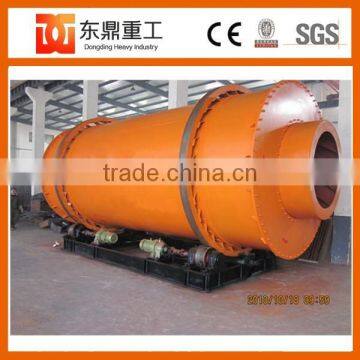

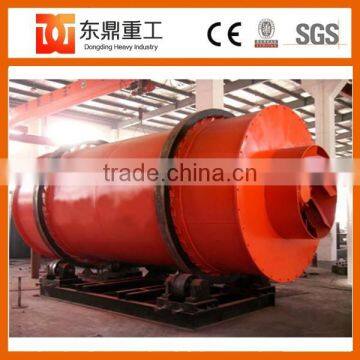

The silica sand rotary dryer at our workshop

 6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service

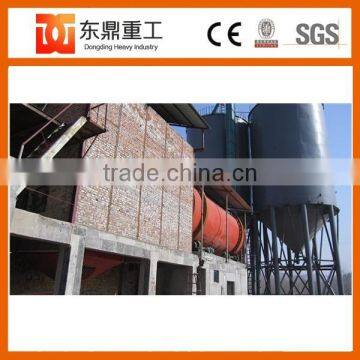

silica sand rotary dryer at working site

6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service

The technology Parameters of silica sand rotary dryer:



model

Capacity

( t/h)

Moisture after drying

Fuel consumption

(kg/ton)

motor(kw)

Weight( ton)

Φ 623

3-5

<0.5%

4-6

3×2

3

Φ 625

5-8

<0.5%

4-6

5.5×2

5

Φ 6210

8-12

<0.5%

6-8

7.5×2

10

Φ 6215

12-18

<0.5%

6-8

11×2

16

Φ 6220

18-22

<0.5%

8-10

15×2

22

Φ 6225

22-28

<0.5%

8-10

22×2

26

Φ 6230

28-32

<1%

8-10

30×2

30

Φ 6235

32-38

<1%

12-15

37×2

36

Φ 6240

38-41

<1%

12-15

55×2

42

Packaging & Shipping

  Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

Some case of our rotary dryer shipping to customer

6-8 ton per hour Silica Sand Rotary Drier/Silica Sand Drier Machine with best service

Company Information

 Henan Donging Heavy Industry Equipment CO.,LTD  is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.



As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass powder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
