Multi-funcation use dryer machine organic fertilizer and chicken manure rotary dryer
- 10 Set / Sets per Month
- Qingdao tianjin shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Dongding Heavy Industry | Model Number: | DZS organic fertilizer dryer | Voltage: | 220v/380v |
Power(W): | 3-75kw | Dimension(L*W*H): | Based | Weight: | 2000KG |
Certification: | ISO9001:2008 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Multi-funcation use dryer machine organic fertilizer and chicken manure rotary dryer
Oragnic Fertilizer Plant Raw material:
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2. Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,
Slaughterhouse Waste,Fish Market,Urine and dung of cattle,Pigs,Sheep,Chicken,
Ducks, Geese,Goat.etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue etc.
4. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, the sewer, etc.
The detail information parts and working site drawing of organic fertilizer dryer as below:
organic fertilizer dryer structure and working principle:
organic fertilizer dryer machine can be as high as 70% - 80% moisture content dung a direct drying to 8% of the safety storage moisture,The whole drying process in a closed system, thus reducing pollution to the environment during drying process.This chicken manuredrying system equipment mainly by the heat source, feeding machine, rotary dryer, the discharging machine, the material crushing plant, induced draft fan, discharger and distribution cabinets. The high humidity organic fertilizer after dewater then put into dryer machine.Uniformly distributed in the rotar dryer of the lifting plate used to moving cow dung, Material is evenly dispersed in drying machine with a good contact with hot air,this to speed up the drying heat transfer, mass transfer. In drying process,cow dung under the action of lifting palte (with a gradient) and hot air, move to the outlet of the dryer.

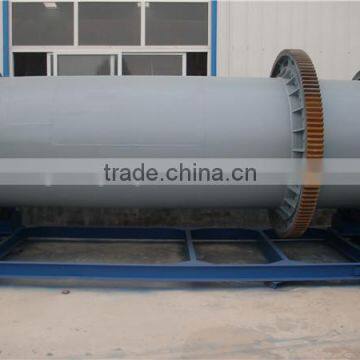

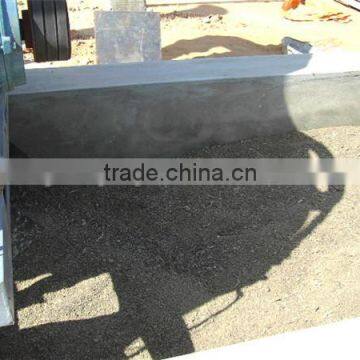

The organic fertilizer dryer at our factory and the working site at Africa
Main characteristics of organic fertilizer dryer machine:
1.organic fertilizer dryer machine production process: Our organic fertilizer dryer machine can drying moisture content 65-70% of fresh organic fertilizer after high temperature drying, disinfection, sterilization, decomposition processes become pure organic fertilizer organic fertilizer containing moisture below 8%.
anic fertilizer dryer high mechanization degree, larger production capacity, can work continuously 24 hours every day.
3.Our new type cow dung dryer with reasonable structure, simple, good material through the barrel resistance ,smooth operation, easy to operate.
4.organic fertilizer dryer less failure, low maintenance cost, low power consumption
5.Scope of application is wide, the uniformity of product drying is good
6.When drying also can achieve the purpose of sterilization and deodorization
The technology parameters of organic fertilizer dryer machine
type | DZS800 | DZS1000 | DZS1500 | DZS1800 |
data | Φ800×6m | Φ1000×6m | Φ1500×6.5m | Φ1.8×7m |
drying capacity | 500-800kg/h | 1000-1500kg/h | 1500-1800kg/h | ≥2500kg/h |
rotation speed&power | 3-4rmp,4kw | 3-4rmp,5.5kw | 3-4rmp,10kw | 3-4rmp,15.5kw |
crushing spindle speed&power | 150-250rmp,3kw | 150-250rmp,4kw | 150-250rmp,4kw | 150-250rmp,5.5kw |
fan power | 7.5kw | 11kw | 15kw | 18.5kw |
coal consumption | ≤70kg/h | ≤110kg/h | ≤170kg/h | ≤220kg/h |
electricity consumption | ≤10kw/h | ≤15kw/h | ≤20kw/h | ≤30kw/h |
floor area | ≥80m2 | ≥100m2 | ≥120m2 | ≥150m2 |
factory height | ≥3.8m | ≥4.2m | 5.5m | ≥5.5m |
dryer machinery weight | 4T | 6T | 12T | 19T |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,organic fertilizer dryer machine, cow dung dryer machine,poultry manure drying machine and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
If you have any need of organic fertilizer dryer machine,cow dung dryer machine, poultry manure dryer, please contact with us as below:
