Introduction of feed pellet machine
|
1)This machine is used to make pellet for animal feed, such as pig, cattle, sheep, rabbit, chicken, duck, fish. it also can make bio-mass material wood pellet for fuel. |
2)The two roller twirls continuously to press and grind the raw material. |
3)This pellet machine is small volume, save the electricity, low noise and can transmission feeding speed. |
4)Our pellet mill have CE,ISO certificate. |

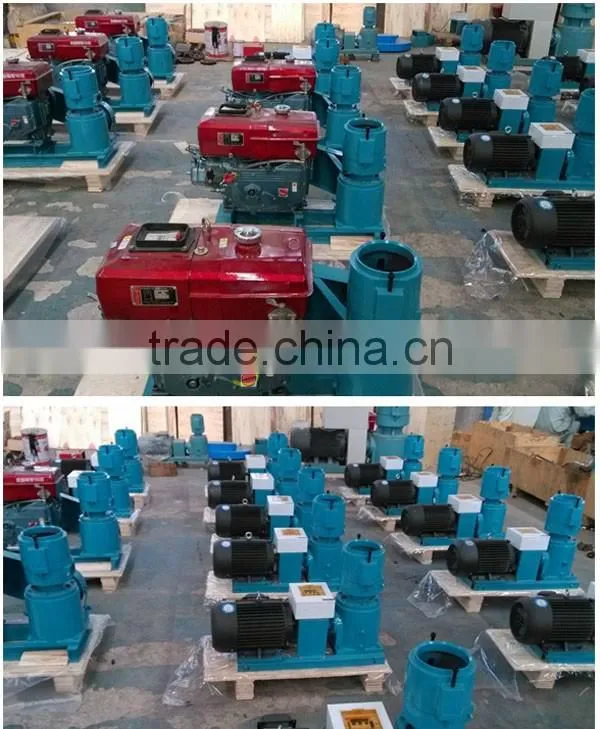

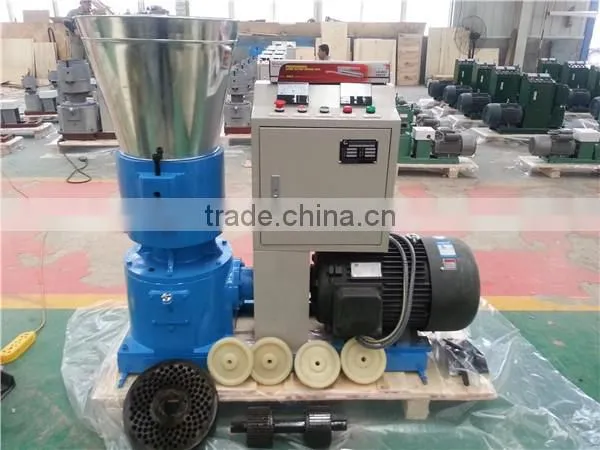

The feed pellet machine at our factory
The final product of feed pellet machine
in eroanThe raw material of feed pellet machine
|
1)It has wide range of materials, It can be grain like corn, wheat and the crushed waste from agriculture.such as sawdust, wood, straw, rice husk, bagasse, cotton stalk, peanut shell, bamboo, empty fruit branch, pulverized coal, waste paper, cottonseed skins, weeds, crop stalks and other plant wastes, especially low bonding and unformed materials and other can be making into biomass pellets without any additive. |
|
2)Requirements of the raw material size: 2~5 mm. moisture: 10-18%. |

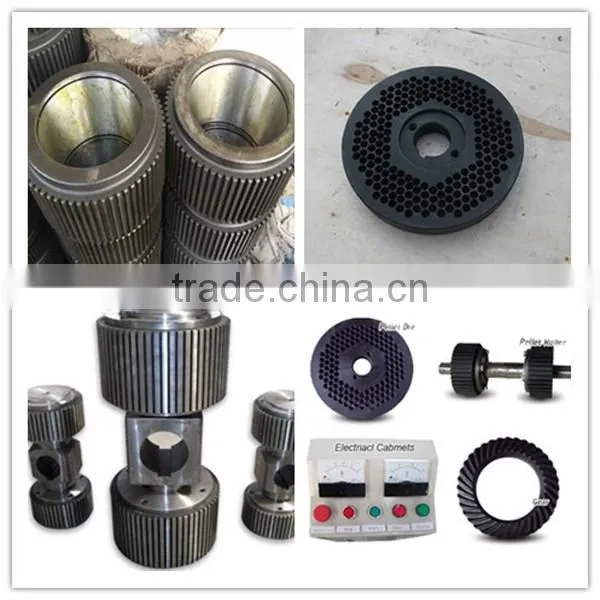

Some parts of pellet machine
The technology parameters of small bio wood pellet machine:
APPEARANCE |
DRIVEN BY |
MODEL |
POWER |
CAPACITY (kg/h) |
WEIGHT (nw/gw) |
PACKING SIZE (mm) |
|
Electric motor |
ZLSP-D 150B |
5.5kW |
50-100 |
95/110 |
800x450x700 |
ZLSP-D 200B |
7.5 kW |
80-120 |
200/230 |
1050x480x930 |
||
ZLSP-D 230B |
11 kW |
120-200 |
290/320 |
1180x540x1000 |
||
ZLSP-D 260B |
15 kW |
160-250 |
320/360 |
1240x540x950 |
||
ZLSP-D 300B |
22 kW |
250-400 |
350/380 |
1300x560x1100 |
||
|
Electric motor |
ZLSP-D 150C |
5.5kW |
60-110 |
105/125 |
1000x480x780 |
ZLSP-D 200C |
7.5 kW |
80-120 |
210x230 |
1050x550x830 |
||
ZLSP-D 230C |
11 kW |
120-200 |
290/320 |
1200x560x950 |
||
ZLSP-D 260C |
15 kW |
160-250 |
340/370 |
1240x560x1000 |
||
ZLSP-D 300C |
22 kW |
250-400 |
425/465 |
1300X620X1100 |
||
|
Diesel engine |
ZLSP-D 150A |
8HP |
50-100 |
180/220 |
100x500x750 |
ZLSP-D 200A |
15 HP |
80-120 |
210/240 |
1460x750x900 |
||
ZLSP-D 230A |
22 HP |
120-200 |
280/310 |
1560x850x1100 |
||
ZLSP-D 260A |
30 HP |
160-250 |
330/360 |
1200x500x1070 |
||
ZLSP-D 300A |
41 HP |
250-400 |
410-450 |
1220x600x1000 |
||
|
Gasoline engine |
ZLSP-150Q
|
7.5HP |
90-120 |
180-220 |
1000x500x750 |
|
PTO |
ZLSP-D 150P |
≥8 HP |
50-100 |
90-110 |
900x540x1020 |
ZLSP-D 200P |
≥15 HP |
80-120 |
130/150 |
1000x540x1020 |
||
ZLSP-D 230P |
≥22 HP |
120-200 |
175/200 |
1000x540x1020 |
||
ZLSP-D 260P |
≥33 HP |
160-250 |
235/255 |
1050x540x900 |
||
ZLSP-D 300P |
≥41 HP |
250-400 |
305/325 |
1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
