Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dongding Heavy Industry |
Model Number: | ZLSP-M 230B | Voltage: | 380V/220V | Power(W): | 11kw |
Dimension(L*W*H): | 1180*540*1000 | Weight: | 320kg | Certification: | CE ISO |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wood Pellet Mill Introduction

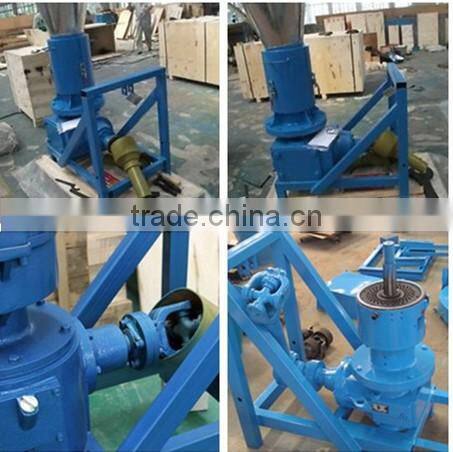

wood pellet mill is a kind of pellet making machine connected with a tractor and be powered by the tractor. This type wood pellet mill is a small pellet mill special designed for farm use.
Widely Application Wood Pellet machine
1.Since this pellet mill is suitable for farmers, so the raw materials for wood pellet mill are usually easy to get. The raw material such as Sawdust, shavings, rice husk, cotton stalk, cotton seed skins, weeds and crop stalks and other plant wastes can all be pelletized into high quality pellets by using the driven wood pellet mill.
2.The pellets made by the machine are mainly used as fuels for stove, furnace and other heating equipment. In addition, the pellet mill can also make pellets for animal bedding and animal feed.
Advantages of Wood Pellet Mill
1. With reasonable design and compact structure. The wood pellet mill is designed to be connected and disconnected easily.
2. Easy and convenient to use. Since the machine can connected with the tractor, so it is easy to move.
3. Low energy consumption and high efficient. Since the wood pellet mill is powered by the tractor, it can work continuously and use less energy. The driven wood pellet mill can make pellets 40-550 kg/h.
4. With a competitive price. Since the wood pellet mill is without power engine, so the price the lower and the farmers can take advantage of their tractors to be used as the power.
5. Can customized according your requirement. We have 8 different models of wood pellet mill in different size and production capacity, we can offer you pellet mill according to your requirement.
The technology parameters of small bio wood pellet machine:

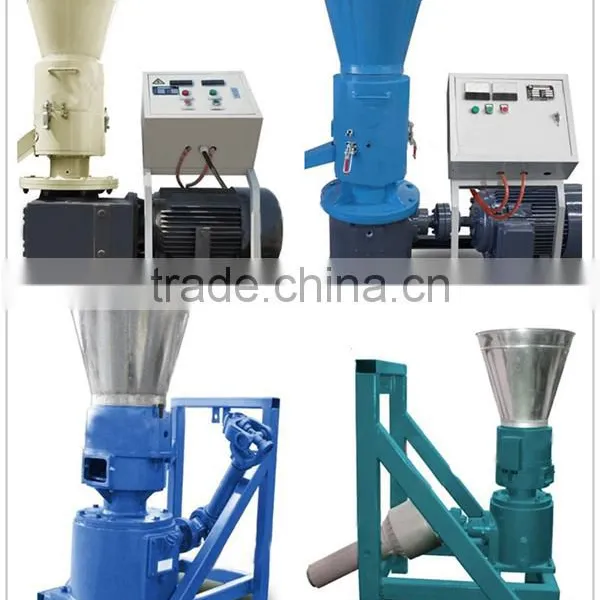

APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
| Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
| Electric motor | ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
| Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
| Gasoline engine | ZLSP-150Q
| 7.5HP | 90-120 | 180-220 | 1000x500x750 |
| PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply Vacuum dryer,rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
About the machine:
Q1. Does this machine can make wood pellets?
Answer: This machine can make both wood pellets and feed pellets. When making feed pellets, it performs better and the capacity is bigger.
Q2. What are the spare parts for this series pellet machine?
Answer: The spare parts for this machine are one die and two rollers.
Q3. How often should I change the spare parts?
Answer: The long life time of the die and rollers is 1500 hours at least. It needs to change the easy wear parts every five months. If maintained and used well, the parts can be used about EIGHT months or more.
Q4. How often would the machine need to be serviced?
Answer: Every three months is the best for the machine.
Q5. Does the raw materials require any additives to aid in the forming of the pellets?
Answers: It doesn't need to add any additives to aid in the forming of pellets. The only thing you need to do is to control the moisture of the raw materials properly.
