Help CenterHigh Efficiency Biomass Pellet Burner/wood Pellet Burner Replace Tradition Coal Fired Bioler
Related Products
-
Environmental Protection Biomass Pellet Burner Connect With Asphalt Heating EquipmentUS$ 8,400 - 8,400MOQ: 1 Set -
Multi-funcation Biomass Pellet Burner/rice Husk Pellet Burner With Low CostUS$ 8,400 - 8,400MOQ: 1 Set
-
Low Coast Biomass Wood Shaving Pellet Burner / Wood Chips Burner for SaleUS$ 8,400 - 8,400MOQ: 1 Set
-
Automatic Feeding High Efficiency Burner Pellet / Biomass Pellet Burner / Wood Pellet Burner With High EfficiencyUS$ 8,400 - 8,400MOQ: 1 Set
-
Newest Technology Standard Save Energy Biomass Pellet Burner for Steam BoilerUS$ 8,400 - 8,400MOQ: 1 Set
Our pellet burner meets international standard, professional and save consumption , doesn’t have pollution Pellet burner environment protection , should use biomass as energy.
Biomass pellets are no pollution and renewable, also contains animal and plant waste organic.
Each kind biomass has energy, biomass energy is huge, biomass pellet burner can make full use of sawdust, bran, rice husk etc , fully burning. During operating of biomass pellet burner professionally study various pellet burners feeding , discharging, burning process and develop new technology biomass pellet burner, which can professionally to burn various pellets without any slag-bonding and improve many advantages according to common problems during operating.
1. The pellet burners is water-cooled, non-pressure, device before use,
please carefully read and understand all the contents of this manual.
2.The pellet burner must be equipped with a suction fan when the burner to provide
heat to an enclosed space (such as boilers, dryers, etc.), you must first start before ignition fan, otherwise there is a risk of explosion.
3.After inspection, rotating flexible transmission parts, various connections are securely tightened before start trial operation.
4.After burner operation, do not touch the touch the hot parts of the crater extends into the housing, etc.5. Beware of electrocution motor terminal site
6.The motor ground wire must be installed in order to avoid accidents
7.Machine installation site, the equipment should be repeated grounding
8. Note that the same motor rotation direction and identity
9.At work, if abnormal noises and chain row stuck phenomenon, should immediately stop check troubleshooting.
10.Then the chain ranking into slower, lower the feeder speed.
The detail parts of wood pellet burner

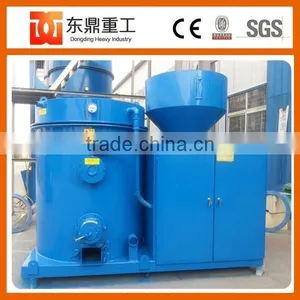

The behind side of biomass wood pellet burner

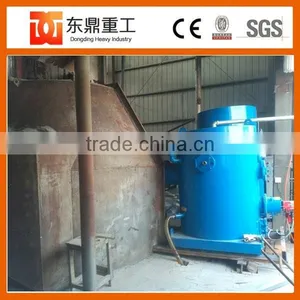

The wood pellet burner testing in our factory
The technology parameter of wood pellet burner
Item model | Feeding conveyor motor power(kw) | Motor power of feeder(kw) | Air fan power(fan) |
DL-LK1.0 | 1.1 | 1.1 | 2.2 |
Size of main burner(mm) | Sawdust consumption (kg/h) | Natural gas consumption (Nm3/h) | Heating valve (kcal/h) |
2400X2200X1550 | 155 | 75 | 600,000T |
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding heavy equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technologyprofessional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
As a professional manufacture,we are also supply rotary dryer, wood pellet machine, biomass pellet machine, coal gasifier,sawdust burner,wood/biomass pellet burner, wood/biomass prowder burner,biomass gasifier,wood chipper,wood hammer mill and other machine.If you have any need of those machine, please contact with us.
