500 ton per day Hot Sale Lignite Rotary Dryer Henan manufacturer
1. Working principle of lignite coal dryer
When the lignite dryer machine on operation, the belt conveyor feeding materials into feeding hopper. Materials go to the lower side by gravity when the lignite coal dryer’s barrel rotates. When the material inside the drum fluidization of lignite coal dryer , boiling hot wind and touch it thoroughly drying. The auto-combustion device from lignite coal dryer provides heat resource for our dryer, which adopts down-flow heating method. Scatters of lignite coal dryer will fly materials up and fall them down.

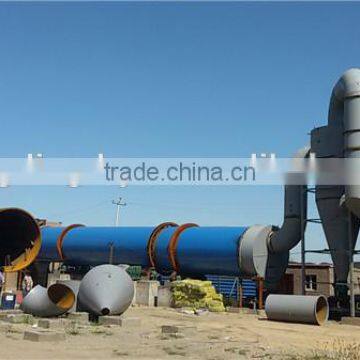

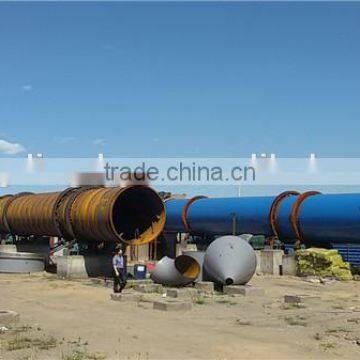

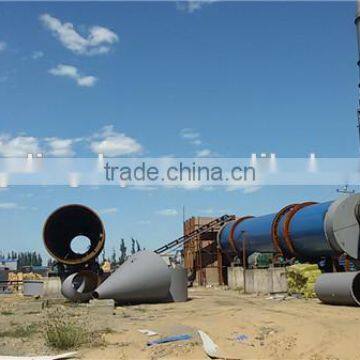

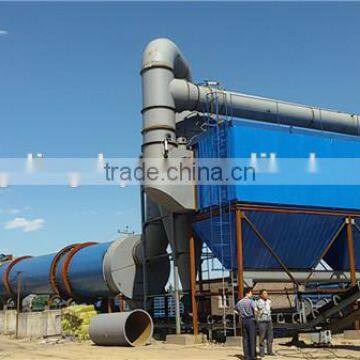

lignite dryer machine working site 1000 ton per day
2. Features of lignite dryer machine
Our lignite dryer machine is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common dryers. Completely lignite coal dryer including heating stove, dryer tube, conveyor, dust collector etc.lignite coal dryer comes with thermocouple on the feeding and discharging device to control the temperature.
3. Operative skills of lignite dryer machine
If knowing operative skills of lignite coal dryer , you will find the lignite coal dryer’ efficiency is doubles increase. There are many skills to improve working efficiency of lignite coal dryer. Heating dryer of lignite coal dryer not individually centrifugal dryer, but it can't shut down the motor heating drying alone. As the proverb goes, skills come from practice.
The simple drawing of lignite dryer machine system:
The technology Parameters of lignite dryer machine:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton) |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30-35 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33-38 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56-60 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60-65 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63-68 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68-73 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75-80 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83-88 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78-85 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80-90 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90-100 |
Export standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Coal slime, lignite dryer machine,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
