Simple Description of Less consumption sawdust rotary dryer/wood chip drying machine with low price
New type wood chips dryer is shaped as a horizontally inclined rotating cylinder. Wet wood chips is feed at feed port and discharged at the output port . In direct-type wood chips dryer (cylinder drier), hot air move through the cylinder in direct contact with the material in the dryer, either downstream or against the direction of its flow. The wood chips dryer is equipped with scatters equipment, make wood chips fully touched with the hot air,so that have a very good drying effect.
Usage Of Less consumption sawdust rotary dryer/wood chip drying machine with low price
wood chips dryer is used for drying materials with a certain humidity lightweight material, such as bean dregs, wood chips,wood chips,cassava dregs,Marc,distiller's grains,and others.
Our special design wood chips dryer has a strong adaptability of materials and it can dry various materials. This type wood chips dryer operation is very simple and liable. Also our professional wood chips dryer has playing important role in various drying industries,wood chips rotary dryer is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical.wood chips rotary dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
The simeple of Less consumption sawdust rotary dryer/wood chip drying machine with low price
Features of Less consumption sawdust rotary dryer/wood chip drying machine with low price
1. Our wood chips dryer is designed with anti-sticky drum-wall and assembled material-lifting board.
2.This type wood chips dryer,what worth mentioning is that our rotary drum dryer features convenient installation and transportation as a result of its flange connection.
3. This large sized wood chips dryer is primarily composed of feeder conveyor, heating furnace, drying device, and air intake and air outlet device, and more.
4. Our wood chips dryer has the features of low noise, little pollution and good drying effect.
The structure of Less consumption sawdust rotary dryer/wood chip drying machine with low price

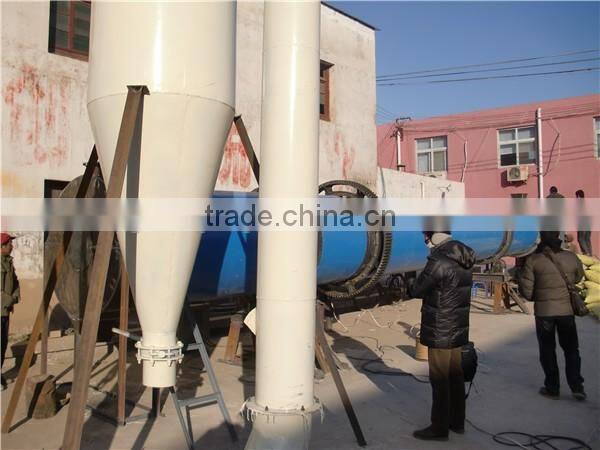

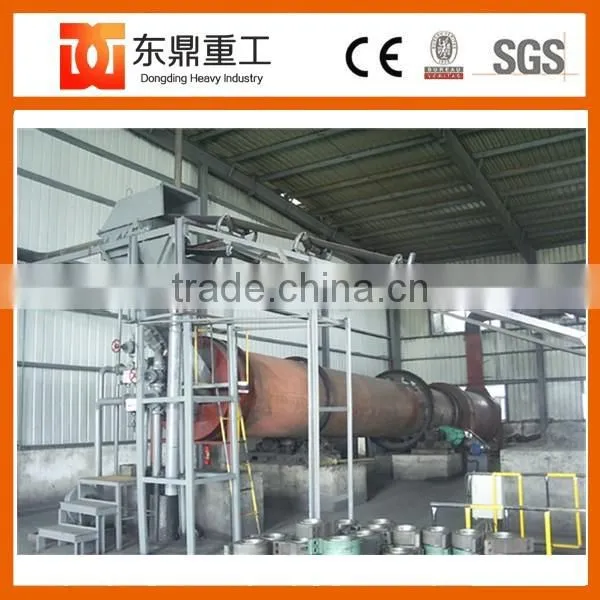

Less consumption sawdust rotary dryer/wood chip drying machine with low price working site:
The technology Parameters of Less consumption sawdust rotary dryer/wood chip drying machine with low price:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton)
|
Φ0.8x8 |
0.8
|
8 |
3-6 |
3-5% |
≥800 |
0.6-0.8 |
3 |
3 |
Φ1.0x10 |
1.0
|
10 |
3-6 |
3-5% |
≥800 |
1-1.5 |
4 |
7 |
Φ1.2x10 |
1.2
|
10 |
3-6 |
3-5% |
≥800 |
1.8-2 |
7.5 |
14 |
Φ1.2x12 |
1.2
|
12 |
3-6 |
3-5% |
≥800 |
2-3 |
11 |
15 |
Φ1.5x15 |
1.5
|
15 |
3-6 |
3-5% |
≥800 |
3-3.5 |
15 |
20 |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90 |
wood chips dryer system export sue standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.
Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Wood chips dryer, Lignite dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,wood chips burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
