Main Structure of Sawdust Dryer:
sawdust dryer main structure as below:
1.Adjustable motor 2.Reducer 3.Transmission base
4. Big Gear 5.Small Gear 6.Tug based 7. Feed port
8. Discharge port 9. Air induced fan 10. Drying cylinder
11. Roller ring 12.Cyclone
The simeple of sawdust dryer drying system
In addition, we can also according to customer's specific requirements and actual
situation to design coal gasifier, combustor, belt conveyor, dosing machine and
so on.
Working Principles of Sawdust Dryer:
Sawdust dryer is suitable for drying various types of sawdust,wood chips,bean dregs and other material, which the moisture content is less than 55%.
1. First, sawdust after transfer system enter into the sawdust dryer cylinder, flied by
raising plate device which are uniform distribution in the drum cylinder.
2. The sawdust are evenly distributed in sawdust dryer cylinder which can bear high
temperature, then fully contact with the hot air, speed up the drying heat and mass
transfer.
3. During the drying process, under the effect of plate and hot treatment in the
sawdust dryer, the materials are drying well.
4. At last, the dried sawdust come out from the end of the sawdust dryer.
The structure of sawdust dryer
Outstanding Advantages of The Sawdust Dryer:
(1) High degree of mechanization with large capacity.
(2)Simple and excellent structure,material running smoothly
through the cylinder.
(3) Less mechanical failure, low fuel consumption and easy operation.
(4) With complete dust removal equipment.
(5) No dust spilling.
Sawdust dryer working site:
The technology Parameters of Sawudst Dryer:
Model |
Diameter (m) |
Length (m) |
speed |
Installation obliquity (%) |
Drying temperature (°c) |
Capacity (t/h) |
Motor (kw) |
Weight (ton)
|
Φ0.8x8 |
0.8
|
8 |
3-6 |
3-5% |
≥800 |
0.6-0.8 |
3 |
3 |
Φ1.0x10 |
1.0
|
10 |
3-6 |
3-5% |
≥800 |
1-1.5 |
4 |
7 |
Φ1.2x10 |
1.2
|
10 |
3-6 |
3-5% |
≥800 |
1.8-2 |
7.5 |
14 |
Φ1.2x12 |
1.2
|
12 |
3-6 |
3-5% |
≥800 |
2-3 |
11 |
15 |
Φ1.5x15 |
1.5
|
15 |
3-6 |
3-5% |
≥800 |
3-3.5 |
15 |
20 |
Φ1.8x18 |
1.8
|
18 |
3-6 |
3-5% |
≥800 |
5.0-5.5 |
18.5 |
30 |
Φ1.8x20 |
1.8
|
20 |
3-6 |
3-5% |
≥800 |
5.5 |
18.5 |
33 |
Φ2.2x20 |
2.2
|
20 |
3-6 |
3-5% |
≥800 |
6.5-7.0 |
22 |
56 |
Φ2.4x20 |
2.4
|
20 |
3-6 |
3-5% |
≥800 |
7.5-8 |
30 |
60 |
Φ2.5x20 |
2.5
|
20 |
3-5 |
3-5% |
≥800 |
8-9 |
30 |
63 |
Φ2.5x25 |
2.5
|
25 |
3-5 |
3-5% |
≥800 |
10-11 |
37 |
68 |
Φ2.8x20 |
2.8
|
20 |
3-5 |
3-5% |
≥800 |
13-15 |
45 |
75 |
Φ2.8x30 |
2.8
|
30 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
83 |
Φ3.0x20 |
3.0
|
20 |
3-5 |
3-5% |
≥800 |
18-20 |
55 |
78 |
Φ3.0x22 |
3.0
|
22 |
3-5 |
3-5% |
≥800 |
20-25 |
55 |
80 |
Φ3.0x30 |
3.0
|
30 |
3-5 |
3-5% |
≥800 |
25-28 |
75 |
90 |
Sawdust dryer system export sue standard container 20GP OR 40GP,40HQ,FR container,In bulk,the spare parts in wooden case.

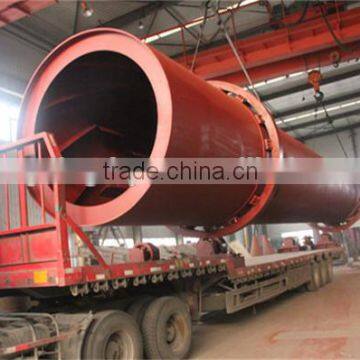

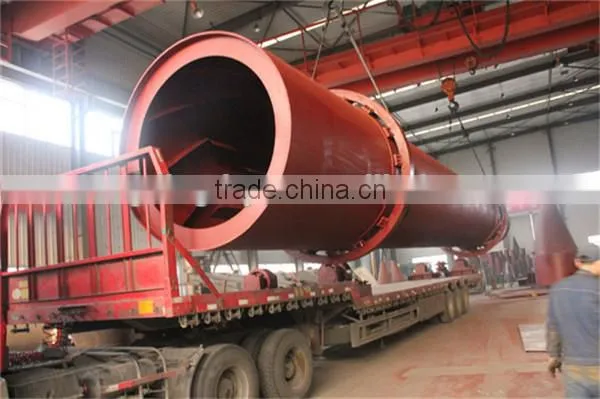

Some case of our rotary dryer shipping to customer
Henan Donging Heavy Industry Equipment CO.,LTD is a new energy equipment, high humidity material drying equipment, environmental protection and research-based professional development of enterprise groups, is the only domestic industry drying equipment research and development, design, production and sales of high-tech enterprise group, and the first certified by ISO quality management system. Dongding Heavy Industry Equipment is a project co-drying equipment, Tsinghua University, Henan University research base, China Petroleum and Chemical Industry Federation drying technology professional group member units, Henan Province, the top ten most of the growth of science and technology enterprises.
As a professional manufacture,we are supply machinery as below:
1.) Rotary dryer,Sawdsut dryer, Lignite dryer,Brewer grain dryer and other dryer
2.) Wood pellet machine, Biomass pellet machine, Animal feed pellet machine,Small pellet machine
3.)Coal gasifier,Biomass gasifier,MSW gasifier,Sawdust burner,wood pellet burner,biomass pellet burner, wood/biomass prowder burner and others
4.)wood chipper,wood hammer mill,wood crusher and other machine.
