Efficient Wood pellet machine / complete wood pellet production line for sale

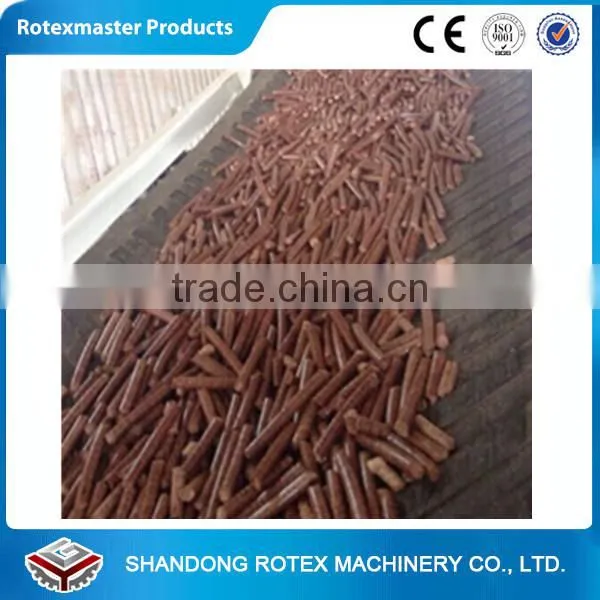

1. Complete Wood Pellet Line can press 4-12mm diameter biomass fuel pellets and fertilizer pellets ,such as
biomass waste from sawdust, rice husk, beech wood ,coffee husk, agricultural stalk, straw, peanut shell,
sun flower seed, palm shell, paper, plastic ect, such as fertilizer materials from animal manure ,plant waste ect .
there is knives installed nearby our pellet outlet door, whichcan adjust pellet length.

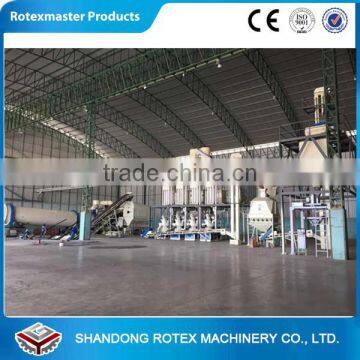

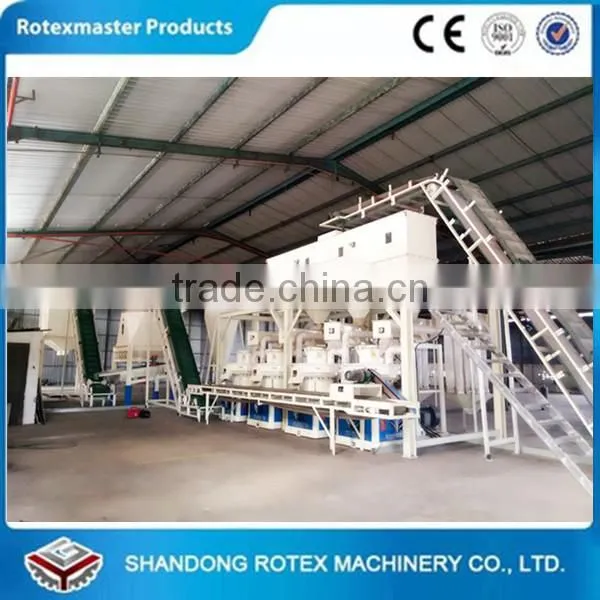

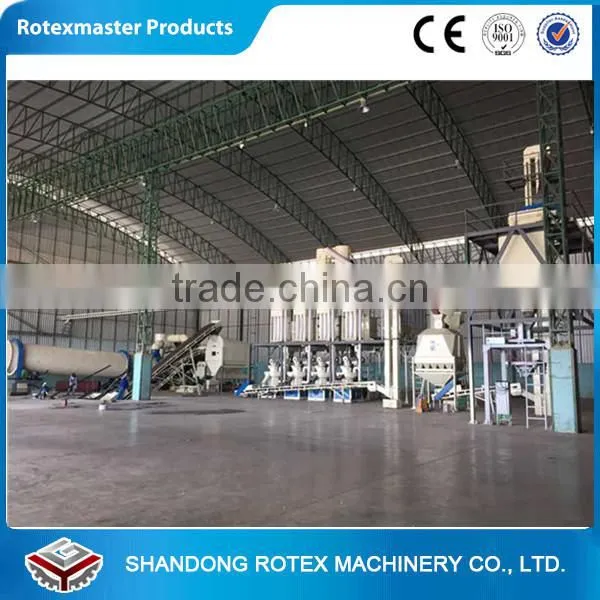

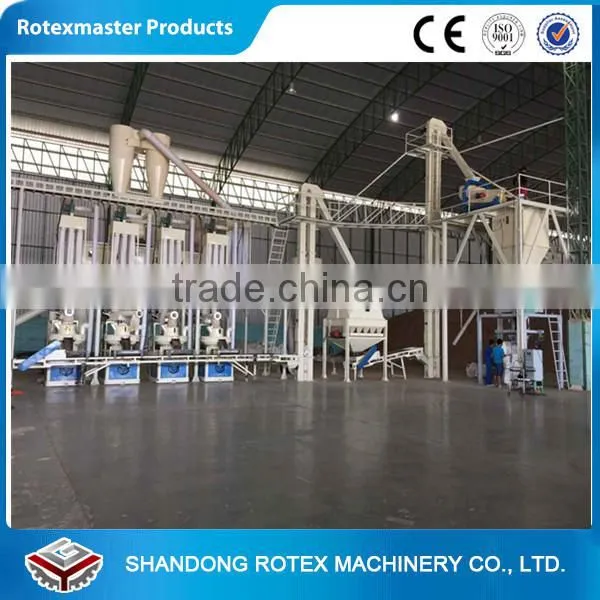

2. Complete Wood Pellet Line contains Chipping Section, Grinding Section, Drying Section,Pelletizing Section,
Cooling Section ,screening Section, PackingSection .invest price low and working efficiency high.

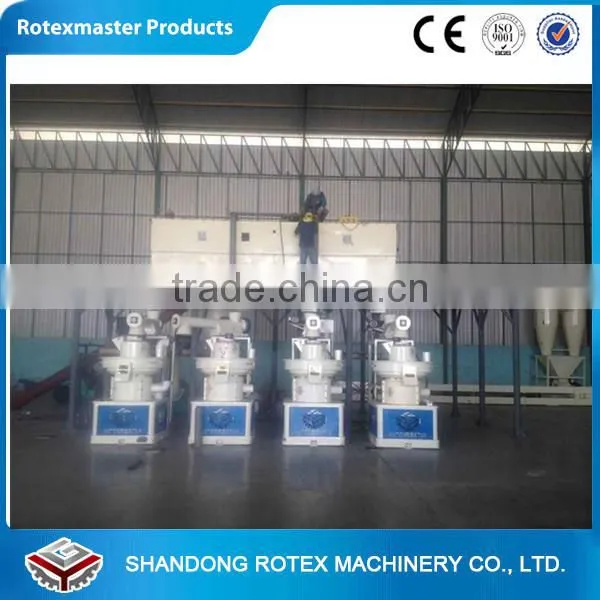

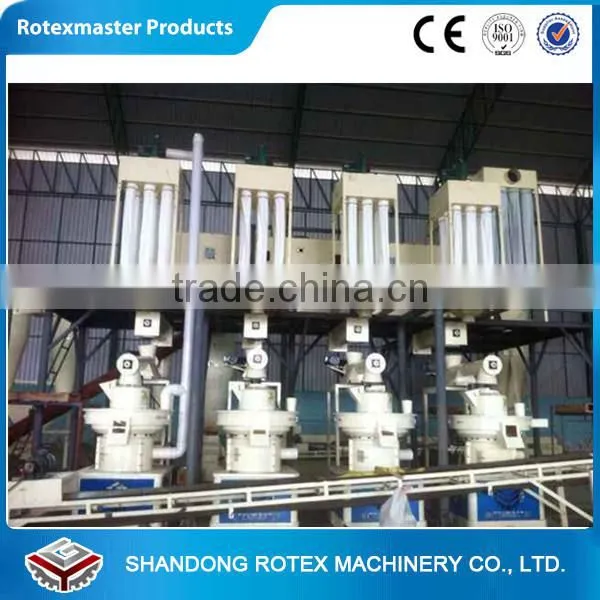

3. Complete Wood Pellet Line key pellet machine has one two layers ring die inside and roller assemble , when
works ,roller assemble will move , ring die keep stable , in this way will produce large pressure and press good
pellets . Also the two layers die :top layer and bottom layer, only bottom layer works, when ring die is broken, then
take over it and make top layer into bottom, in this way one ring die can use two times , also top layer and bottom
layer hole can be different , so one ring die also can press two dimension pellets.but other suppliers pellet machine
only can press one type.
4.Complete Wood Pellet Line capacity is from smaller 500kg/h to bigger 20ton/h ,hundreds of lines are installed in China and abroad, such as Finland, Thailand,Bulgaria, Chile, Albania, Denmark, Sweden , Romania , Japan ,
Korea, Vietnam Tunisia ,Malaysia, Russia ect . greatly welcome to visit .
5. Complete Wood Pellet Line key pellet machine contains full automatic lubricated spare parts grease systems,
which can lubricate spare parts rollers, shaft, bearings and gears automatically , the pressure between rollers and die can be adjusted automatically to fit for different materials pressure ratio ,now it is our national patent product .
6. Complete Wood Pellet Line machines spare parts are made by ourselves , mostly are made by CNC
systems, through high technology heat treatment , we can ensure its high quality and good precision.
7. Complete low-temperature drying, cooling, screen the whole process for one time. Invests few,
consumption is low. Microorganism fungus survival rate>98%
8. Complete wood pellet production line is widely used in the biomass-energy fuels plant, power plant, wood
processing plant, fertilizer plant, chemical plant etc. wood pellet production line is the ideal pressing shaping
equipments with low investment and high profit.
9. Complete Wood Pellet Line is hot selling more than 30 full lines each year, we have big discount for old
customer , greatly welcome to call and email me for details .
10. If you are interested in our wood pellet line ,please choose your ideal pellet machine model as below and tell us
your materials dimension and raw humidity. Then we will design the full flow chart with best price for you.
Complete Biomass Wood Pellet Production Line | ||||||
Model |
Power (KW) |
Pellet diameter (mm) |
Die diameter (mm) |
Output Capacity (t/h) |
Dimension (mm) |
Weight (t) |
YGKJ560 |
90 |
4-12 |
560 |
1-1.5 |
2600*1300*2300 |
5.5 |
YGKJ680 |
160 |
4-12 |
680 |
1.5-2.5 |
2900*1300*2400 |
8.5 |
YGKJ850 |
220 |
4-12 |
850 |
2.5-3.5 |
3750*1650*3250 |
15 |
YGKJ1050 |
315 |
4-12 |
1050 |
4-5 |
4200*2200*3600 |
25 |
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,manufacturing, international trade as a whole, registered capacity is 10 million Yuan, more than 150 staff. Strong technical force, advanced production technology,perfect after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,organic fertilizer and Municipal Solid Waste processing equipment, agricultural equipment, forestry equipment, etc.
Caring service, carefully manufacture and desirable price make customers at ease.
"Customer-oriented", providing customers with whole considerate services;
"Service as core," providing the most suitable products to customers;
"Quality-centered," All-round services to every customers!
Technical support: on-site technical training and technical advice available.
1. Q:How to fine the suitable wood pellet production lineto you .
A: 1. what’s raw materials? (to confirm mould compression ratio of machines )
2. Capacity per hour / month/ year you need to?
3. Moisture of raw materials ?
Note:If the moisture is big , it need to dryer , Because the suitable moisture is 13%-15% for pressing wood pellets .
Then according to your requirements and your raw materials , we will design the suitable wood pellet machine
equipment and offer the after-sales best services for you .
2.Q: How long is your guarantee?
A: Twelve Months Guarantee except sparing parts.
You will be welcome to contact us with any problem might occured.
3.Q: Will you send engineers to install the plant?
A: Yes, Our factory have professional installation team and after-sales team for you .Our engineers will have a good training to how to operate the machines and the
complete biomass wood pellet line for you and your workers.
4.Q: Voltage Requirement ?A:Usually it is 380V, 50HZ, 3Phase , or Some Countries are 220V, 240V, 415V industrial Voltage all is ok .
