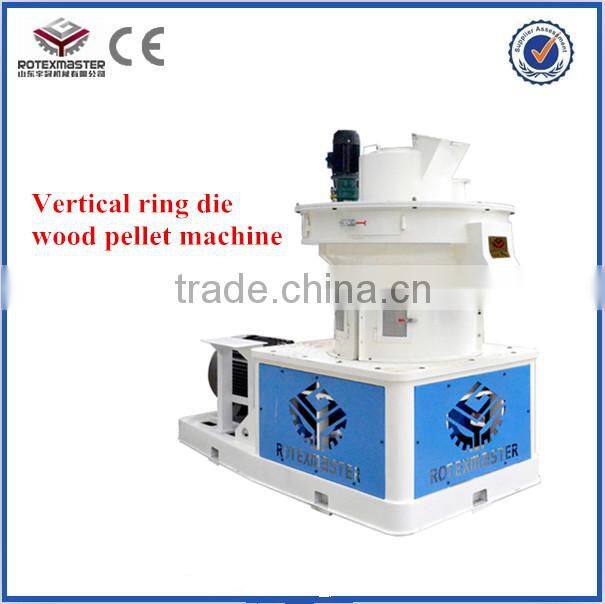

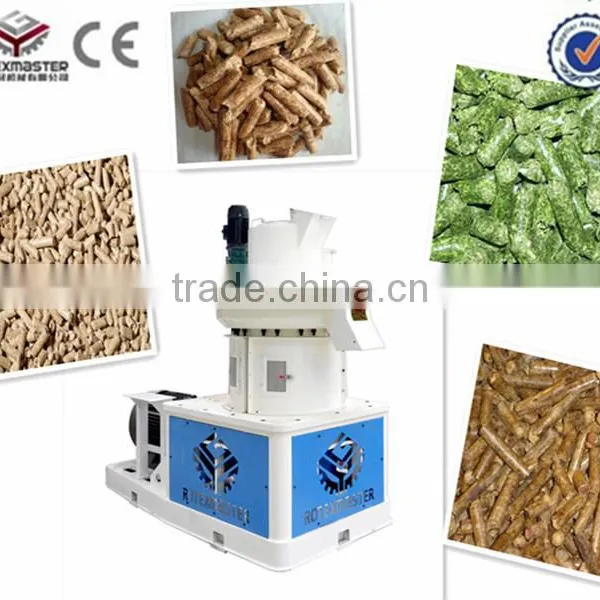

Vertical ring die wood pellet machine pellet press 1.5-2.5T/H with Automatic lubrication
Tel:8613165110202 Skype:woodpelletmachine19
Model |
YGKJ680 |
|
|
Power |
Main motor |
160kw |
oil pump motor |
0.37kw |
|
Lubricating pump |
0.55kw |
|
Fan blower |
1.5kw |
|
Dial the tray motor |
1.5kw |
|
Capacity |
1.5-2.5t/h |
|
Weight |
8.5t |
|
Measurement |
3300*1500*2300mm |
|
Diameter |
4-12mm |
|
Granulating moisture content |
12-16% |
|
Why choose us ?
Advantages of Vertical Ring die Wood Pellet Machine
1. YGKJ series vertical ring die wood pellet machine is an ideal dense compression molding rquipment.
2. Vertical feeding, directly in pelletizing room.
3. Die is static, rollers rotate, materials are evenly distributed around pelletizing room because of centrifugal force, no block.
4. Double-layer die. Two layer both can be used for reduce the cost. High efficiency and save energy.
5. Ring-die and vertical structure are good for cooling the pelletizing room.
6. Independent and frequent conversion discharge device can ensure the formation rate of pellet.
Our Service
1. Company adhere to the " Service & Quality First, Brand & Reputation First " Principle to provide our customers the best quality service. Welcome thecustomers to visit our factory.
2. Our professional service includes: free training, guidance, installation, and debugging.
3. After selling, we provide the warranty of one year.
4. If you have any problems, we will help to solve on line or live in time.
5. Authorized oversea agents are also engaged in serving.
Now I will introduce more details to you .
Brief Introduction of Vertical Ring die Wood Pellet Machine

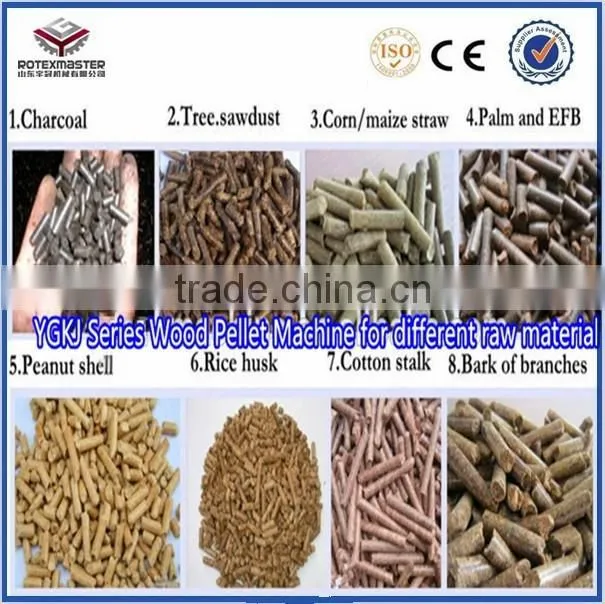

Vertical Ring-die Wood Pellet Machine is a new biomass fuel production machinery by using crushed sawdust and bran from eucalyptus, pine, birch, poplar, fruit and agricultural straw, bamboo. Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die pellet machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die pellet machine.
Technical Parameters of Vertical Ring die Wood Pellet Machine
Model |
Power (kw) |
Diameter(mm) |
Capacity(t/h) |
Measurement(mm) |
Weight(t) |
YGKJ560 |
90+1.5+1.5+0.37+0.55 |
4-12 |
1-1.5 |
2600*1300*2300 |
5.5 |
YGKJ680 |
160+2.2+1.5+0.37+0.55 |
4-12 |
1.5-2.5 |
3300*1500*2300 |
8.5 |
YGKJ850 |
220+3+0.37+2.2+0.55 |
4-12 |
2.5-3.5 |
3800*1830*3080 |
15 |
YGKJ1050 |
315+5.5+0.37+1.5+0.55 |
4-12 |
4-5 |
4200*2200*3600 |
25 |

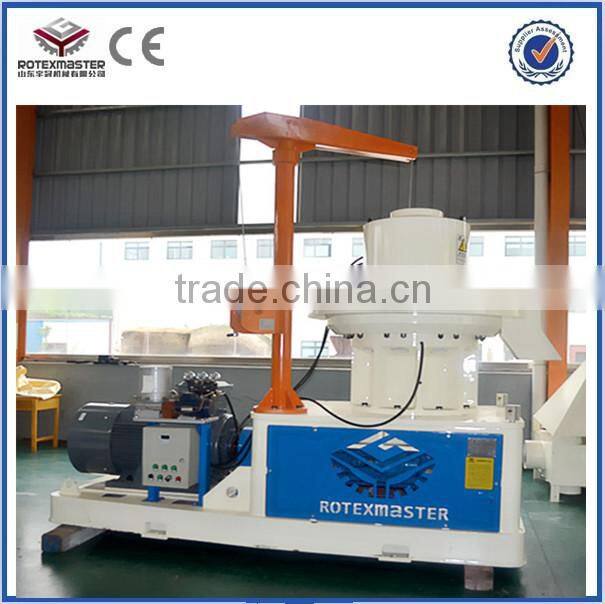

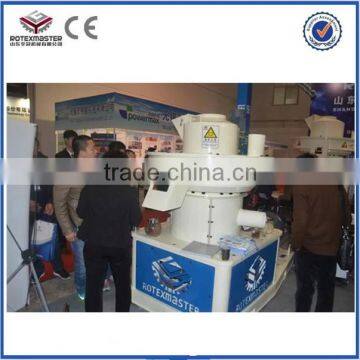

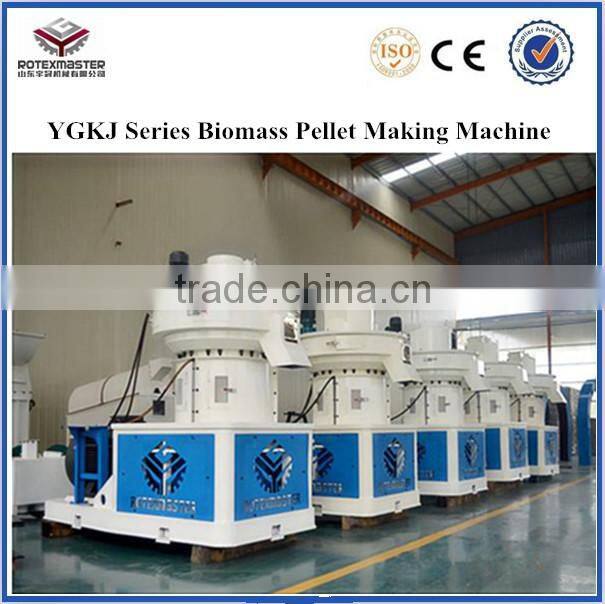

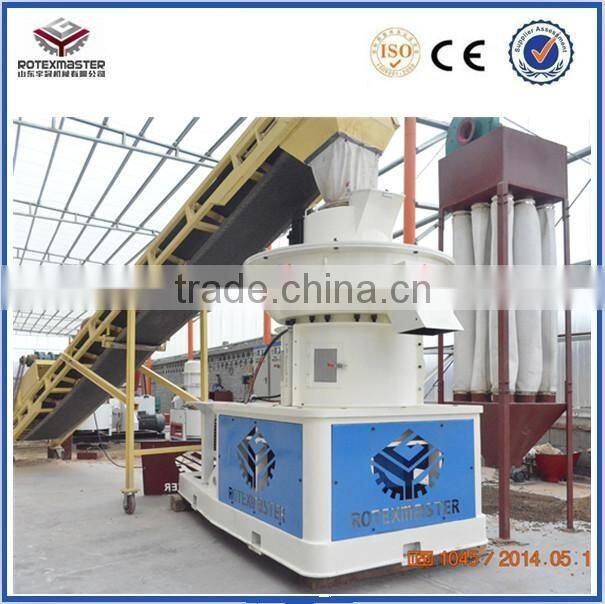

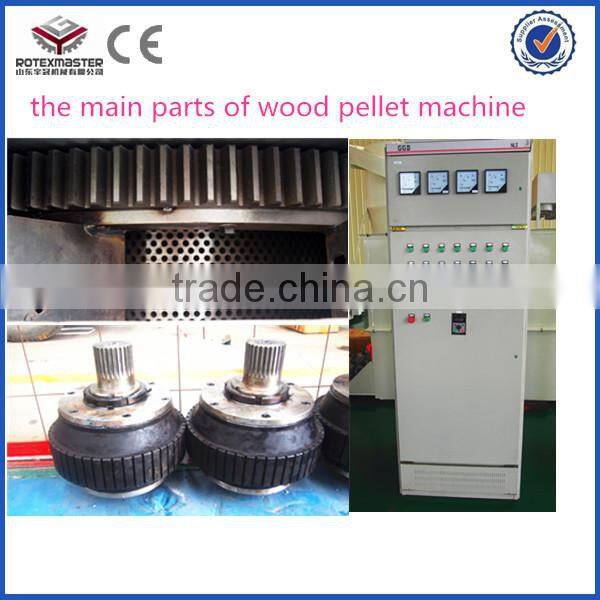

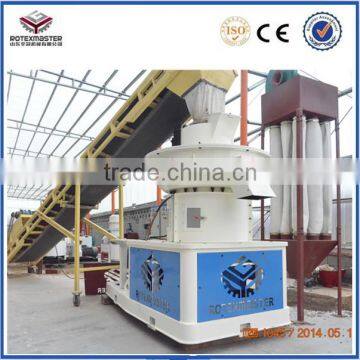

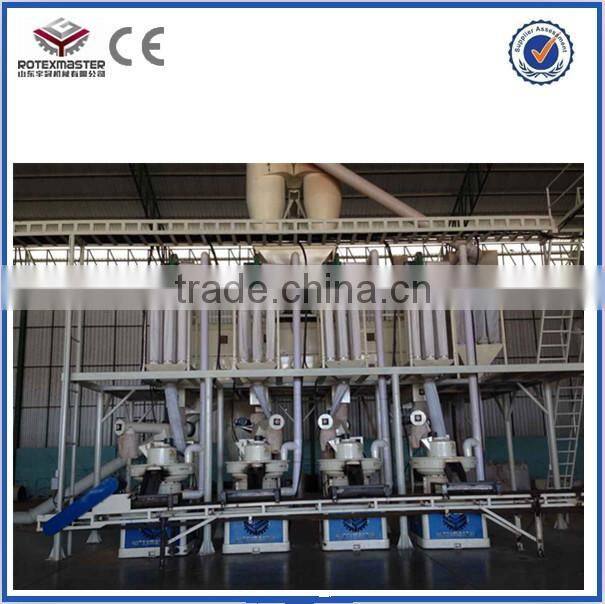

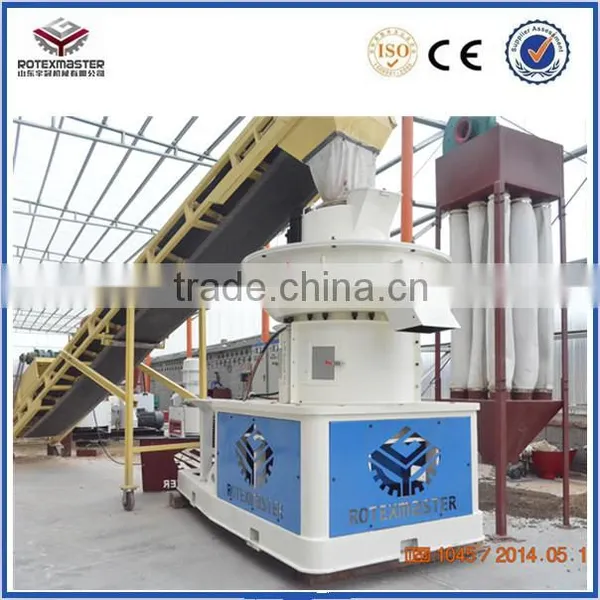

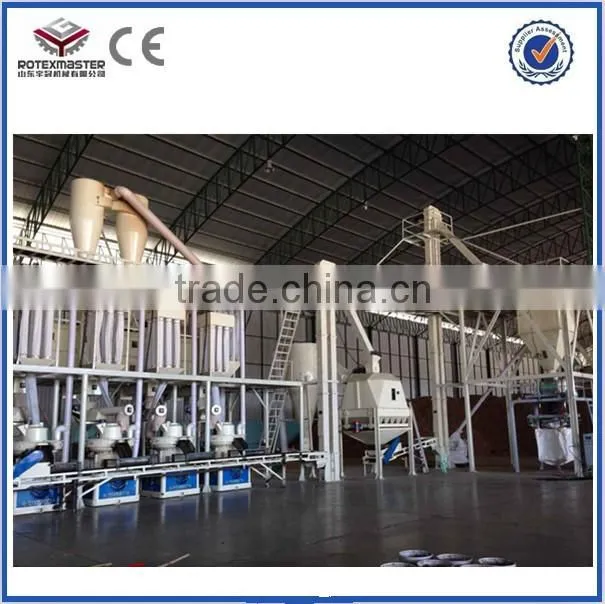

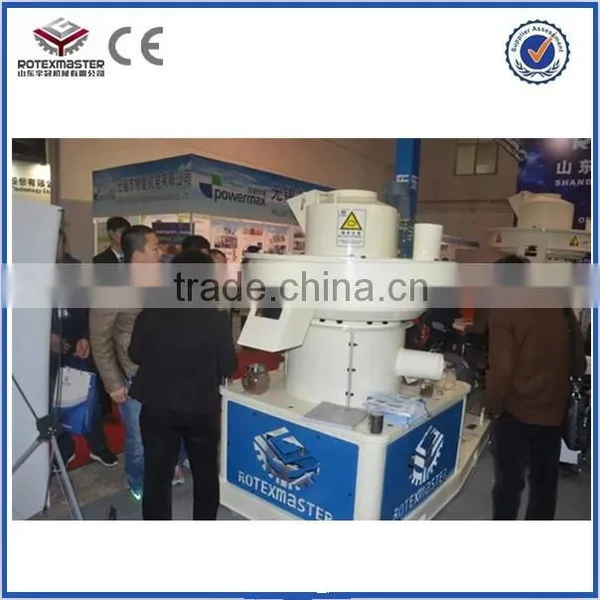

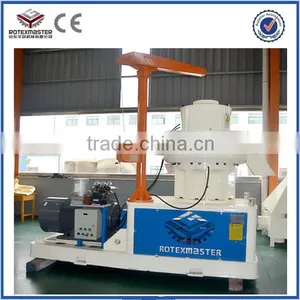

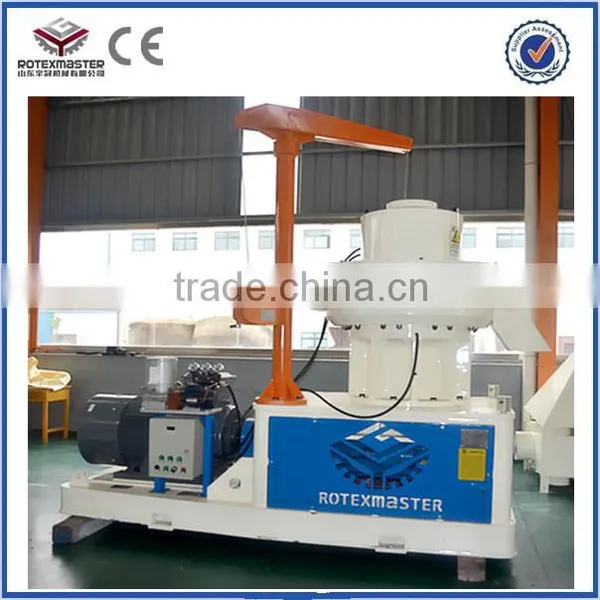

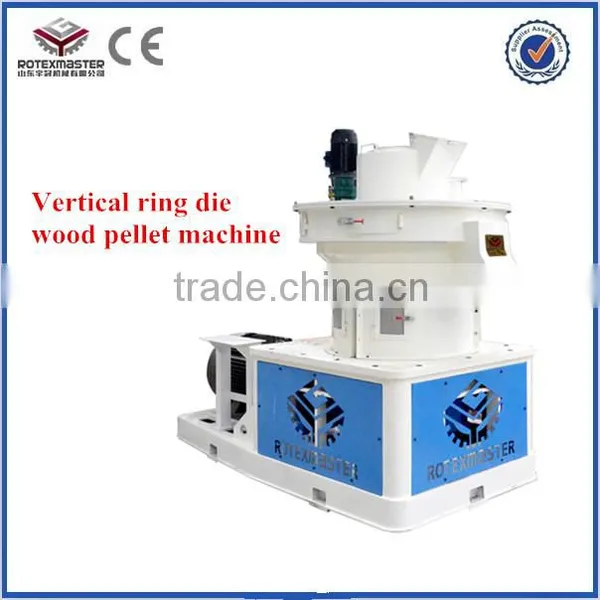

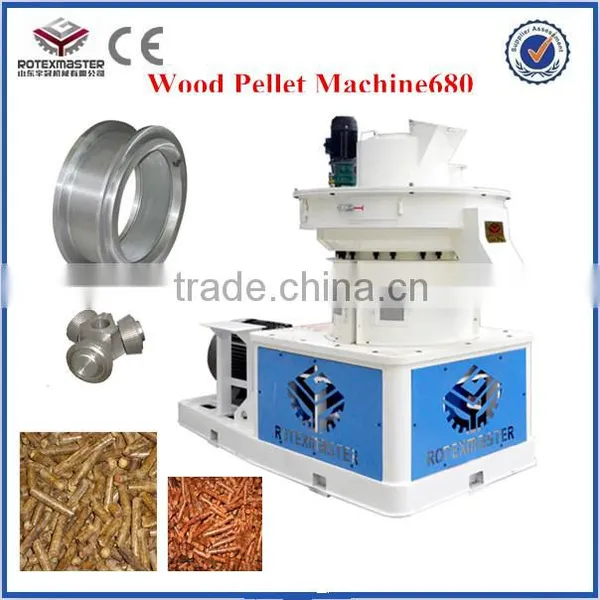

Product Show
FAQ
How did you define your model as 560/680/850?
Rotex Master:The YGKJ series 560/680/850 is defined according to the main parts model's size. For example, 560, the mold's diameter is 560mm.
What's the suitable moisture of material that to be granulated?
Rotex Master:The moisture should be controlled under 20%
How long is your guarantee?
Rotex Master: One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred.

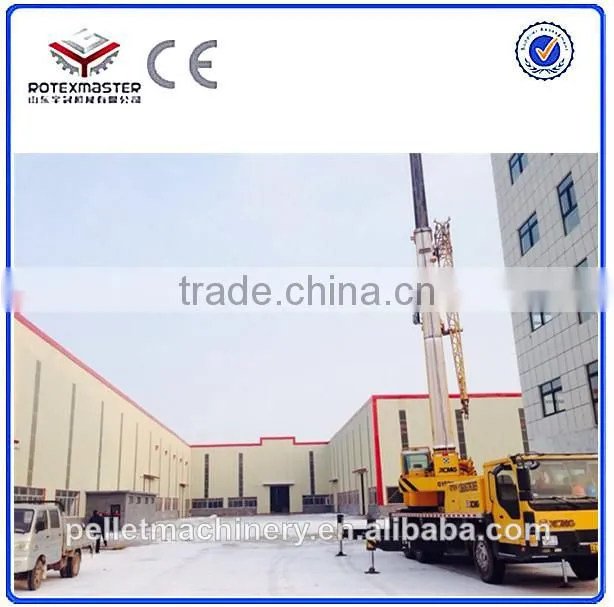

Company Show
ROTEX is an enterprise combined of science and technology, which is specialized an manufacturing and installation training and international trade. Especially in the energy shorttage today, starting from customers' interests, standing in the perspective of customers, to provide our customer the best service, we should like to use our professional knowledge and design the most suitable chart flow and produce the best much better products.
We are doing biomass fuel machinery, fodder farming machinery, and supporting the auxiliary equipment of dryer, cooler, dust removal equipment and other machinery products, the main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment, conveyors equipment and other auxiliary equipments.

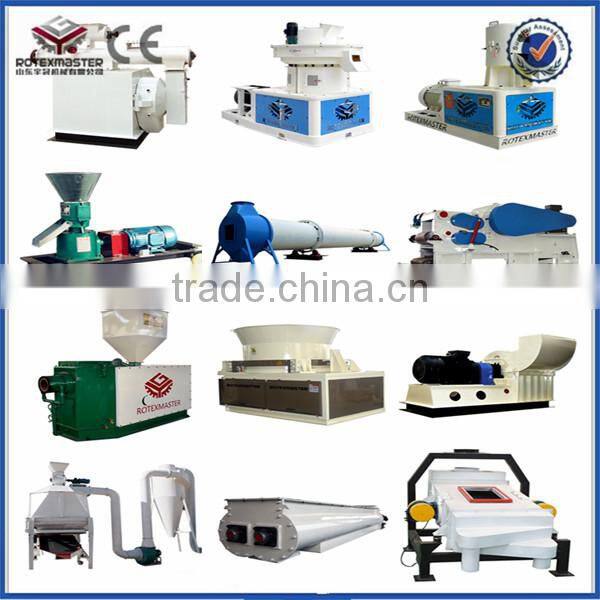

We also supply machine as following :
Feed pellet machine
Flat die pellet machine
Ring die pellet machine
Wood chipper
Wood crusher
Hammer mill
Cooling machine
Rotary dryer
Screener
Mixer
Other auxiliary equipments
Thanks for reading my product information. If you have any questions, please don't hesitate to contact me.Then I will provide you the best and professional srevice.
