rice husk EFB biomass wood sawdust pellet making machine price
Pellet machine is the process of making waste materials into solid fuel. The objects are used for burning
purposes. The pellet can be made from any type of agro-forestry waste: groundnut shell, sugarcane
bio-gases, caster shells/stalk, saw dust, coffee husk, paddy straw, sunflower stalk, cotton stalks, and

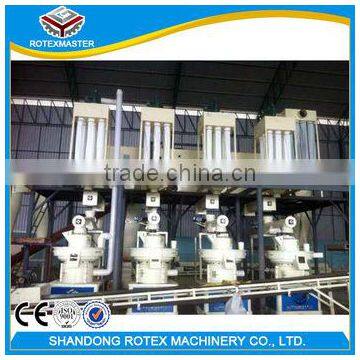

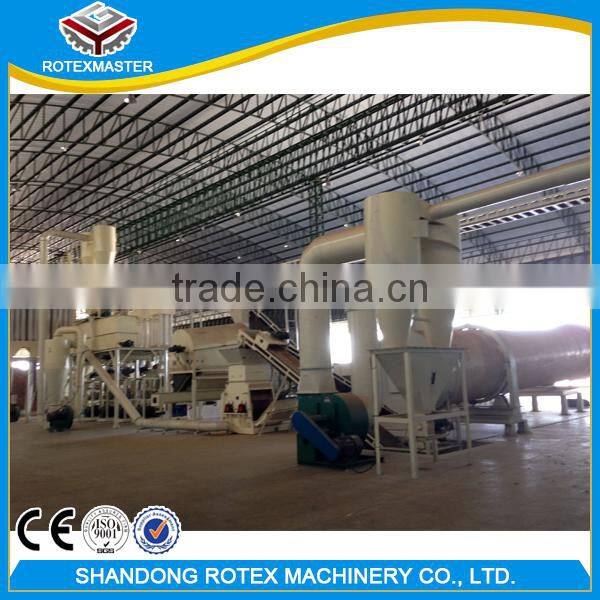

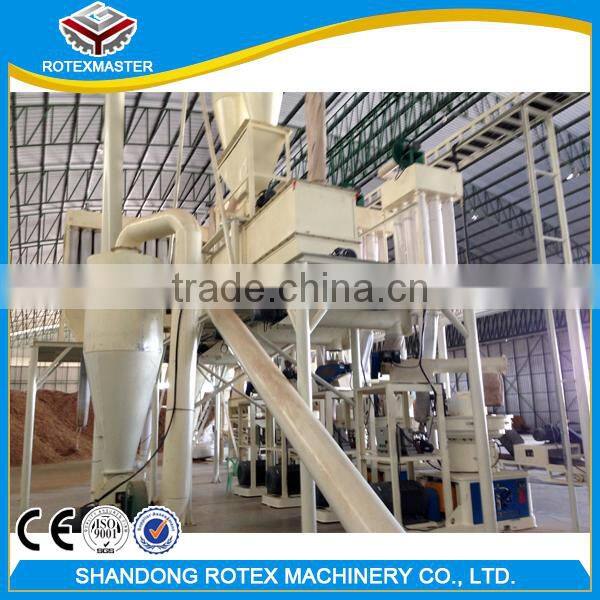

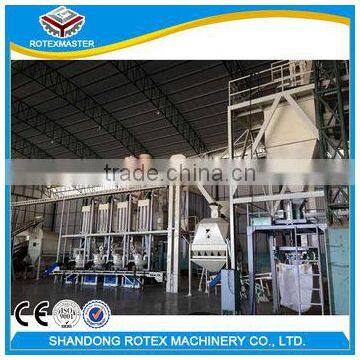

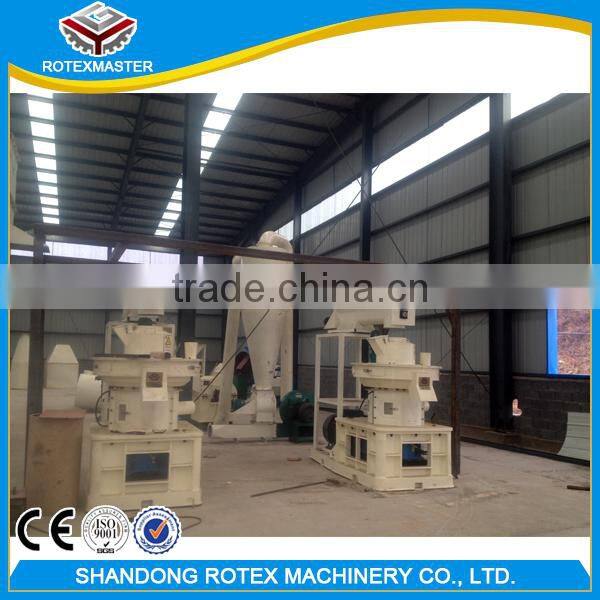

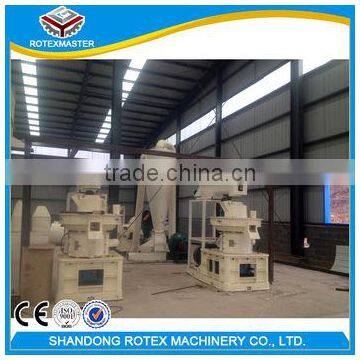

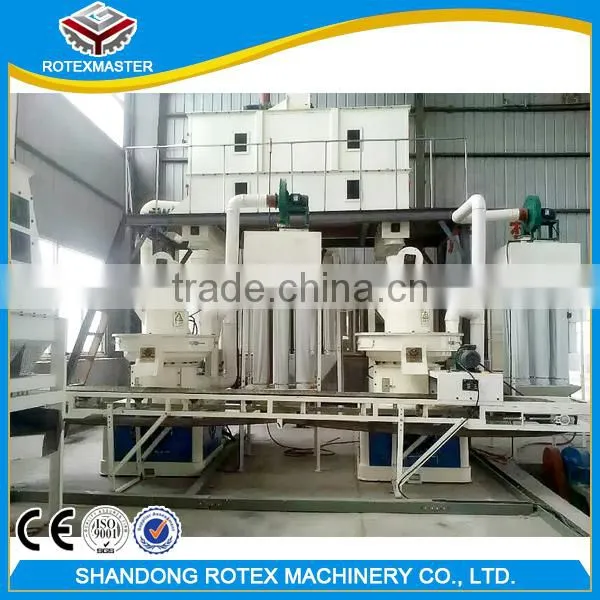

so on. Pellet machine is widely used in wood pellet production line.
Pellet production every section according the raw material
Brief Introduction for Wood Pellet Production Line Contact Phone:+8618615687606(Joyce) | |
Working Sections | Detailed Introduction for different Pellet Line Sections |
Chipping Section | If the clients raw materials are wood logs,we suggest you use wood chipper,but please kindly note it,your raw materials max diameter must be allowed by our wood chipper max diameter(from 23cm to 35cm),it grind the wood logs into wood chips |
Grinding Section | The hammer mill is the main machine in grinding section,it grinds the wood chips,small wood waste(Size:30*30*10mm) into wood sawdust (5mm-8mm),if your raw materials are EFB,coconut shell,packed straw stalk etc.,you could use the composite crusher or stump crusher to crushing your raw materials |
Screening Section | Rotary screener used for screening the small wood blocks in the wood sawdust,usually, the clients raw materials are wood sawdust,after the screening,the raw materials could be processed the wood pellets directly |
Drying Section | For making pellets,the suitable moisture for raw materials are 15%,if your raw materials are not in this range,you need the dryer to dry the raw materials. [ROTEX MASTER]rotary dryer has the wide market in Southeast Asia,Europe. |
Pelletizing Section | The biomass wood pellet machine is an efficient biomass pellet making machinery,the pellets standard as follows: 1.the wood pellet diameter 4-12mm wood pellets , usually 6mm for Europe, 8 mm for Korea and 8-10mm for china. the pellet diameter and length can be adjusted according to your demand . 2. pellet moisture is 8%-10%, 3. density >1.1, completely satisfy DIN standard |
Cooling Section | Cooling section is one of the most sections in the wood pellet production line,because the wood pellets temperature from wood pellet machine is 80-90 ℃,the clients could choose the counter flow cooler and cooling silo for cooling wood pellets,after the cooling,the wood pellets have good density and beautiful surface,improve selling |
Screening Section | The vibrating screener used for screening the good pellets and bad pellets |
Packing Section | The packing machine has two types,one is packing range 5-50kg/h, another is LCS-MT,you could choose any type of them according to your actual requirements |
Standard model of pellet machine
Model | Power (kw) | Pellet Diameter (mm) | Mould Die. (mm) | Output Capacity (t/h) | Dimension (mm) | Weight (t) |
YGKJ560 | 90 | 4-12 | 560 | 1.2-1.5 | 2600*1300*2300 | 5.5 |
YGKJ680 | 160 | 4-12 | 580 | 1.5-2.5 | 2900*1300*2400 | 8.5 |
YGKJ850 | 220 | 4-12 | 850 | 2-3 | 3750*1650*3250 | 15 |
YGKJ1050 | 315 | 4-12 | 1050 | 4-5 | 4200*2200*3600 | 25 |
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,manufacturing, international trade as a whole, registered capacity is 10 million Yuan, more than 150 staff. Strong technical force, advanced production technology,perfect after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,organic fertilizer and Municipal Solid Waste processing equipment, agricultural equipment, forestry equipment, etc.
1.Technical guidance, according to your capacity and raw material ,recommend a suitable model;
2.Visit to our factory and have an investigation and performance test;
3.Engineers available to service machinery overseas;
4.Warranty 1 year,quality guarantee except wear parts and wrong operation.
