Wood pellet machine / wood pellet mill in Romania
Tel:+8613001730022 Skype:pelletmachine17 wechat: rotexmaster0022

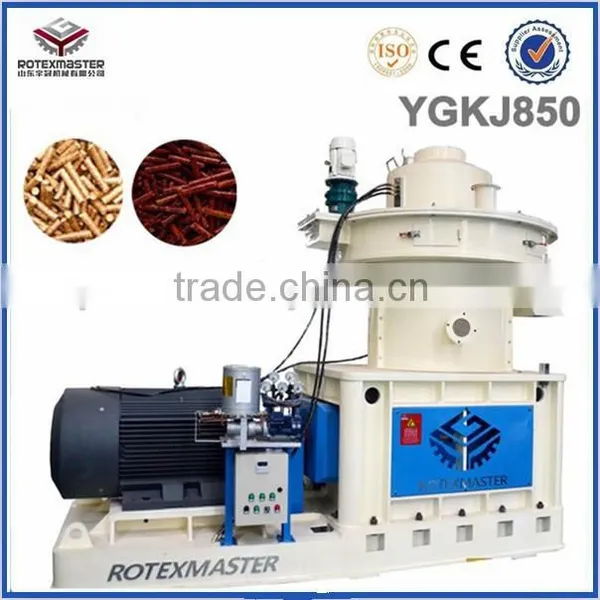

YGKJseries efficient Centrifugal wood pellet machine for is our initiative patented product in China throughmeticulous research and development.
The wood pellet machine absorbed the essence of pellet mill in oversea market, its heart part “double-layer die” has unique structural assembly and ‘'rollers'' are made by high-abrasion-proof alloy steel and stainless steel, which improves the using life of spare parts greatly.
Wood pellet machine grease is injected and filtrated automatically, which can ensure the
long time working without stop. It also has dust and cooling system that can reduce the dust
during it working and improve the working environment.
Special design, rational structure, low power consumption and high efficiency, sturdy
and durable, it achieves combining the advantage of both flat die pellet machine and
horizontal ring die pellet mill and becomes the real professional pellet machine,
that is used for sawdust, wood shaving, bark,rice husk, stalks, rank grass, EFB, and other
crops straw and wood waste. The equipment is widely used in making fuel materials for home use fireplace, power plant, wood processing plant and biomass fuels plant.
Wood pellet machine features:
1.Vertical feeding directly in place. centrifugual force is enough , without jam.
2. Die static, roller rotating, materials centrifugal, Evenly distributed around. make wood pellets more smooth surface.
3.Double-layer dies, up and down dual-use, reduce the cost, enhance the efficiency, can be
dual-use, high capacity, energy saving.
4.Ring die, vertical structure, and cooling system -fan blower good for cooling the pelletizing room.
5.Independent and frequency conversion discharge device, to ensure that the rate of pellet
formation. 98%
6.Automatic lubrication system, lubricate the bearings without stop , make our wood pellet machine
can work at least 20 hrs , work 24hrs , but we recommend operate 20hrs .
7.Superior equipment : Siemen Beide motor , Harbin Standard bearing and guomao reducer
steel from Jigang factory ,can save u electricity consumption.
8. new design of hoisting device , can change the die and rollers easier.
Technical Parameters:
Why choose us:
1.Unique design adopt the essence of horizontal ring die and flat die wood pellet machine
our vertical ring die type feeding is naturally with force, sawdust in the pressing room can be
evenly pressed .Never ouccur materail block without wrong operation and the bearings in
the main shaft is wear-resistant,avoid the bearing break because of over press.
2.More design details .
(1).the cooling system, as u know , the finished wood pellets has a 80- 90 high temperature ,
and when thre is high temperature heat in pressing room , we adopt fan bolwer cooling system
to draw out these heat , so when the wood pellet go out , its surface is smooth wihtout water.
(2).The oil pump, 20- 24 hrs working ,lubricate the bearing per half an hr automatically. Ensure
machines works continuously, also protect bearings efficiently , longer their service life
(3).Bag dust collector, dusting collecting room, dedusting function, keep working environment
cleaner.
(4).reducer transmission, stable and enough power for pellet machine running. as regard to
reducer transmission , compared with gear transmission , which is better, our reducer is
from guomao , it is a international stake company, the reducer has 3- times reduce,
from 1490r/min to 75r/min, ensure the transmission accurancy ,and the
motor is 4 -grade motor, save electricity consumption compare with 6 --grade motor
the pressure between roller and die is enough to press the hard wood materail. improve
formation, 98.6% and the pellet density can reach EU standard , is 1.1- 1.3kg/m^3,
bulk density is 650-750kg/m^3
3.in addition to CE ISO BV, basic quality guarantee, we have our National Patent too.
(1).And the main parts die .roller , the die and roller are stainless steel or alloy steel, after heat treatment, more wear resistant ,our stainless steel die service life is 1000-1500hrs , some supplier exaggerate 3000-4000hrs, and our die material is specially ordered from 100% zhengchang (famous die
brand in china )then heat treatment, process to smooth .
(2)strong structure , as our wood pellet machine body steel is bought from Jigang ,Laigang,
famous factory in China, eg. Vertical ring die wood pellet machine 5.8t. working no rotate , safety .
(3 )our motors are Siemens Beide (siemens branch in china )motor ;and the reducer Guomao(stake international company ).
(4)the bearings in our wood pellet making machine with factory price is Haerbin standard (No 1 in
china for 30 years)
if u want to SKF, we can equip for u
(5)the electric parts is Delixi
4. the skilled workers and experienced R&D engineers, the advanced facilities are quality guarantee, ensure high accurancy so that our machines of high efficiency and low wearing.
special after sale service team is your gurantee.
5. on time and fast delivery time. our delivery time is 25-30 days .as the local voltage may be different from china :380v,50hz, 3 phase. we have
cooperation with Siemens( Beide) , they will has a longer delivery time for motor compared with 380v, 50hz, 3phase . and our delivery time is made according to our manufacturing tasks , in addtion ,
the die's whole process (order from zhengchang, process, heat treat , process again )
need time, it is impossible to delivery machine in 15 days, if u want a good quality machine .
After-sales Service:
1.Guarantee period is one year, since the date of purchasing (with invoice), if there are
failure issues due to manufacturing quality during this one year, factory will be responsible
for the maintenance for free. (Die, rollers, bearing, spare parts are not included).
2.If failure or damage caused by the user’s improper operation, our factory will provide
paid services.
3.Users need service, please contact our factory,will provide the prompt and best reply.
4. New drawing and technical parameters will change without notice to the user, please
understand.

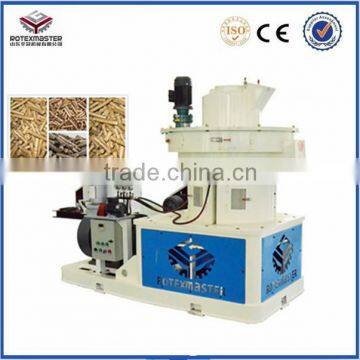

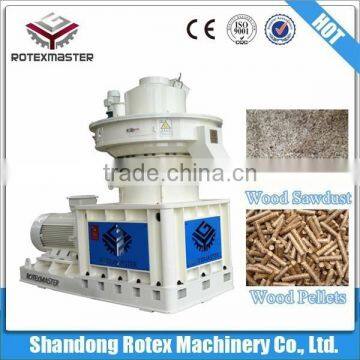

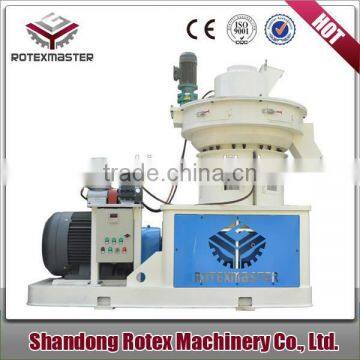

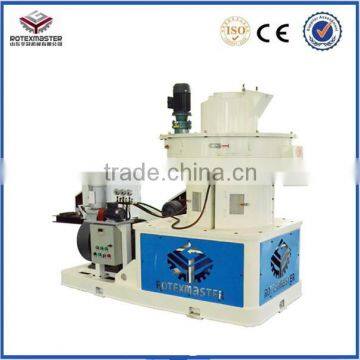

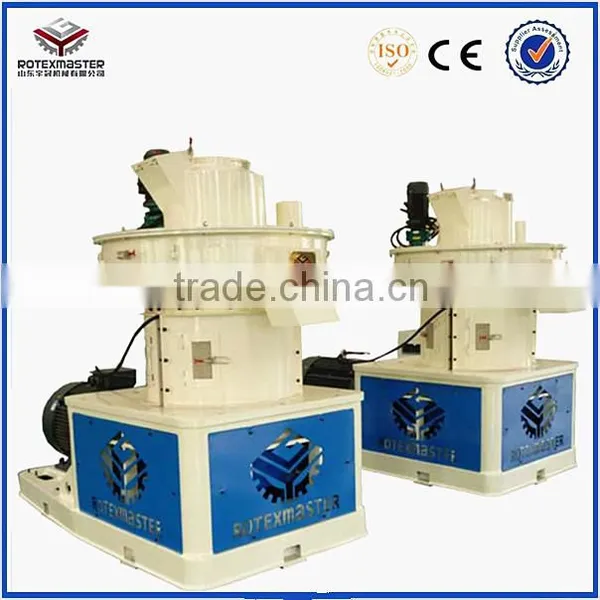

Picture show:
Details determine success or failure .

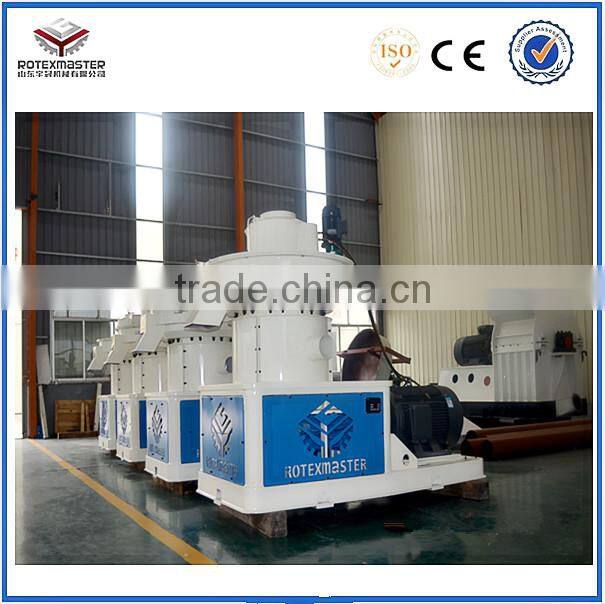

Machine in pellets production line:
Details in machine :
How did you define your model as 560/680/850?

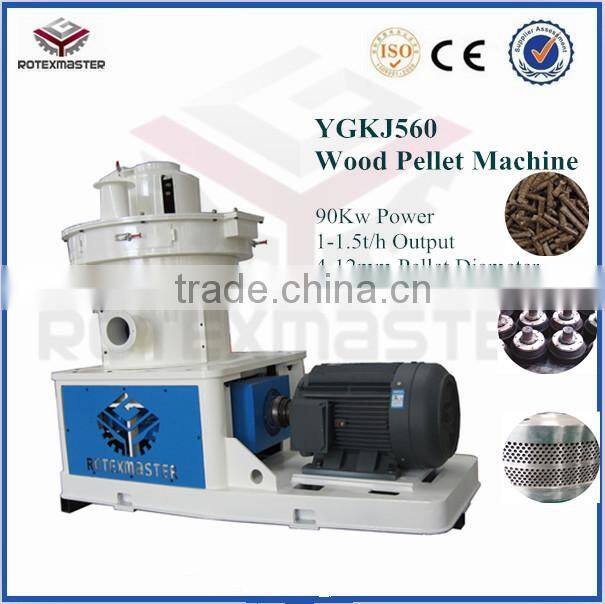

Rotex Master:The YGKJ series 560/680/850 is defined according to the main parts
model's size. For example, 560, the mold's diameter is 560mm.
What's the suitable moisture of material that to be granulated?
Rotex Master:The moisture should be controlled under 20%
How long is your guarantee?
Rotex Master: One Year guarantee. We shall supply free exchange for spare parts.
After this period, we shall charge at low cost to keep after service. You will be welcome
to contact us with any problem might occurred.
Company information:
The company's products through the ISO international quality system certification .
Shandong Rotex Machinery.,Co.Ltd, Which located in Jinan , Capital of Shandong
Province.
Our Company has ISO9001_2000 Certification,CE Certification,SGS Certification etc.Product cover the enviromental carbon, biomass,urban and rural environment,
culture and other fields.There are five main series: the biomass compression
molding
equipment, garbage disposal equipment for urban and rural ,organic fertilizer
equipment and environment, Feeder Equipment and Environmental protection
equipment .
Companies adhere to the “Service, Quality First, Brand, Reputation First” Principle
to provide our customers with the best quality services .Welcome the customers to visit to our
factory.
If you are intrerested in our production please contact me :
Thanks for reading my products information. If you have any questions, please
don’t hesitate to contact me, and then I will provide you the best and
professional service!
