Wood pellet bagging machine with CE / ISO approved
skype: pelletmachine17 Wechat: rotexmaster0022
This product is mainly applicable for difficult molding materials with low adhesion rate,
for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind
andother wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill,wood processing plants, fuel plants, fertilizer plants, chemical plants etc.
Less investment,Fast return,No risk.

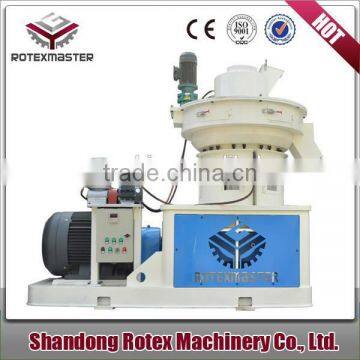

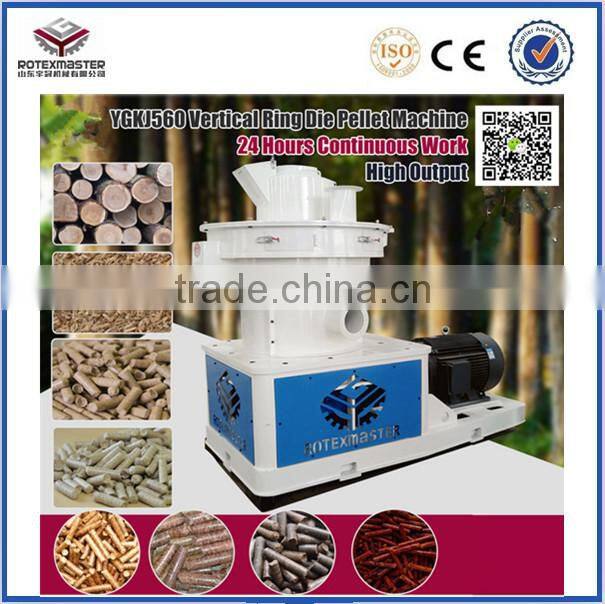

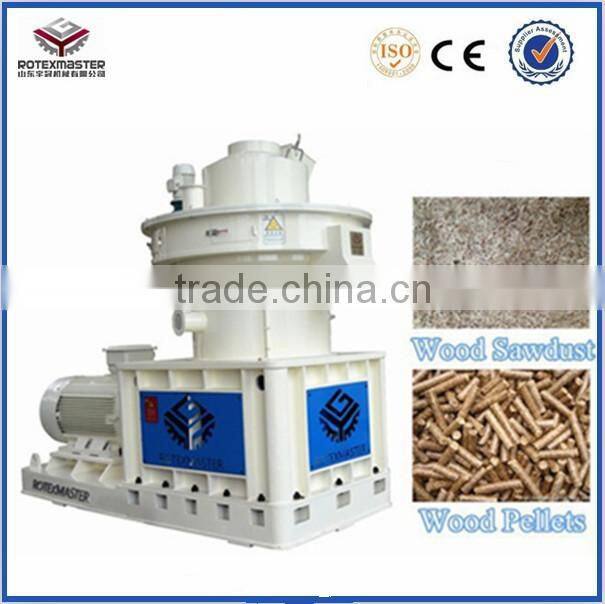

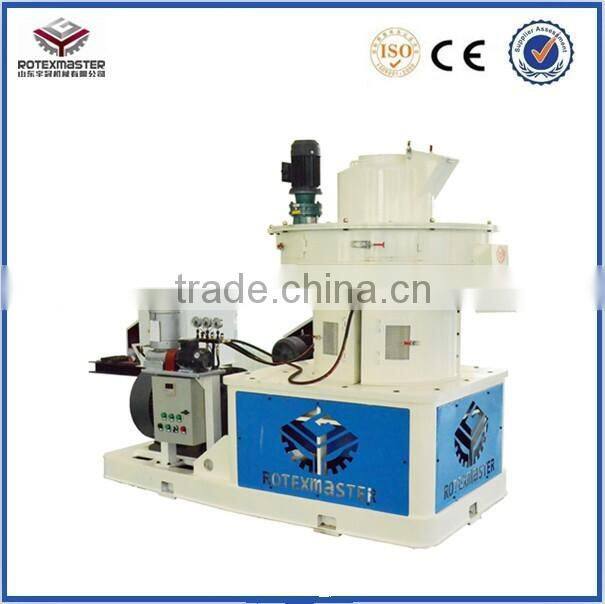

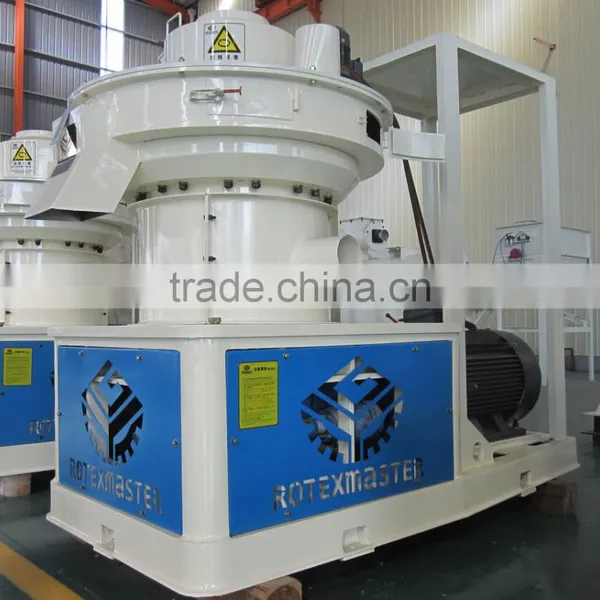

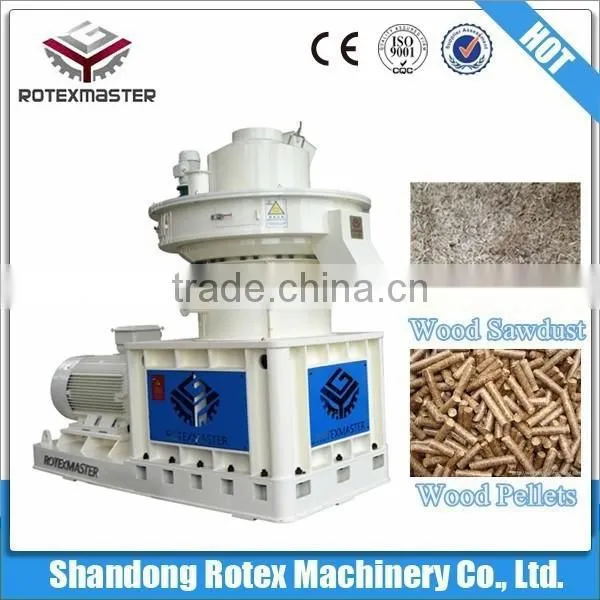

YGKJ series efficient vertical ring die pellet machine is an ideal dense compression molding equipment.
Advantages of choose us:

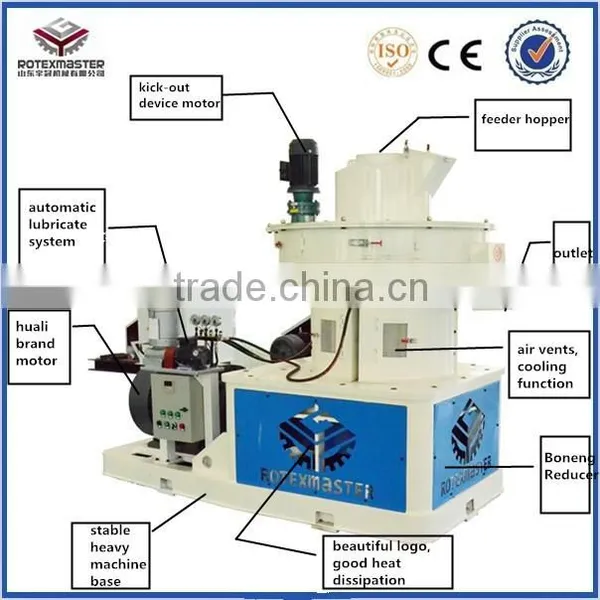

(1) vertical feeding
(2) roller rotate,Centrifugal force role ,material distribute uniformly
(3) two layer roller,saving cost ,good effect.
(4) ring die,vertical structure, help pellet room temperature reducing
(5) Separate discharging structure, improve the pellet forming rate
(6) with good lubricate device, protect the machine bearing
(7) feeding device with frequency conversion
Technical Parameters:
Model | Power (Kw) | Pellet Specification (mm) | Ring die inner diameter (mm) | Output (t/h) | Measurement (mm) | Weight (t) |
YGKJ-550 | 75 | φ4-φ12 | 550 | 0.7-1.2 | 2300×1000×1780 | 4.8 |

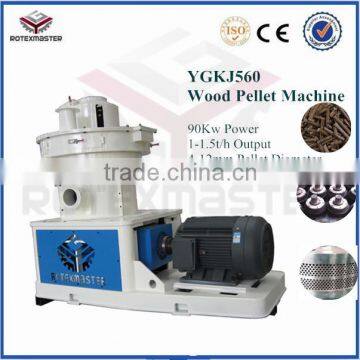

YGKJ-560 | 90 | φ4-φ12 | 560 | 1-1.5 | 2600×1300×2300 | 5.8 |
YGKJ-580 | 160 | φ4-φ12 | 580 | 1.5-2 | 2900×1300×2400 | 6.5 |
YGKJ-850 | 220 | φ4-φ12 | 850 | 2-3 | 3750×1650×3250 | 12.6 |
We abide by the principle of service first,quality first,brand first,reputation first,supply the best, professional service to solve your problem. Look forward to win-win cooperation with you.

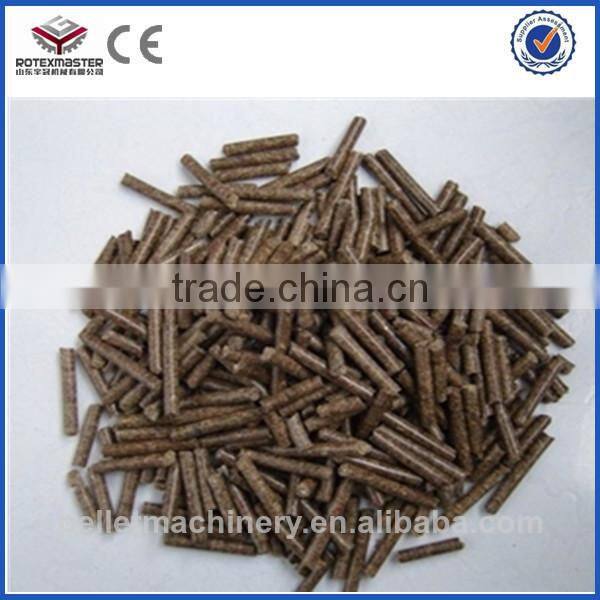

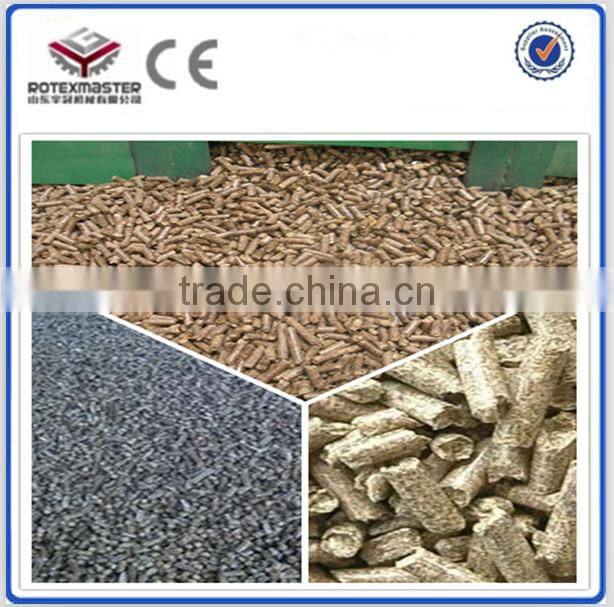

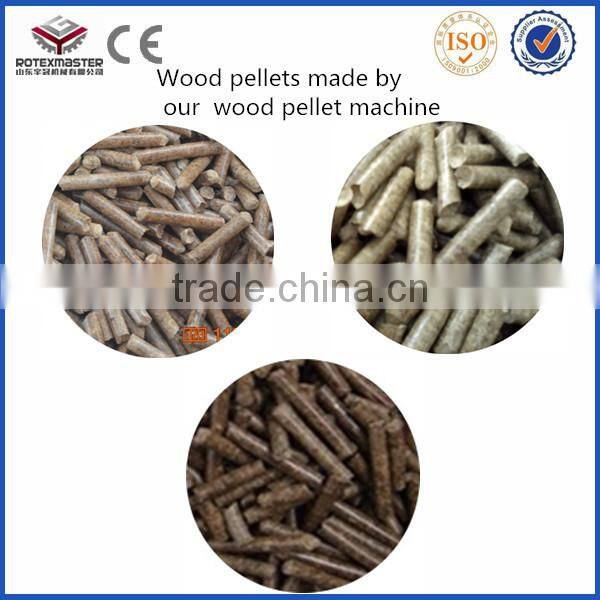

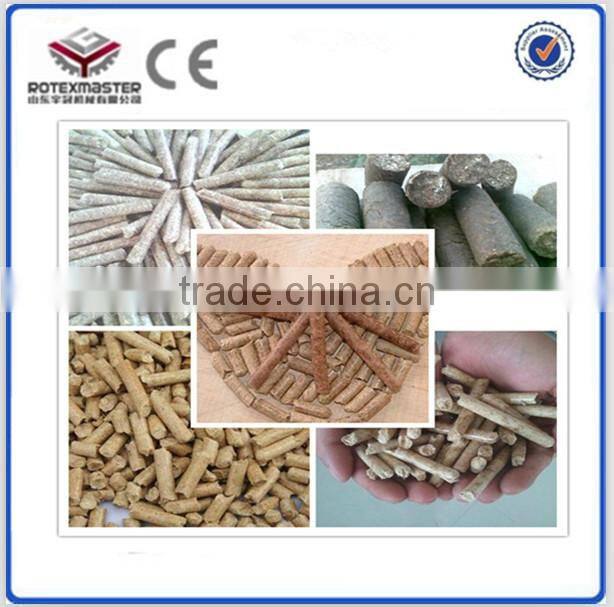

Picture show

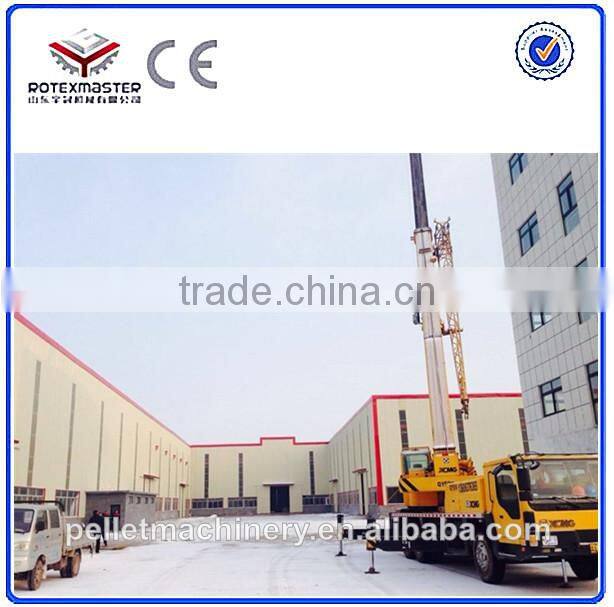

Shandong Rotex Machinery.,Co.Ltd, Which located in Jinan , Capital of Shandong Province, Zibo east, its north and south bordering 309 State Line and Jinan-Qing dao High Speed, just 30kilometers away from Jinan International Airport. The company is a collection of research, development,production , operating as one of modern machinery manufacturing enterprises, Registered capacital of 10 million, employs more than 150 people, strong technical force, advanced production technology, perfect after-sales services .
We are doing biomass fuel machinery, fodder farming ma,chinery, and supporting the auxiliary equipment of drying, cooling,dust removal equipment and other machinery products, the main products:Flat Die Pellet Machine , Ring Die Wood Pellet Machine , Drum Wood Chipper and Hammer Mill two series ; Air Flow, Rotary Dryer ,Cooling Equipment and other two series of Screener, Belt Conveyors and other equipments .
How did you define your model as 560/680/850?
Rotex Master:The YGKJ series 560/680/850 is defined according to the main parts model's size. For example, 560, the mold's diameter is 560mm.
What's the suitable moisture of material that to be granulated?
Rotex Master:The moisture should be controlled under 20%
How long is your guarantee?
Rotex Master: One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred.
Please contact me
Welcome to visit our factorty
