Sawn timber of rubber wood family waste pellet press

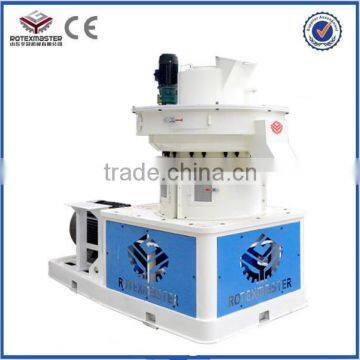

Brief of Wood Pellet Machine

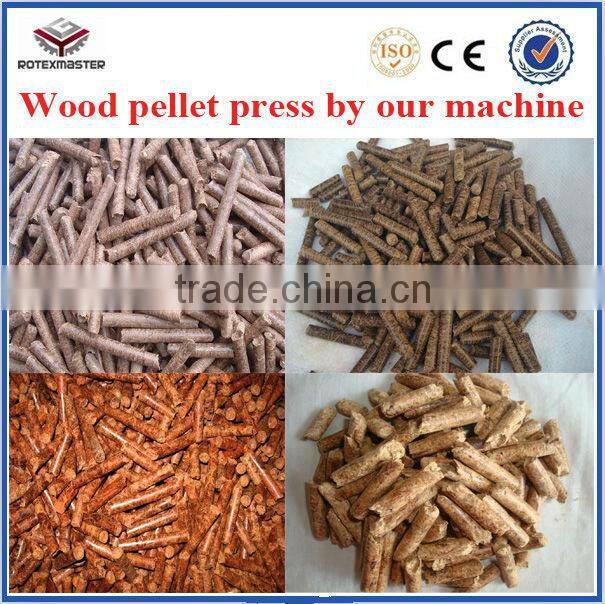

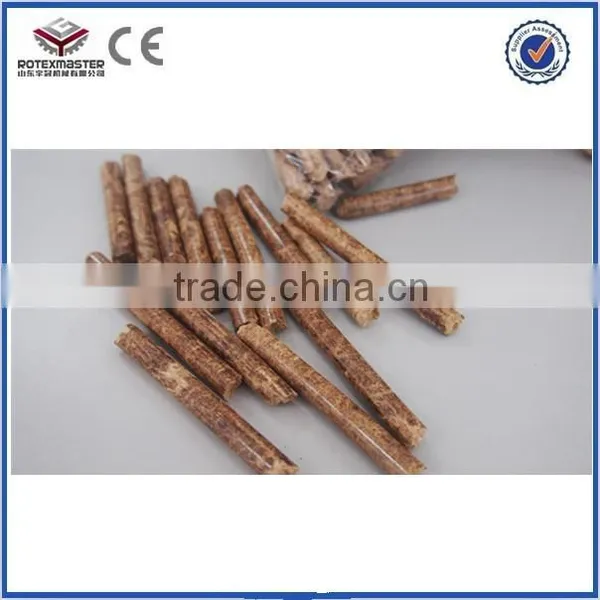

Wood pellet machine can produce die.4-12mm pellets, its length can be adjustable
optionally. The wood pellet machine is mainly applicable to crude fiber granulation,
such as: sawdust, rice husk ,cotton stalk, cotton seed hull, weeds and all kinds of
crop straw, home wastage, waste plastics and the factory waste, the material of
low adhesion rate, difficult to forming,etc.
This type of pellet mill is widely used in the biomass-energy fuels plant, power
plant, wood processing plants, etc. It is the ideal pressing shaping equipment with
low investment but high profit feedback.

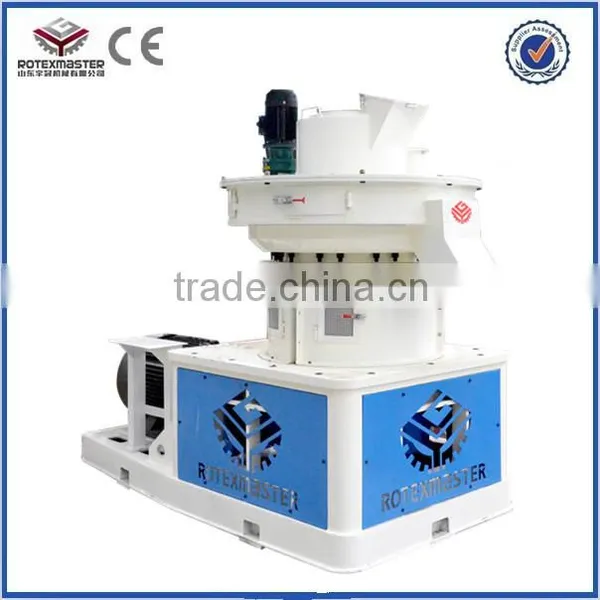

Features of Vertical Ring Die Pellet Machine
1.Vertical feeding of the pellet machine;
2.Die static, the roller rotate,centrifugal force role,material distribute uniformly;
3.Two layers of roller die,high efficiency and good effect;
4.Ring die,vertical structure, which is good for the heat dissipation;
5.Independent discharge device, improve the pellet forming rate;
6.Good lubricating device, protecting the machine bearings;
7.Feeding device is with frequency conversion;
The detailsof the pellet machine

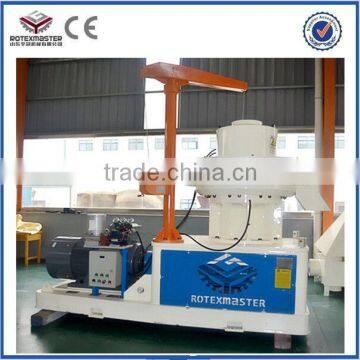

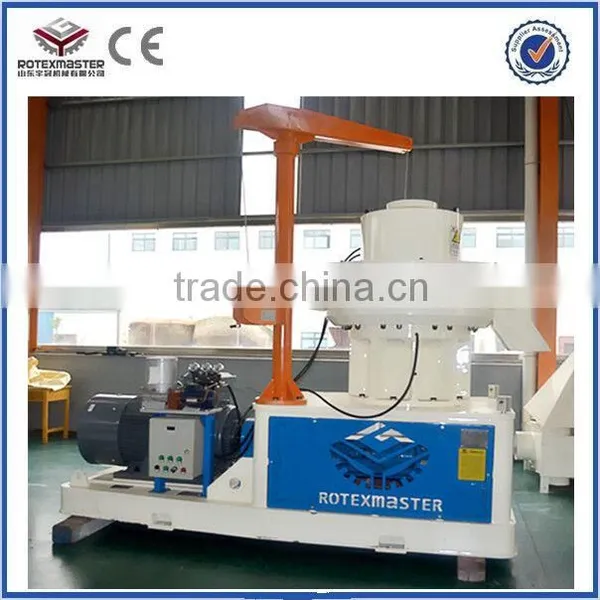

For easy change the roller and die we add the hoisting equipment
Model of the pellet machine
Model | Power (kw) | Pellet Diameter (mm) | Model Die. (mm) | Output Capacity (t/h) | Dimension (mm) | Weight (t) |
YGKJ560 | 90 | 4-12 | 560 | 1.2-1.5 | 2600*1300*2300 | 5.5 |
YGKJ680 | 160 | 4-12 | 580 | 1.5-2.5 | 2900*1300*2400 | 8.5 |
YGKJ850 | 220 | 4-12 | 850 | 2-3 | 3750*1650*3250 | 15 |
YGKJ1050 | 315 | 4-12 | 1050 | 4-5 | 4200*2200*3600 | 25 |

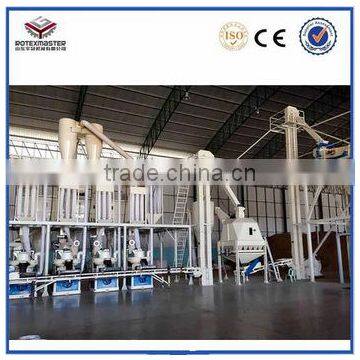

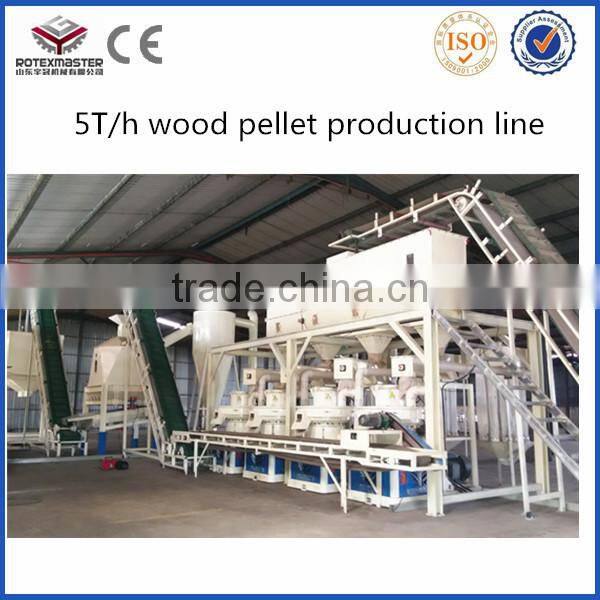

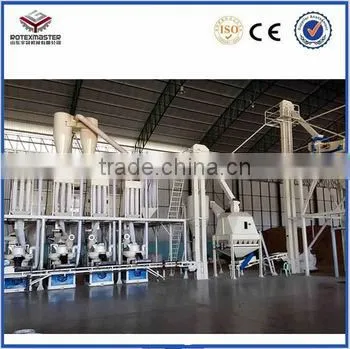

The pellet production line in Malaysia of our company customer
Also we can design the prodution line for you according your need
The information of the pellet production line
Contact
Skype:3085457114(at)
Tele/fax:+86-0531-18615687606
Tradmanager:cn1513371974
Whatsapp:+86-0531-18615687606
1.Technical guidance, according to your capacity and raw material ,recommend a
suitable model;
2.Visit to our factory and have an investigation and performance test;
3.Engineers available to service machinery overseas;
4.Warranty 1 year,quality guarantee except wear parts and wrong operation.
Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,
manufacturing, international trade as a whole, registered capacity is 10 million
Yuan, more than 150 staff. Strong technical force, advanced production technology,
perfect after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,
organic fertilizer and Municipal Solid Waste processing equipment, agricultural
equipment, forestry equipment, etc.
