Wildly Using Small Output Multifunctional Hammer Mill Wood Crusher With High Quality
Skype:woodpelletmachine19 Wechat:yuguanjixie0202
If you have any questions, don't hesitate to contact me!
Brief Introduction
The multifunctional hammer mill's working principle is that when the material enters into the crusher,grinded by the beat, fraction power from the high speed rotating hammers, then the required power screened by the sieve.
The YSG series hammer mill can crush the wood chips, rice husk, agricultural stalk/straw pieces, and shell or grain crops. Meanwhile, the hammer mills grind the PVC and rubber with water cooling system, so it called the multifunctional hammer grinding machine.
Technical Parameters
Model |
Power(kw) |
Capacity t/h |
Hammers |
Weight (t) |
YSG40 |
7.5 |
0.2-0.5 |
16 |
0.27 |
YSG50 |
15 |
0.6-0.8 |
16 |
0.45 |
YSG65*27 |
22 |
0.8-1.5 |
24 |
1.1 |
YSG65*55 |
37 |
1-2 |
48 |
1.5 |
YSG65*75 |
55 |
2-3 |
72 |
1.9 |
YSG65*100 |
90 |
3-4 |
96 |
2.3 |
YSG130*55 |
110 |
5-6 |
80 |
5.3 |
YSG130*100 |
160 |
7-8 |
160 |
6.8 |
Advantages
(1)The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
(2)Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
(3)The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
(4)Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.

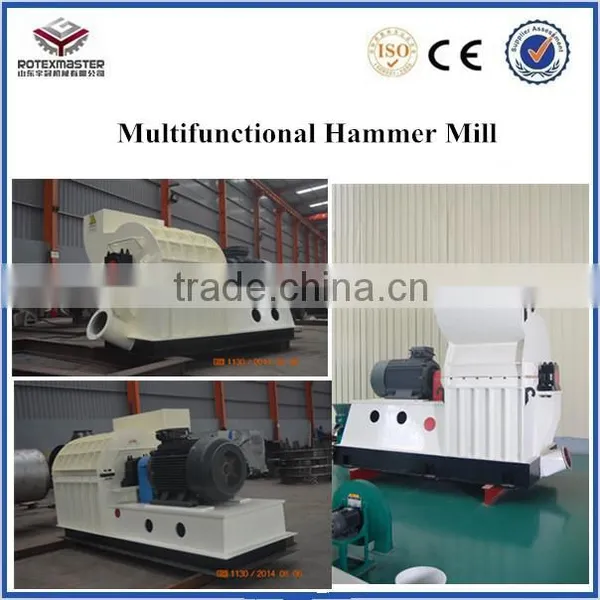

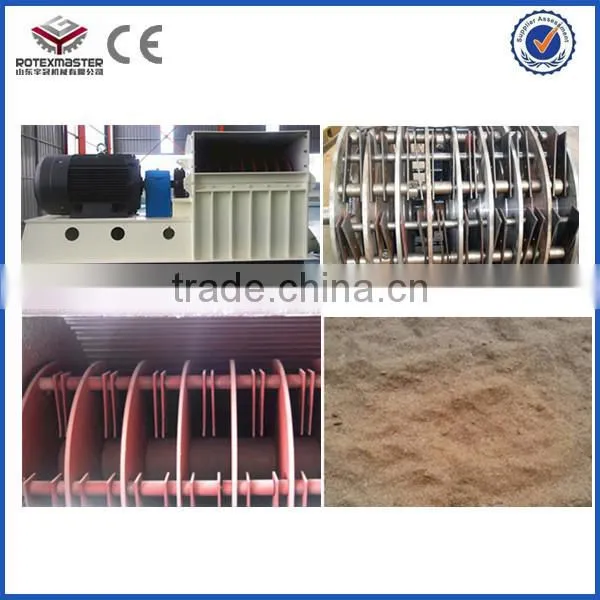

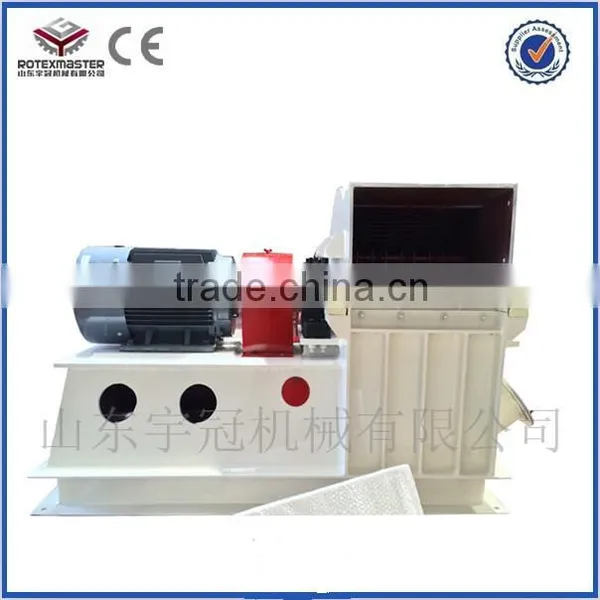

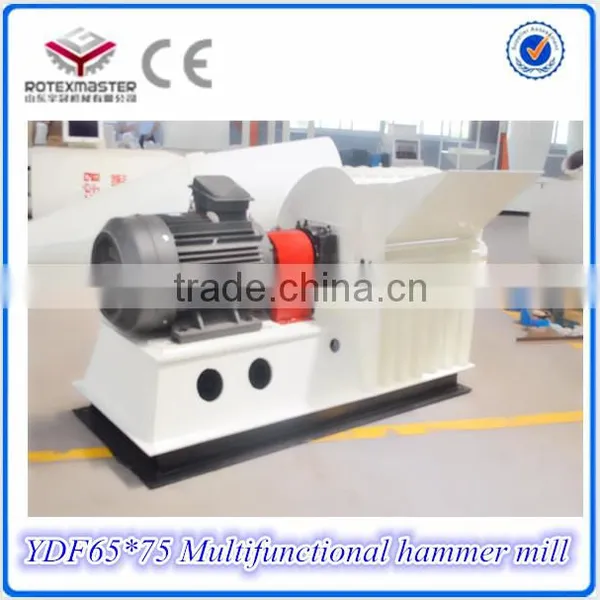

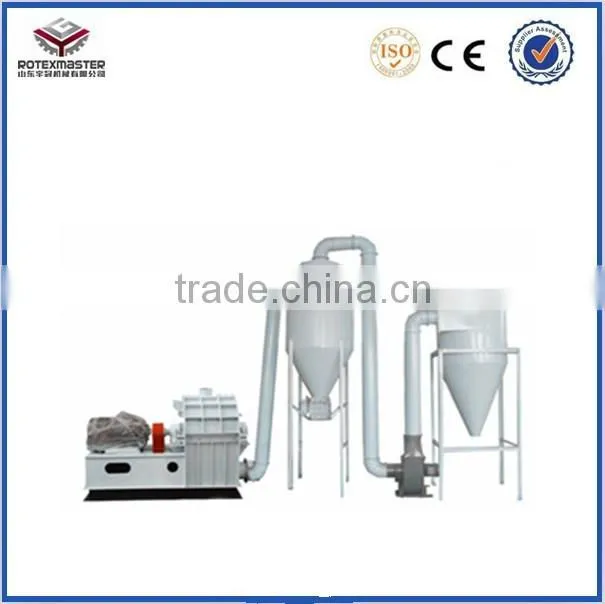

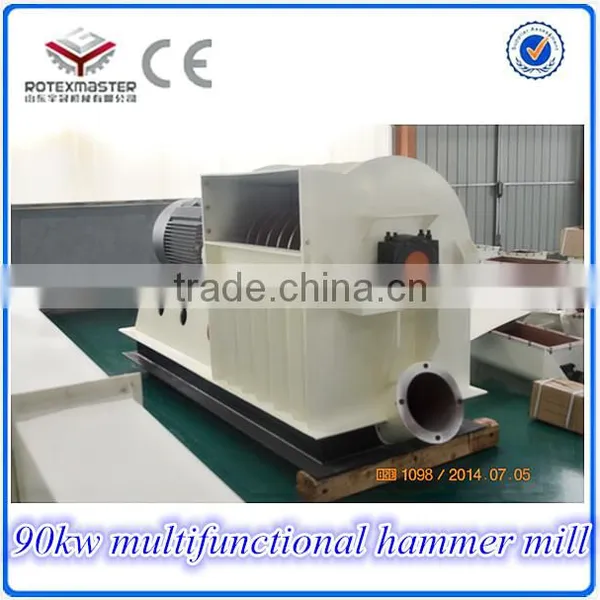

Product Show
Service
Guarantee period is one year (except wearing parts), since the date of purchasing.
24- hour technical supports
Design product according to the customers requirement.
We provide available price.
Company Show
ROTEX is an enterprise combined of science and technology, which is specialized an manufacturing and installation training and international trade. Especially in the energy shorttage today, starting from customers' interests, standing in the perspective of customers, to provide our customer the best service, we should like to use our professional knowledge and design the most suitable chart flow and produce the best much better products.
We are doing biomass fuel machinery, fodder farming machinery, and supporting the auxiliary equipment of dryer, cooler, dust removal equipment and other machinery products, the main products: wood pellet machine, feed pellet machine, drum wood chipper and hammer mill, rotary dryer, cooling equipment, conveyors equipment and other auxiliary equipments.
Thanks for reading my product information. If you have any questions, please don't hesitate to contact me.Then I will provide you the best and professional srevice.
