Hammer mill price wood chips grinder in wood pellet production line

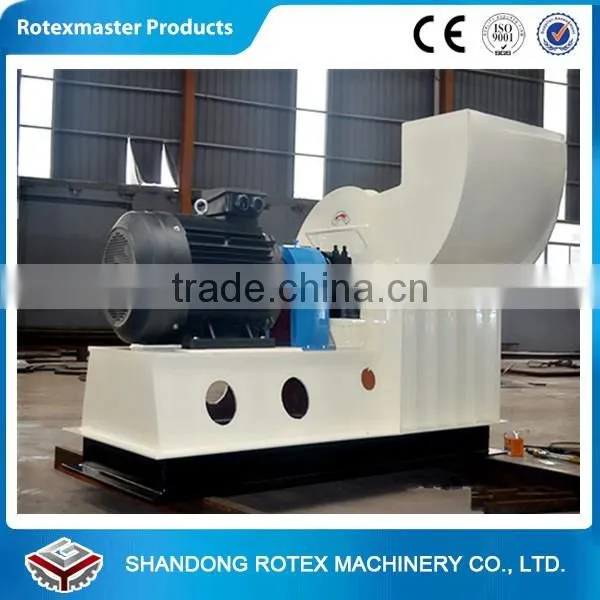

ROTEX YSG65*55 HAMMER MILL >>
Model |
YSG65*55 |
Power(kw) |
37 |
Capacity(t/h) |
1-2 |
Hammers |
48 |
Weight (t) |
1.5 |
Dimensions(mm) |
1700*1000*1100 |
The YSG hammer mill widely used to grind wood chips, wood shavings, small branches, straw(wheat straw and corn straw, cotton straw etc.), rice husk, corn bob, leaves and other wood wastes, agricultural wastes.
YSG hammer mill working principle

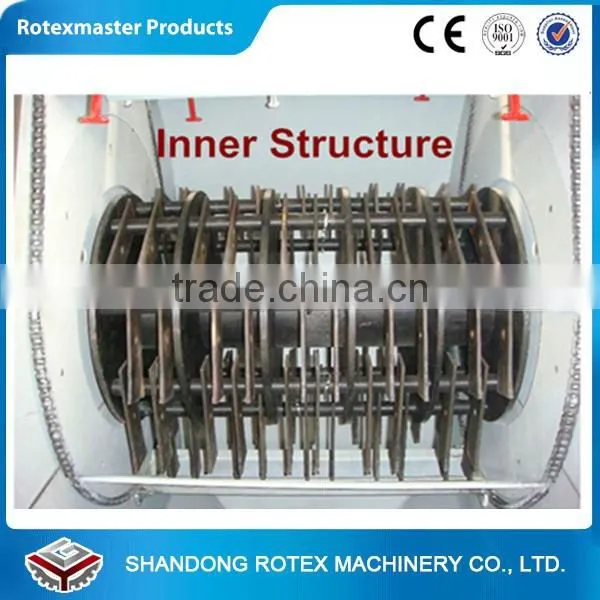

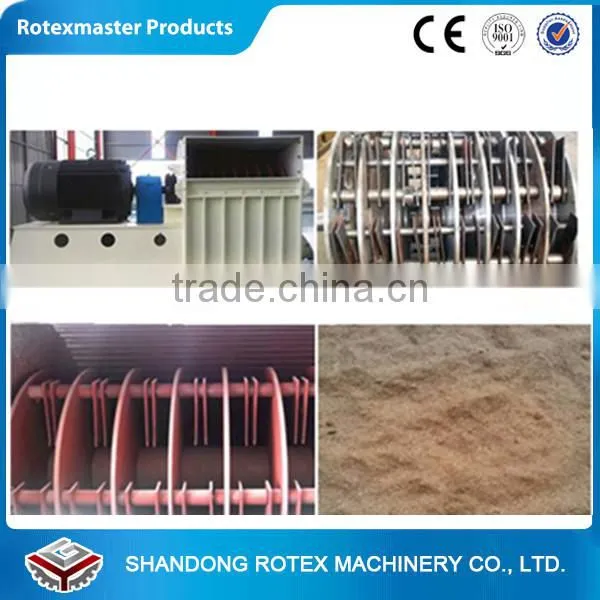

1. Materials enter into grinding room, shocked and grinded by hammers which rotate with high speed with large power. Then the grinded materials screened by the sieve.

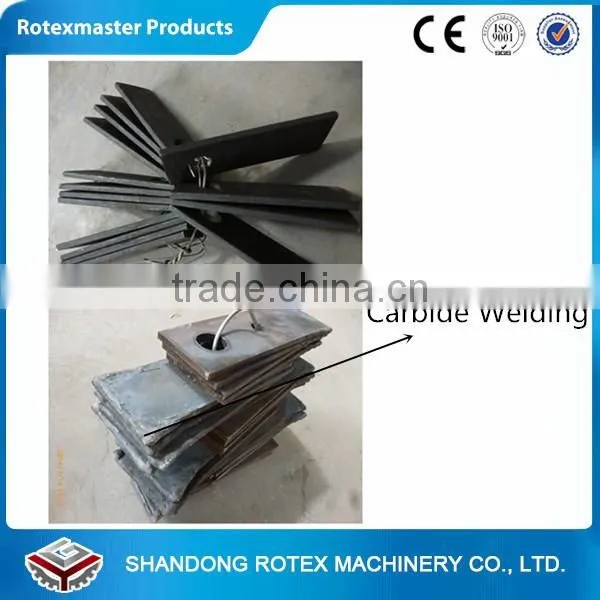

To protect hammers and extend its lifetime, there is Carbide Welding on the head of hammers.

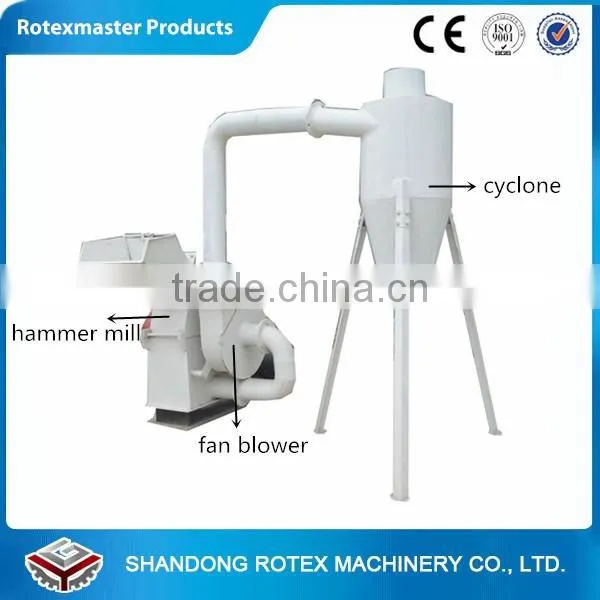

2. The grinded material like wood sawdust is light, can not dishcarge itself, a fan blower is needed to discharge the grinded materials.

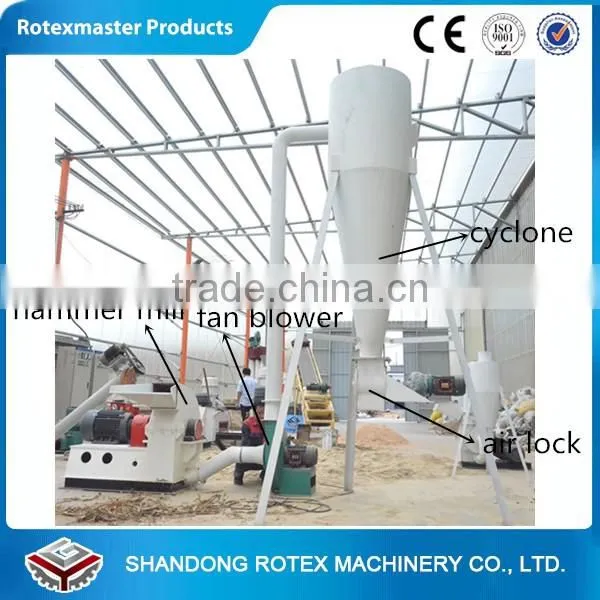

3. For the environmental-protection, we advise the hammer mill work equiped with one set dusting equipments: cyclone, air lock and bag dust collector.
Finished product of hammer mill
The finished product of YSG hammer mill size about 3-12mm, commonly used sieve is 5mm, 6mm, 8mm.

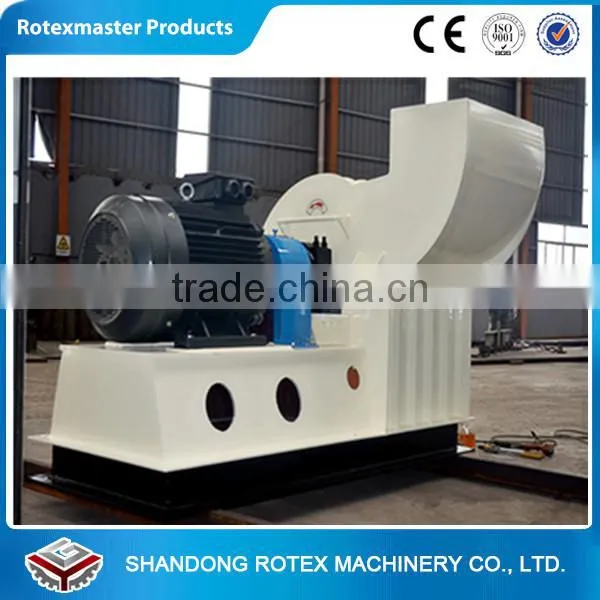

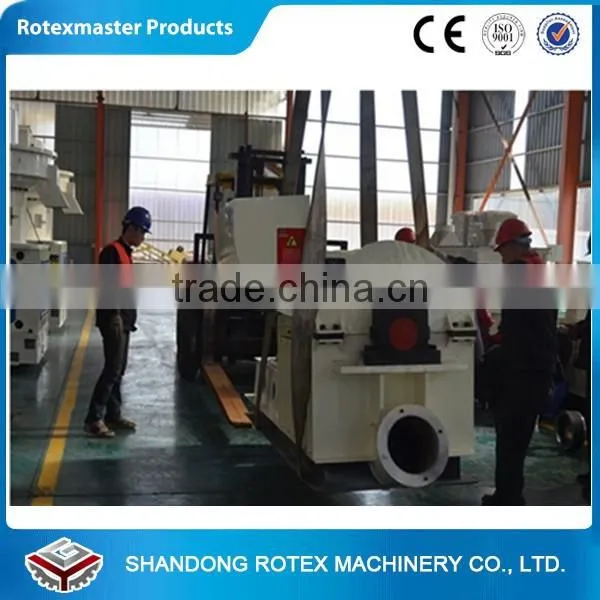

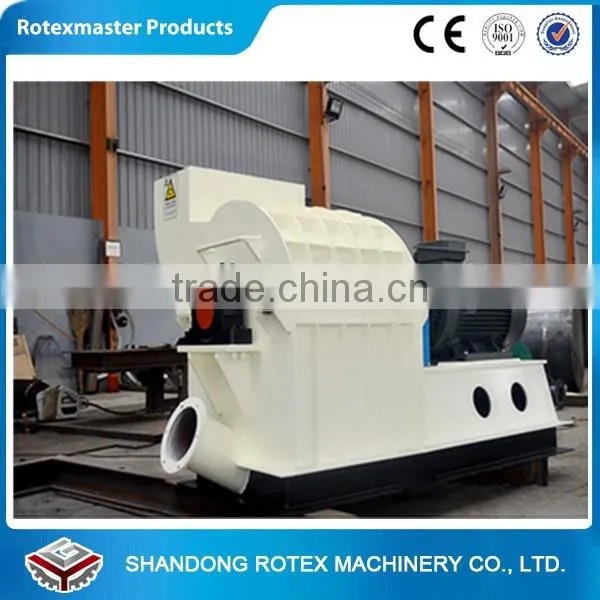

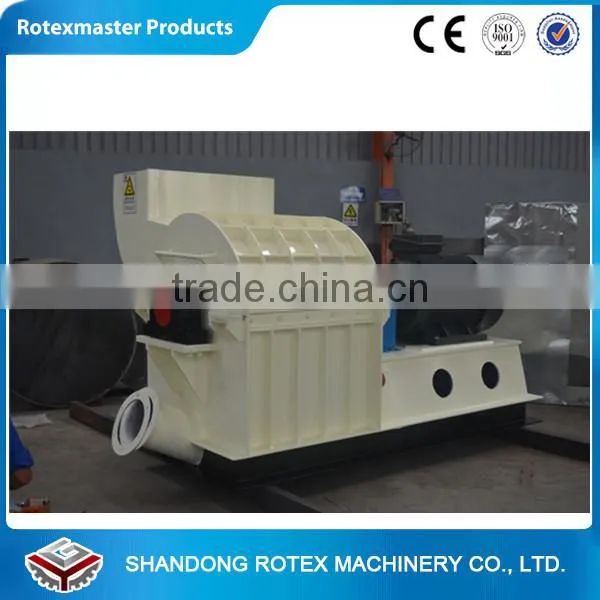

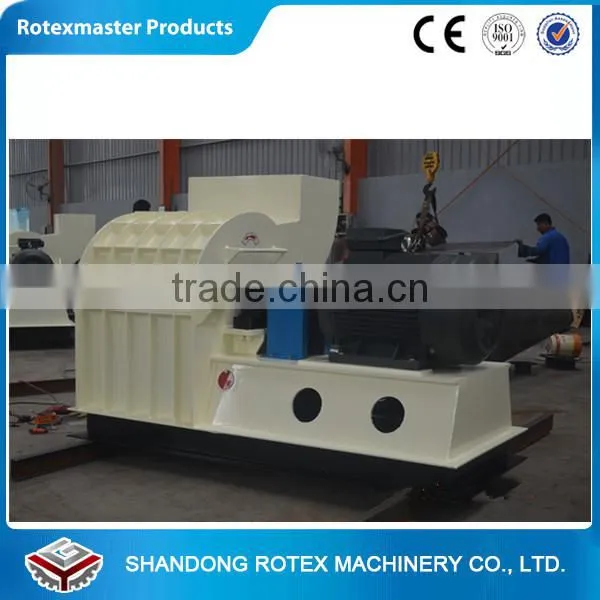

ROTEX YSG HAMMER MILL SHOW >>
The YSG series hammer mill has some different models for different capacity, different power etc., meet client's requirements.
YSG HAMMER MILL TECHNICAL PARAMETERS SHOW >>
Model |
Power(kw) |
Capacity (t/h) |
Hammers qty. |
Weight (t) |
YSG40 |
7.5 |
0.2-0.5 |
16 |
0.27 |
YSG50 |
15 |
0.6-0.8 |
16 |
0.45 |
YSG65*27 |
22 |
0.8-1.5 |
24 |
1.1 |
YSG65*55 |
37 |
1-2 |
48 |
1.5 |
YSG65*75 |
55 |
2-3 |
72 |
1.9 |
YSG65*100 |
90 |
3-4 |
96 |
2.3 |
YSG130*55 |
110 |
5-6 |
80 |
5.3 |
YSG130*100 |
160 |
7-8 |
160 |
6.8 |
For small capacity requirement, we advise the YSG40 / 50 hammer mill, less invest and easy operation.

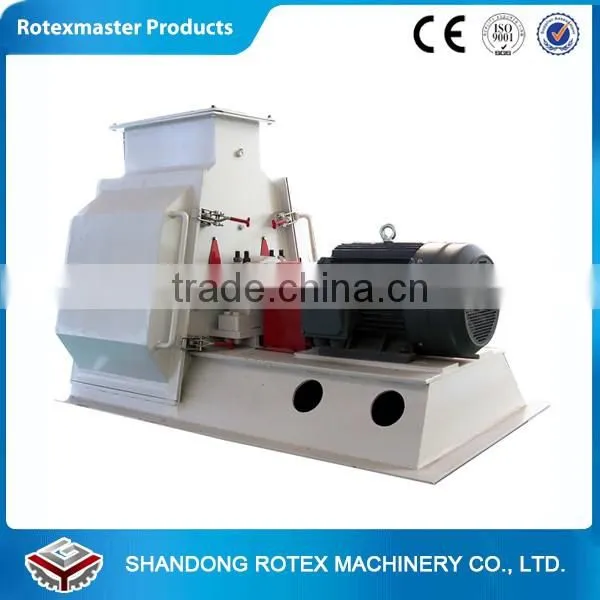

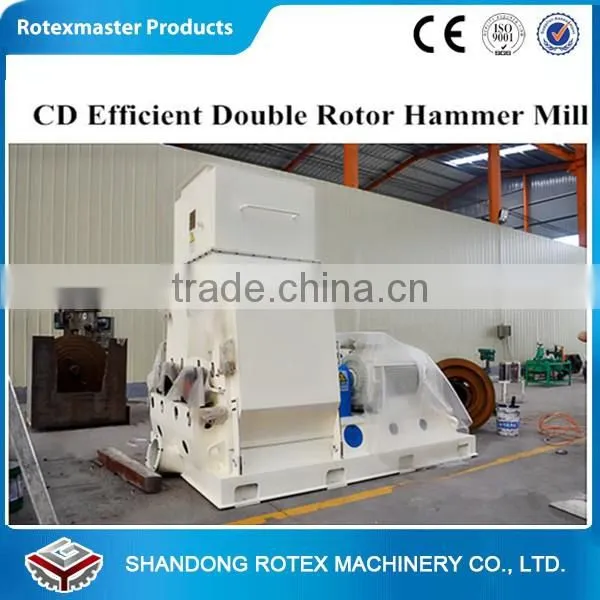

For large capacity, we advise the double motor hammer mill

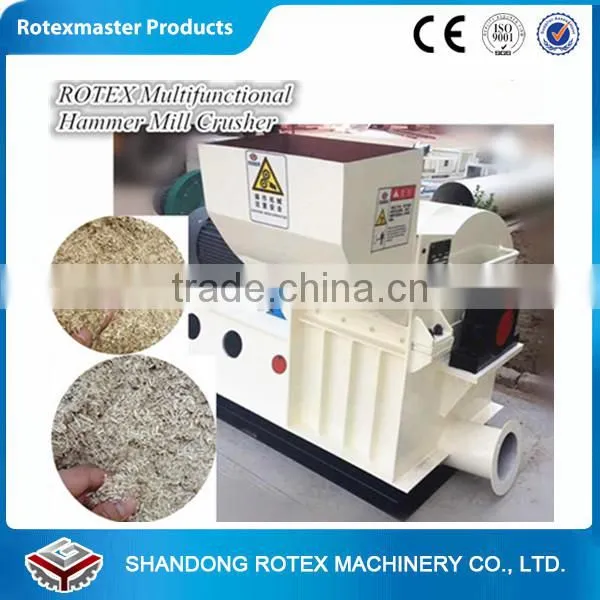

Fiber hammer mill

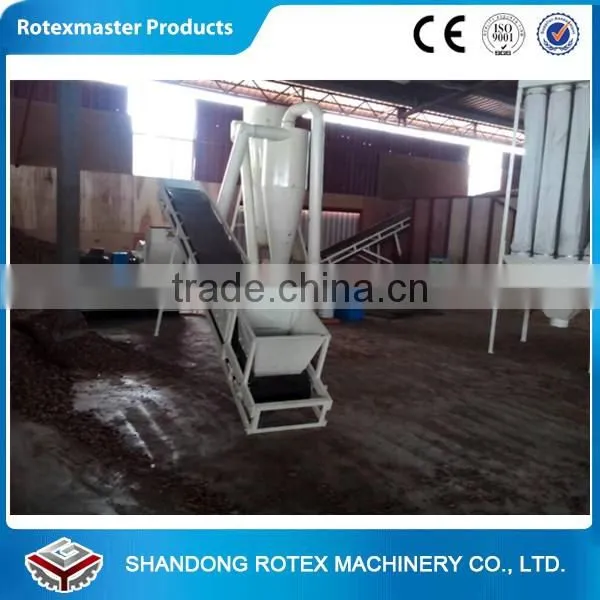

The hammer mill is widely used in wood pellet production line, client case show:
AFTER-SALES SERVICE >>
1.Company adhere to the " Service & Quality First, Brand & Reputation First " Principle to provide our customers the best quality service. Welcome thecustomers to visit our factory.
2.Our professional service includes: free training, guidance, installation, and debugging.
3.After selling, we provide the warranty of one year.
4.If you have any problems, we will help to solve on line or live in time.

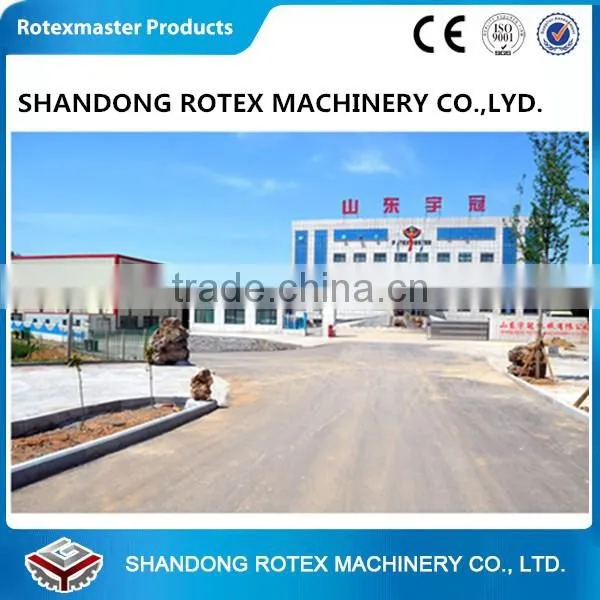

5.Welcome to visit our factory. Our factory located in Zhangqiu, Jinan City, Shandong Province, China. You can take plane to Yaoqiang Airport, Jinan City, we will pick you up from airport to our factory.
FAQ >>
1. What materials suit to the hammer mill, can it crush big wood?
Rotex: Materials suit to hammer mill is wood chps, wood shavings, straw etc, it can't crush big woods, if your material is big wood, we advise the wood chipper machine.
2. Can the hammer mill grind wet or fresh materials?
Rotex: No, the hammer mill requires materials within 30% moisture, if the moisture is high, then it will jam the sieve, and the hammers lifetime will reduce.
3. Is there much dust in air when the hammer mill working?
Rotex: There is not dust in air when hammer mill equiped with cyclone, air lock and bag dust collector.
Thanks for reading our information, if there is any interest or any questions, please don't hesitate to contact me.
If the YSG hammer mill is not suit to your requirements, please kindly tell me, I will advise you the suit model.
