CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill

CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-1
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-2
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-3
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-4
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-5
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill thumbnail-6
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-1
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-2
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-3
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-4
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-5
CE Approved Biomass High Quality and High Output Multifunctional Hammer Mill photo-6
US$ 3,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ROTEXMASTER
Contact Supplier Request Quote Chat Now
Shandong Rotex Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Chian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name ROTEXMASTER
Model Number YSG65*27 Hammer Mill
Voltage 380V-440v as clients requirements
Power(W) 22kw
Dimension(L*W*H) 1500*1000*1100mm
Weight 6.8T
Certification CE & ISO9001 & SGS
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

CE approved biomass high quality and high output multifunctional hammer mill







 ≥ Advantages for multifunctional hammer mill



(1) The motor and rotor are installed in the same heavy-duty base, using coupling direct drive,



rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.



(2) Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.



(3) The shell is welded by steel plate, the site in the crush room which connects to the



 materials all use the wearable and commutative parts and double wear plate.

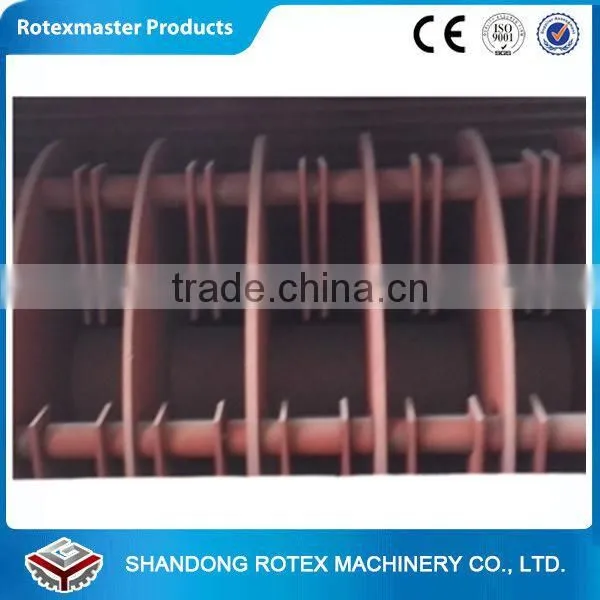

(4) Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly



≥ Technical Parameters for multifunctional hammer mill



       Model

 Motor power

     (kw)

Capacity

   (t/h)

       Dimensions

           (mm)

 Weight(t)

  Hammer qty

       (psc)

YDF40

7.5

0.2-0.5

1310*800*1070

0.27

12

YDF50

15

0.6-0.8

1380*800*1010

0.45

16

YDF65*27

22

0.8-1.5

1500*1000*1100

1.1

24

YDF65*55

37-45

1-2

1700*1000*1100

1.5

48

YDF65*75

55-75

2-3

2100*1000*1100

1.9

72

YDF65*100

90-110

3-4

2400*1000*1100

2.3

96

YDF130*55

110-160

5-6

2800*1620*2100

5.3

80

YDF130*100

160-220

7-8

3020*1620*2170

6.8

160

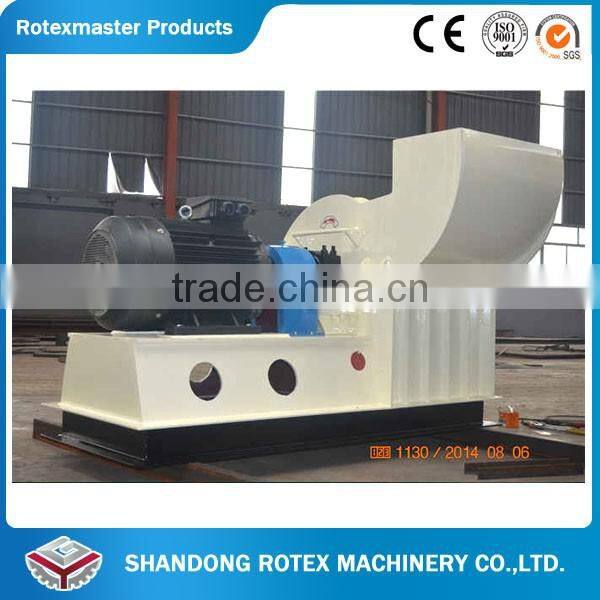

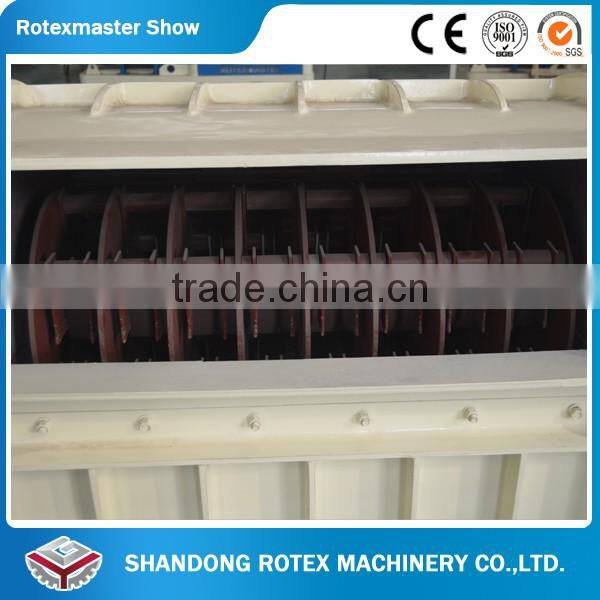

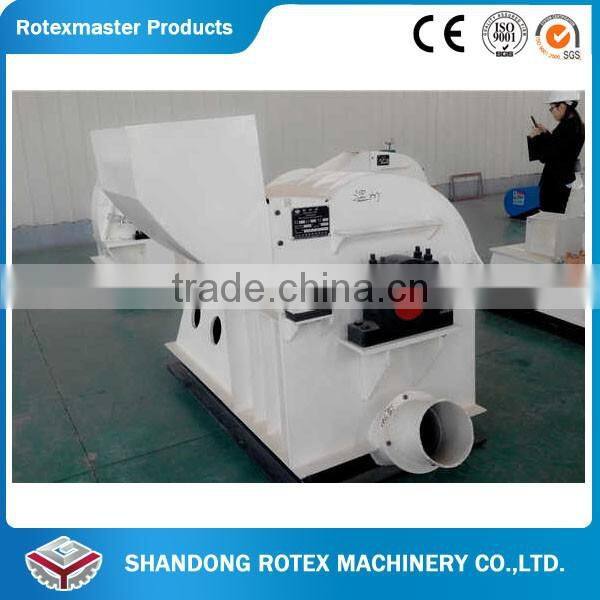

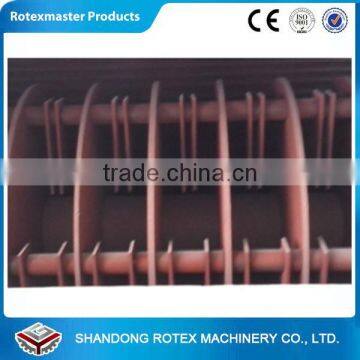

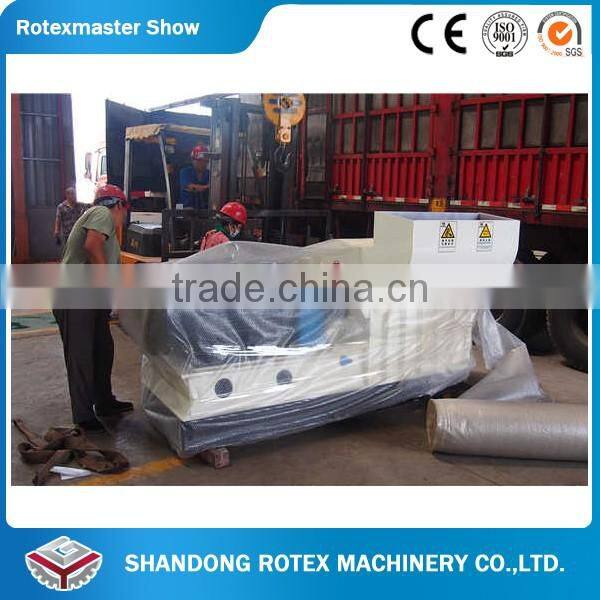

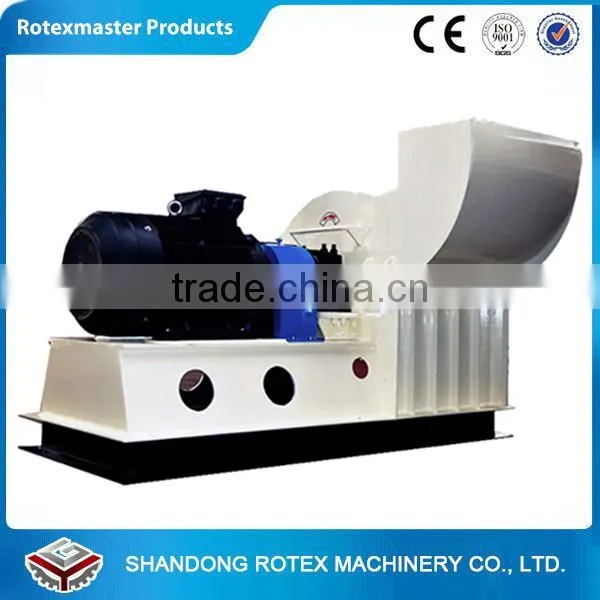

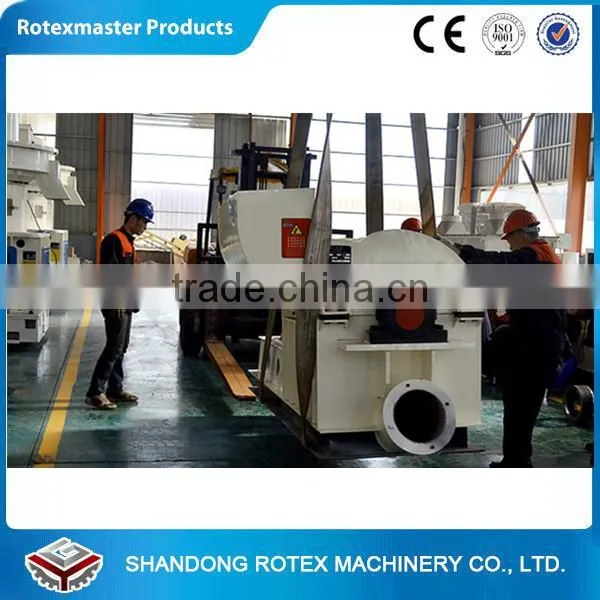

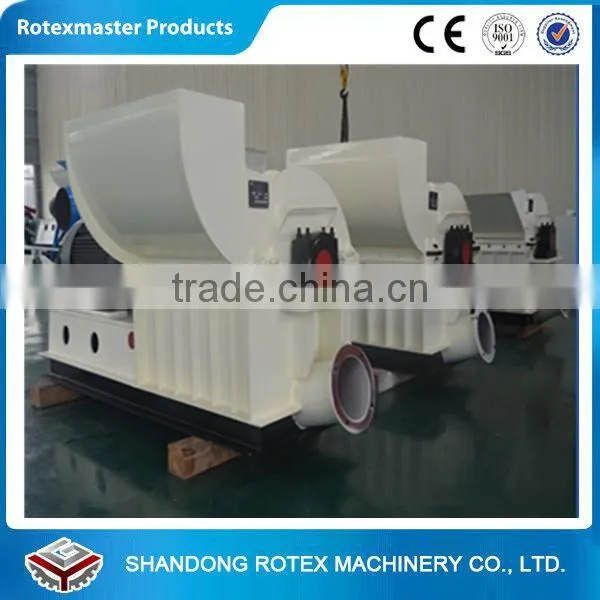

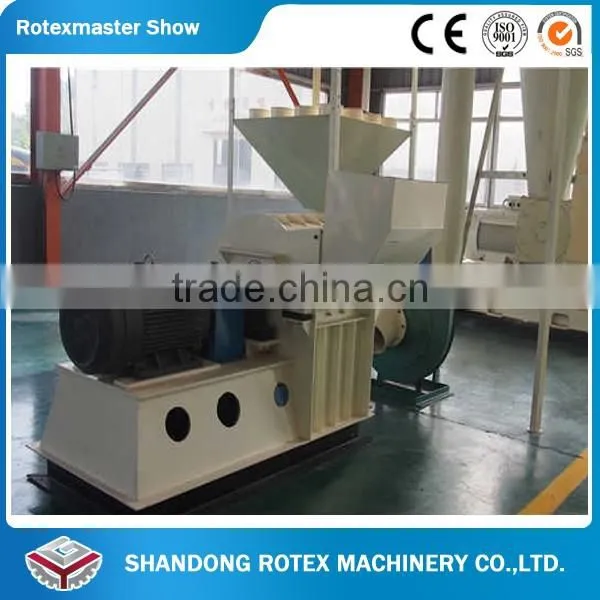

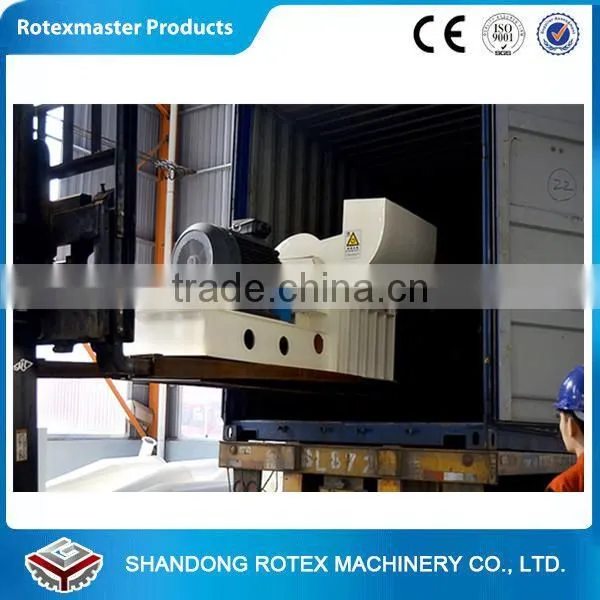

≥ Picture Show for multifunctional hammer mill



 CE approved biomass high quality and high output multifunctional hammer millCE approved biomass high quality and high output multifunctional hammer millCE approved biomass high quality and high output multifunctional hammer millCE approved biomass high quality and high output multifunctional hammer millCE approved biomass high quality and high output multifunctional hammer mill

 CE approved biomass high quality and high output multifunctional hammer mill
