High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-1
High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-2
High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-3
High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-4
High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-5
High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer With Cyclone With CE photo-6
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Drum Drying Equipment
Place of Origin Shandong, China
Brand Name ROTEXMASTER
Model Number YGHG1.5*12m rotary dryer
Voltage 220v-415v
Power(W) 5.5-37kw
Dimension(L*W*H) Customized Dry Machine
Weight 2t-15t
Certification CE ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE

Whatsapp/Wechat/Linkin:+86-18615687600   Skype:pelletindustry03



Full set rotary dryer technical parameters>>

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE

ROTEX MASTER YGHG Series rotary dryer widely used for drying wood chips,wood sawdust,bamboo sawdust,olive waste etc.The dryer entering temperature 400-600℃,stove or biomass burner providing heat for dryer,the outlet temperature 60-90℃,usually,if clients used the rotary dryer in biomass pellet production line,the drying sawdust need to be stored in the silo,because the sawdust temperature is high,dont making pellets directly.

In addition,there are 3-5°slope when install the rotary dryer,so make sure the sawdust could be dried frequently,has high efficient,easy to operate,no quick change parts.

---------------------------------------------------------------------------------------------------------------------------------

Technical parameters for Full set YGHG1.5*12m Rotary Dryer

Name:YGHG1.5*12m Rotary Dryer

Feeding belt:50*10m or 50*12m--1.5kw

Rotary dryer motor power:7.5kw(Siemens beide motor)

Fan blower:4-72-18.5kw

Cyclone:φ 1300

Air Lock:Front--YBFQ-16 3kw Behind--YBFQ-7 1.5kw

Thickness of rotary dryer:12mm

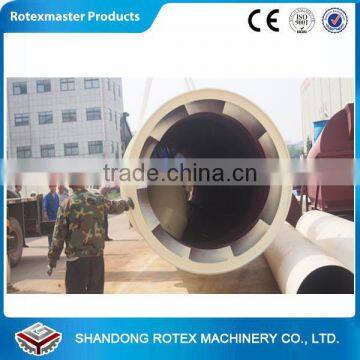

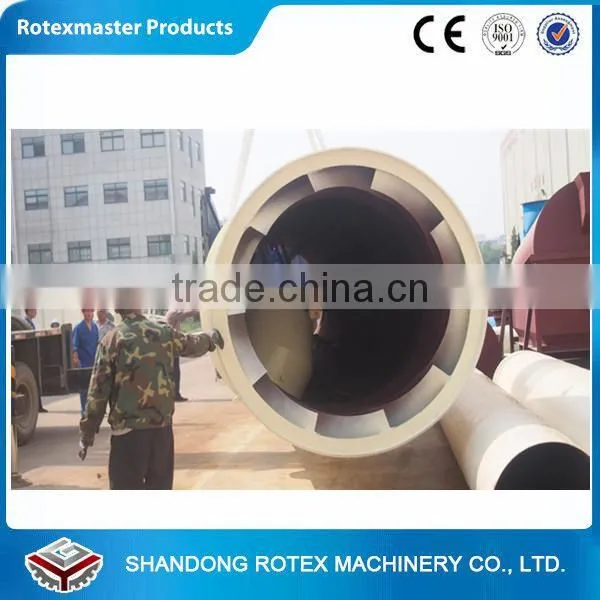

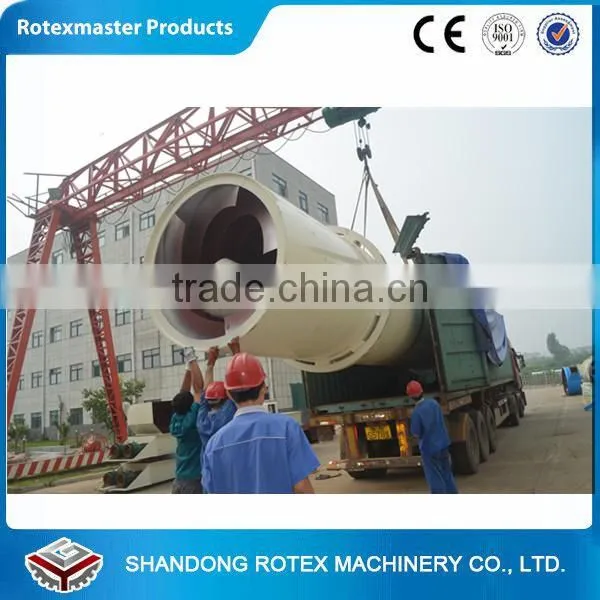

Picture Show for Rotary Dryer>>

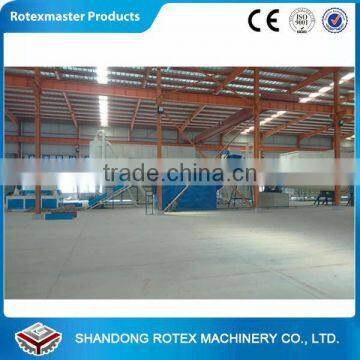

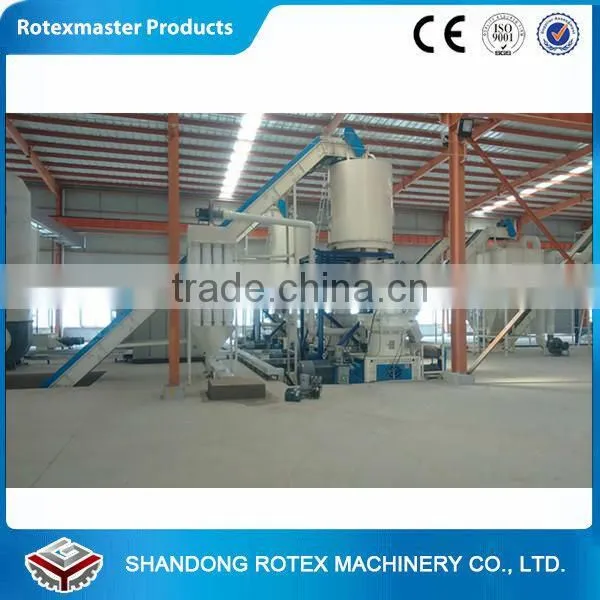

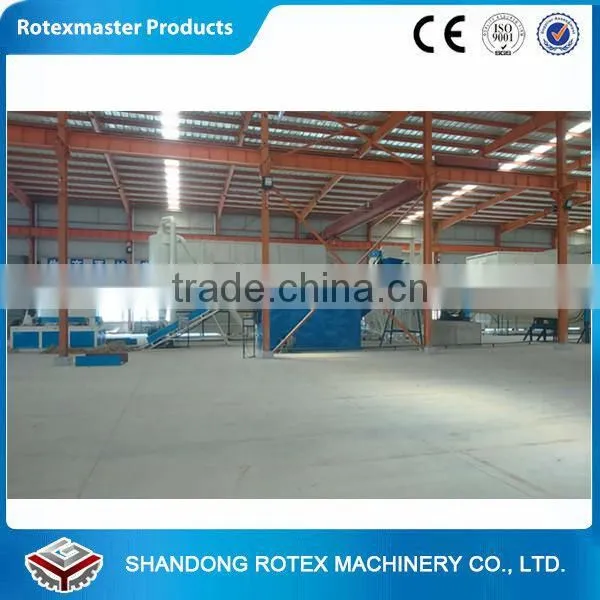

Rotary Dryer Installed In Customer Factory Site

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CEHigh Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CEHigh Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CEHigh Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CEHigh Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CEHigh Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE

Rotary Dryer Heating System

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE

Rotary Dryer CE Certification

High Efficiency Wood Shavings Dryer, Wood Chips Dryer and Wood Sawdust Dryer with cyclone With CE
