2015 Low Price Cooler Silo for Cooling Biomass Wood Pellets into Good Wood Pellets
Email :machine10(at) , Tel / Whatsapp / Wechat:+8618615687610 , Skype:pelletmachine10

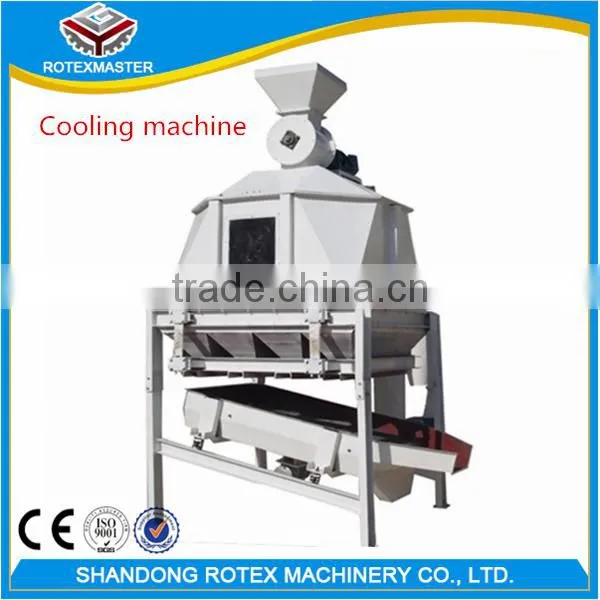

Counter Flow Cooler Machine is currentlty the more advanced new cooler ; it uses the principle of counter current , Cooling the high temperature and high humidity materials .
Vertical Wind Pass through the material layer , and touch the materials first , then the wind turn hot gradually and touch with the hot wood pellets , the wind direction is opposite with the raw materials direction , make the pellets cooled gradually, avoiding the pellets surface cracks due to its sudden cooling by touching with the cold wind . The air enters into the cooler from its bottom fully , wide entering area, high utilization rate, low energy consumption, easy operation, the cooling effect is remarkable.
Particles cooled sufficiently and evenly , using a unique slide value is a mechanical vibration nesting , smooth operation, nesting smooth , granular temperature after cooling is not higher than 3-5 degree .
Specificationand technical details of Counter-flow Cooler Set
| No. | Product Name | Model | Power | Technical Details | Pictures |
| 101 | Air-Lock | BFY-7 | 1.5KW | 1.Product name:Air Lock 2. Model: BFY-7 3. Power :1.5kw 4. Application: air-lock the wind
| |
| 102 | Counter-Flow Cooler | YSKLN-1.5 | 1.5+0.25KW | 1. Product Name: Counter-Flow Cooler 2. Model:YSKLN-1.5 3.Capacity:1-2t/h 4.Power:1.5+0.25kw 5. Application : cooling wood pellets / animal feed pellets ( making | |

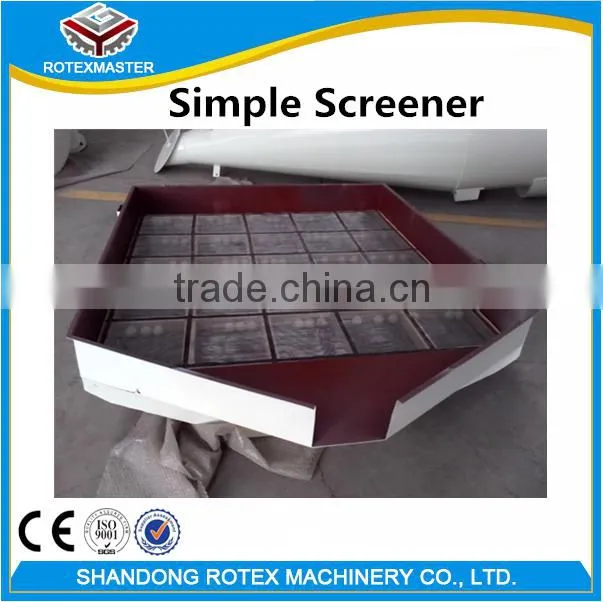

| 103 | Simple Screener | JD110×80 | 0.25kw | 1. Product name: Simple screener 2. Model:JD110×80 3. Capacity:1-2t/h 4. Power :0.25kw 5. Application: Screening out good pellets and bad pellets , making finished wood pellets good effect | |

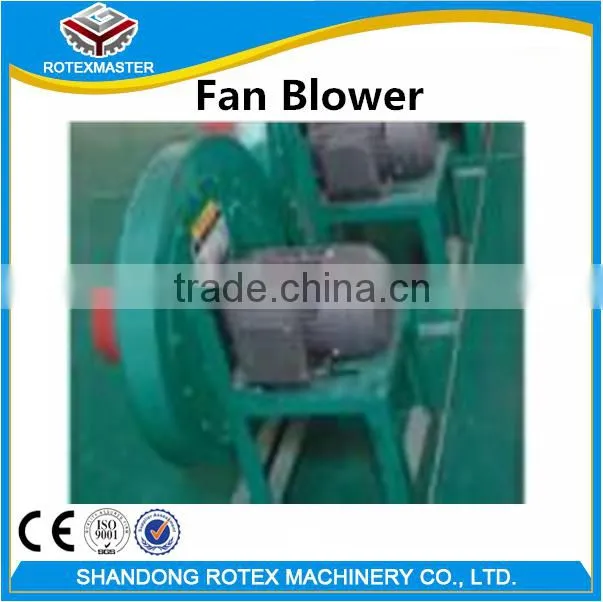

| 104 | Fan Blower | 4-72-4.5A |
7.5kw | 1.Product Name: Fan Blower 2. Power:1.5kw 3. Model :4-72-4.5A 4. Application: Direct connect, many fan blower, transmit the material smooth | |

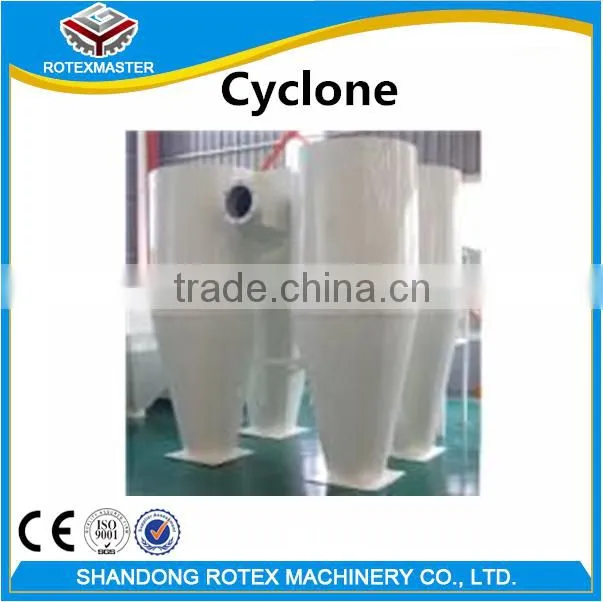

| 105 | Cyclone | Φ1000 | 1. Product name: Cyclone 2. Model:Φ1000 3. Dedusting and discharging
| | |
| 106 | Air Lock | BFY-16 | 4kw | 1. Product name: Air lock 2. Model:BFY-16 3. Power:4kw 4. Application:air lock the wind and discharging | |
The technical Parameter of the Cooler for Cooling Pellets:
Model | Capacity (t/h) | Cooling volume (m³) | The total power (kw) | Air volume (m³/h) | Cooling time (min) | Wind pressure
| Material temperature after cooling℃ |
YSKLN1.2 | 0.8-1.2 | 1.2 | 0.18 | 5000 |
Less than 10min |
200mm H20 |
Room temperature +3~5℃ |
YSKLN1.5 | 1.2-2 | 1.5 | 0.25 | 9000 | |||
YSKLN2.5 | 2-4 | 2.5 | 0.25 | 13500 | |||
YSKLN4 | 4-6 | 4 | 0.37 | 18000 | |||
YSKLN6 | 5-8 | 6 | 0.37 | 27000 |
Feature of Counter Flow Cooler For Cooling the Wood Pellets
1. After cooling pellets temperature don’t exceed room temperature +3-+5°C.
2. Shut down automatic nesting with the unique effect, to avoid cross-contamination between feed.
3. Unique nesting box nesting force.
4. SKLN series with the secondary spiral separator used in combination.
5. Suitable for cooling a variety of pellets material.

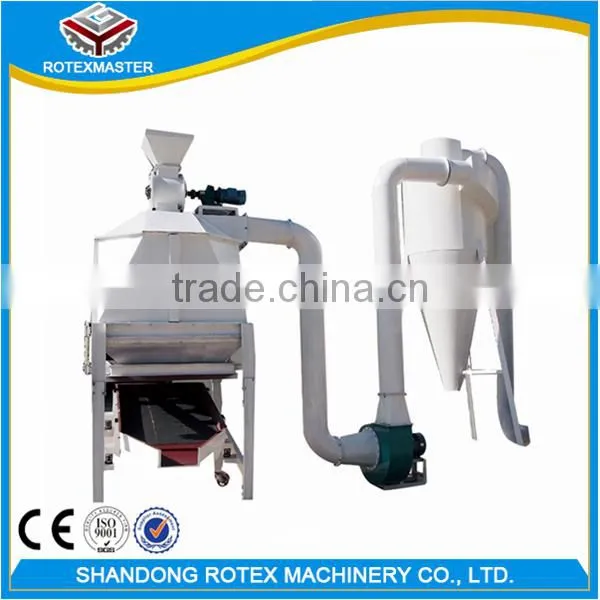

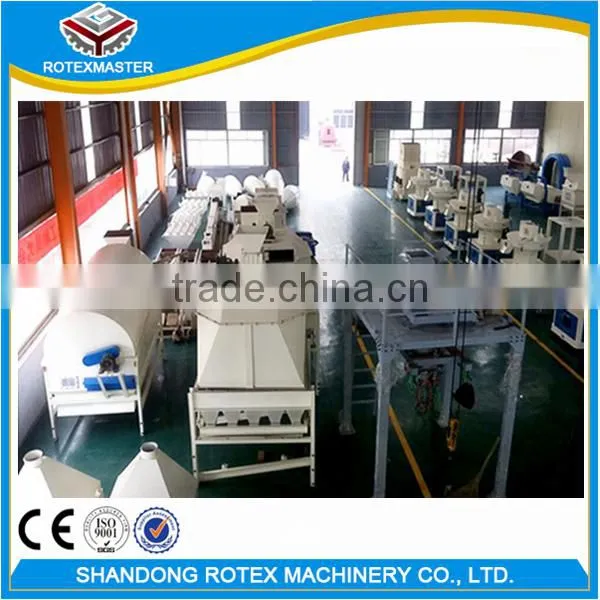

PICTURE SHOW
Caring service, carefully manufacture and desirable price make customers at ease.
"Customer-oriented", providing customers with whole considerate services;
"Service as core," providing the most suitable products to customers;
"Quality-centered," All-round services to every customers!
Technical support: on-site technical training and technical advice available.
