Palm pellet burner for 4ton fuel coal/oil/gas boiler
Tel/Wechat/Whatsapp:+86 18615687606 Skype:pelletmachine06
The 900000 kcal biomass burner , the 200000-1200000 kcal biomass like the picture show
The 2400000 kcal biomass burner on Guangzhou Exhibition
Biomass Burner Description >>
Biomass burner is the equipment of changing forest waste, scraps into high quality fuel gas, no harmful emission, protects the limited fossil resources, use the renewable energy enough, in line with the world, especially the energy conservation and emission reduction national conditions of our developing country.
The temperature can up to 800-1300°C, the length of flame can be 3-4 meters.
Wide application of Biomass Burner >>
Biomass burner is suitable for steam boiler, fuel oil, gas, coal boiler, various kinds of organic spray drying equipments, large-scale farming factories, cereal and food drying, tobacco drying, various kinds of large, medium, small workshops, greenhouse heating and etc.
Technical Details of Biomass Burner >>
Model | Calorific value (kilocalorie) | Power (Kw) | Consumption of fuel(Kg) | Weight (T) | Dimension (mm) | Equipment protection way |
YGF20 | 20 | 0.75 | 50 | 0.6 | 1900*910*1710 | air-cooled |
YGF30 | 30 | 0.75 | 75 | 0.7 | 1920*925*1750 | |
YGF45 | 45 | 1.12 | 115 | 1 | 1830*1100*2130 | |
YGS/F60 | 60 | 1.9 | 150 | 1.6 | 2340*980*2180 | water-cooled |
YGS90 | 90 | 3.1 | 225 | 2.2 | 2340*980*2180 | |
YGS120 | 120 | 3.7 | 300 | 3 | 2790*1190*2400 | |
YGS180 | 180 | 5.25 | 450 | 3.8 | 2900*1300*2400 | |
YGS240 | 240 | 8.45 | 600 | 4.8 | 3180*1490*2400 | |
YGS300 | 300 | 10.45 | 750 | 8 | 3800*1950*3130 | |
YGS360 | 360 | 10.45 | 900 | 9 | 3950*2100*3270 |

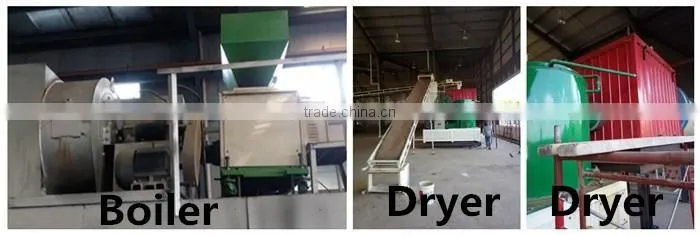

The usage of biomass burner
Details of the biomass burner >>
1, burner mouth :connect with boiler or dryer. according to the size of your boiler, then design the burner mouth for you.
2, water inlet. Cool water can enter into the water interlayer from here. This is water cooling system, thus can reduce the temperature of burner.
3, water outlet.hot water can be come out from the water outlet.
4, air increasing fan, there are two air increasing fans in it. One of them for burner mouth, and anther one is for bottom of burner. for sufficient burning.
5, igniting hole, for ignite the biomass burner automaticly.,
6, ash discharge hole , for cleaning some times.
7, view hole, we can watch the flame situation the fire of burn.
8, feed inlet connect with pipe, so the material be entered into from here.
Send Inquiry
After-Good Services of Biomass Burner >>
Caring service, carefully manufacture and desirable price make Customers at ease.
"Customer-oriented", providing customers with whole considerate services;
"Service as core," providing the most suitable products to customers;
"Quality-centered," All-round services to every customers !
Technical support: on-site technical training and technical advice available.
