Advanced Design Good Performance Automatic Wood Shaving Making Machine

FOB Price

US$ 1,050 - 6,500 / Set

1 Set(Min. Order)

Port Qingdao Guangzhou Beijing Ningbo Shanghai Zhengzhou etc.
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Making Wood Shavings, Animal Bedding, etc., animal farm, furniture manufacturer, paper mill, etc.
Production Capacity	1500~2000KG/H	Place of Origin	Henan, China
Brand Name	WELLY	Model Number	WYWS-800
Voltage	380V	Power(W)	37kw
Dimension(LWH)	18008001100mm	Weight	450kg
Certification	CE ISO, ISO9001, CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

♦ Advance design good performance automatic wood shaving making machine

Product Description

I. The brief description of automatic wood shaving making machine

♦ Wood shaving making machine can process wood timber into thin wood shavings. Because it uses the cutters(blade) inside to cut, so this machine also named blade type wood shaving machine.

♦ The wood shaving making machine instead of handworked to process shavings. It’s more convenient, high efficiency and faster than traditional wood shavings machine.

II. Working principle of automatic wood shaving making machine

♦ The wood shaving making machine’s working capability improve 80% than traditional wood shaving machine.

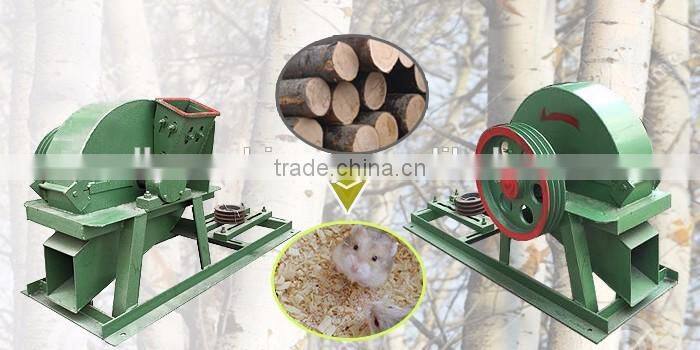

♦ The feeding port adopts automatic feeding device, the wood timber go through feeding port into machine, the wood be cut by blade(cutter), then be blow out of the machine by fan blade of cutters, then users can get uniform wood shavings. The thickness of wood shavings can be adjusted freely.

Parameter
Modle	Quantity of Blade (pcs)	Inlet size (mm)	Cutter diameter (mm)	Blade size (mm)	Capcity (t/h)	Speeds of spindle (r/min)	Power (kw)	Machine size (mm)
WYws-400	4	120x180	420	90x60x8	0.4-0.6	450	7.5/11	1200x500x800
WYws-600	4	180x200	600	150x70x8	0.8-1.2	450	15/18.5	1550x630x950
WYws-800	6	250x250	800	150x100x10	1.5-2	400	37	1800x800x1100
NOTE:1.All models wood shaving making machine can use diesel engine power. 2.Our factory also produces larger type,such as:WYWS-1000,WYWS-1500. 3.More models Please consult the customer service.

III. Usage of wood shaving making machine

♦ Wood shaving making machine meets the rising demand in the market.

♦ The wood shaving making machine is with wide applications, which is suitable for furniture manufacturer(make shaving board, plywood, etc.), paper mill(raw materials of wood pulp paper), logistics transportation(as infill materials), animal farm(animal bedding infill), besides, it can also used for biological energy source.

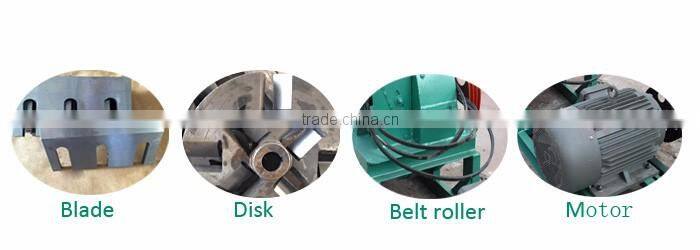

IV. Part of wood shaving making machine

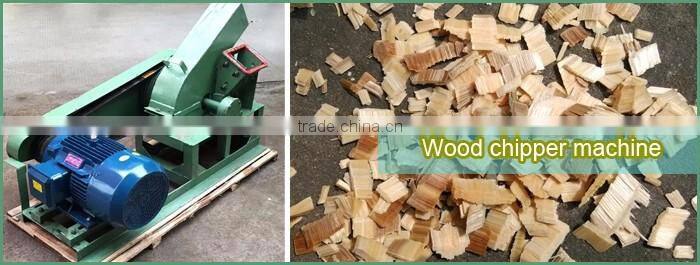

V. Related products

Our Services

Pre-sales Service

After-sales Service

* Before sending the machine, we will test and adjust,

so you can use directly when you get it.

* Operation instruction will be sent to clients,

to help them use better.

* Provide professional and good service.

* Provide high quality products with best price.
* Customize the machine according to clients special requirements.
* Visit our factory.

* All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

* Additionally, our company provides technical support and fittings for life.

*After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
