2016 Hot Sale!CE Certificate RD508MX Ring Die Pelleting Wood Sawdust Pellet Making Machine

Professional real manufacturer of pellet making machine!

2016 Hot sale!CE certificate RD508MX ring die pelleting wood sawdust pellet making machine

Details of RD508MX sawdust pellet making machine:

RD508MX Model,main power:160kw

Capacity:1.5-2.5t/h according to the raw material

Feeder power:2.2kw

Die Dia:508mm

Pellet size:6-12mm

Ring die pelleting

Gear drive

A) Gearbox Assembly:

Stainless Steel Pellet Die Chamber and Backing Plate with Metal-to-Meal Seal.

One Piece Alloy Steel Quill Shaft.

One Piece Alloy Steel Main shaft.

Top&Bottom Knife Assembly.

Two Complete Roller Assemblies.

Stainless Steel Quick Dump Feed chute.

Dual Shear Pins for Die and Drive Train Overload Protection.

B)Conditioner:

Stainless Steel Mixer

One Drive Motor

C)Magnetic spout:

Permanent Magnet in Stainless Spout between Feeder and Conditioner.

D)Feeder:

Stainless Steel Feeder Housing.

 with variable frequency Motor

Features

1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm³;

3. Feeder, conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which protects the machine during production;

5. Feeder has a variable speed controller to meet different outputs requirements;

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;

7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability and high quality;

8. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make  slippery pellets of the highest quality.

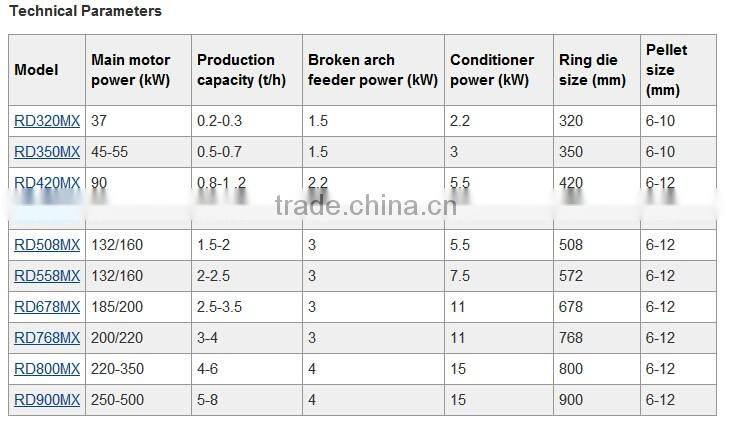

Main Technical Parameters

About us:

 We are specialized in designing and manufacturing biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.

 The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.

Liyang Rongda Machinery CO.,LTD. located in Daitou Industrial Zone with 25000 square meters area,Liyang city,Jiangsu province,China.

Goods are made by Rongda Company.

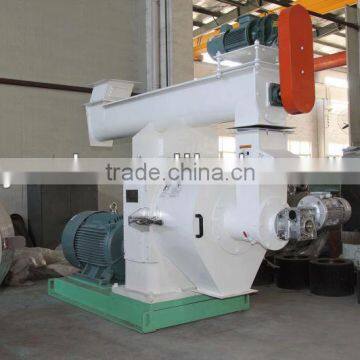

 Pellet machine

Finished pellet from the pellet machine.

Our certificates:ISO9001:2000,CE,GOST,SGS

Delivery Management: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.

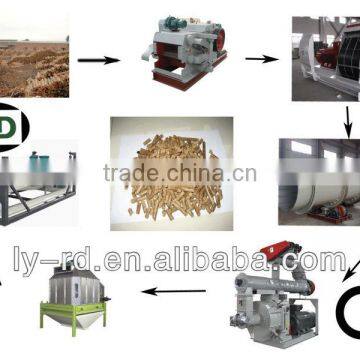

wood sawdust pellet making machine line Production Sequence

1. Drying Process

 2. Pelletizing Process

3. Cooling and Sieving Process

4. Packing Process

About Service

We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.

Our professional service includes: Free training, Guidance Installation and Debugging.

Guaranteed Time: One Year

If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.

Thank you for your reliance and support!

Frequently Asked Questions:

 1. Q: Are you a trading company or a manufacturer?

    A: We are a manufacturer, which has almost 20 years of experience in this industry.

 2. Q: How can I get to your company?

    A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport.

You may also come to our city,Liyang city by High speed Railway,just 20-30mins.

3. Q: How long is your guarantee?

    A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.

4. Q: Will you send engineers to install the plant?

    A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

5. Q: Do you have some foreign customers using your equipment?

    A: yes, we have.our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.

Why choose from us?

A.Good reputation

Because of the good quality and credit,our company are with good reputation both at home and abroad.

B.Factory direct supply

This ensure the competitive price available and brand care.

C.Advanced technology adopted

American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.

 D.Best and reasonable structure design of the pellet mill

This make sure the durability of the machinery running.

Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
