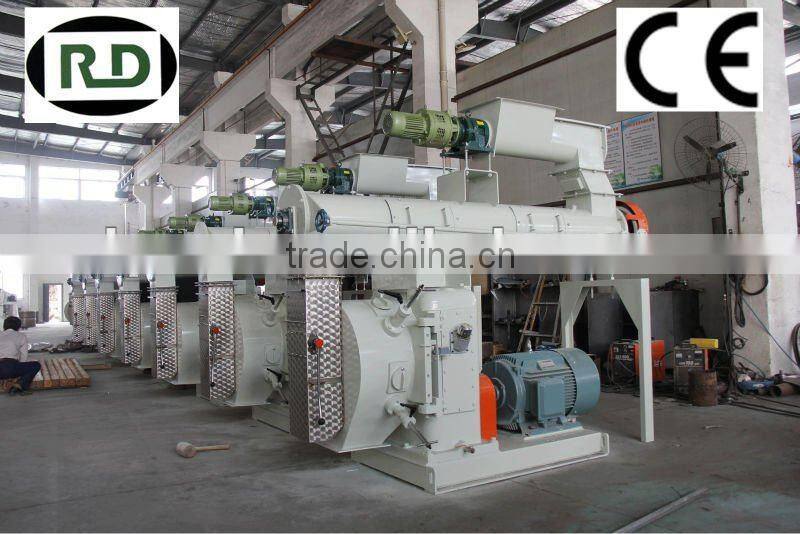

CE/GOST certificate horse feed pellet mill

Specifications

1.Professional production technology
2.ISO 9001:2000; CE, GOST, SGS
3.One year warranty
4.High output

 We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.



The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.





Features



1.Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.

2.The drive part of the machineincluding motoroptimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noice.

3.Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control to guarantee quality pellet feed.

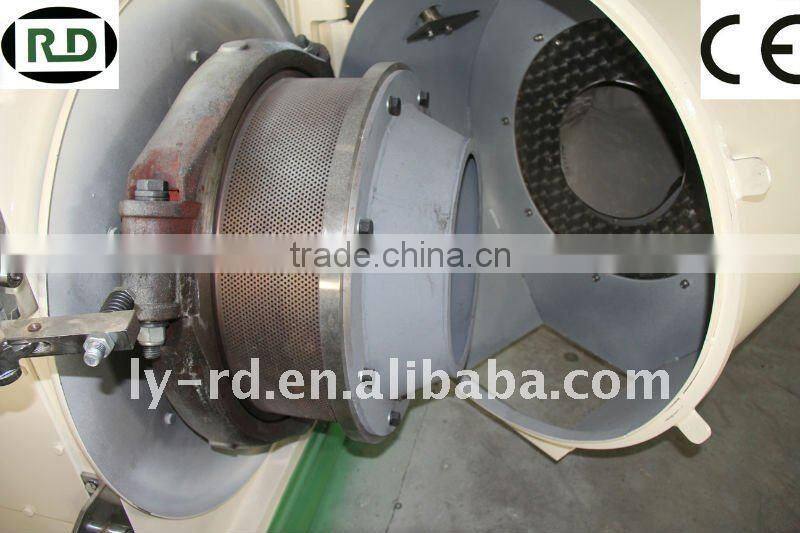

4.The alloy steel die is made by international advanced German gun drill and American vacuum furnace,has long service life and ensure smopthly pelleting and high quality.

5.The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.

6.Permanent magnet device of high performance.

7.Adopt international advaned pipeline system and inlet pressure regulator.

8.If it is used together witk N8 counter flow cooler, 150×2d rotary sifter and advanced fineteeth crumbler,the pellet feed can reach the highest quality.

9.Pellet mill with two or three conditioners can be custom-made to produce high quality poultry,livestock and aquatic feed.



Main Technical Parameters



Model	Capacity(t/h)	Main motor(kw)	Pellet size(mm)	Dia. Of die(mm)
SZLH300	1-4	22/30	2-10	300
SZLH320	2-6	37	2-10	320
SZLH350	3-8	55	2-10	350
SZLH400	5-15	75/90	2-10	400
SZLH420	8-18	90/110	2-10	420
SZLH508	10-20	110/132/160	2-10	508



Liyang Rongda Feed Equipment CO.,LTD. located in Daitou Industrial Zone with 25000 square meters area,Liyang city,Jiangsu province,China.





Goods are made by our factory.









Our certificates:ISO9001:2000,CE,GOST,SGS

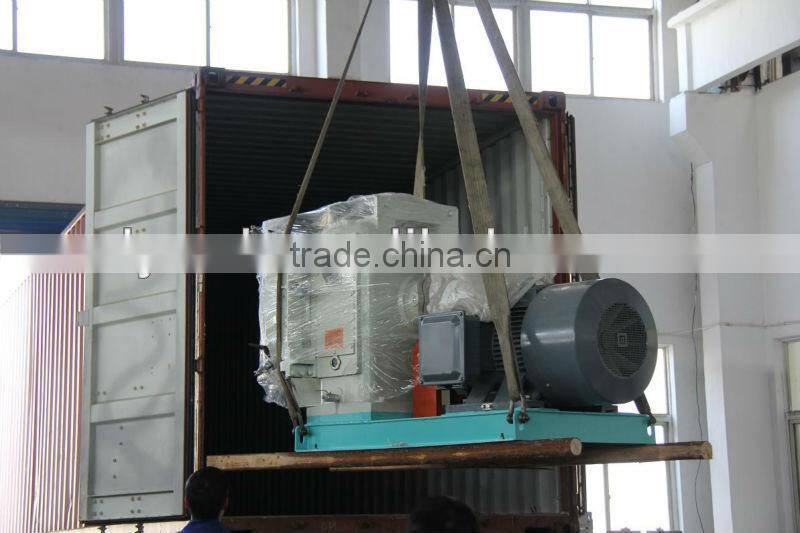

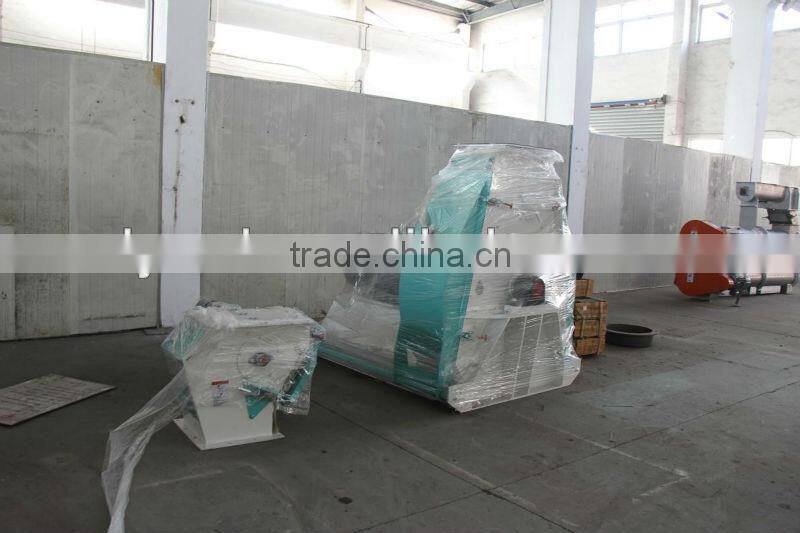

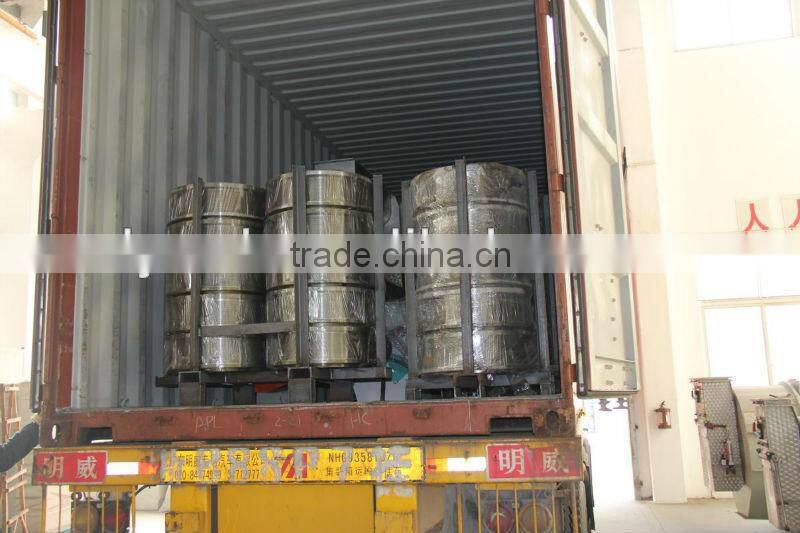

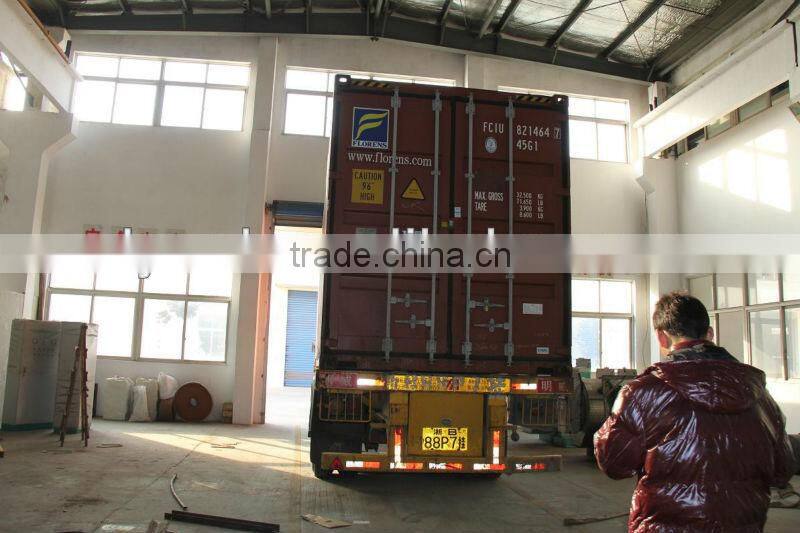

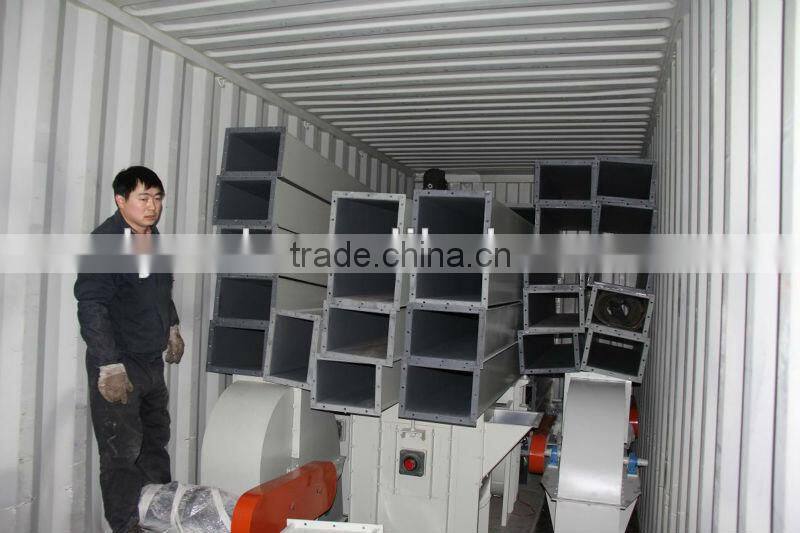

Delivery Management: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
