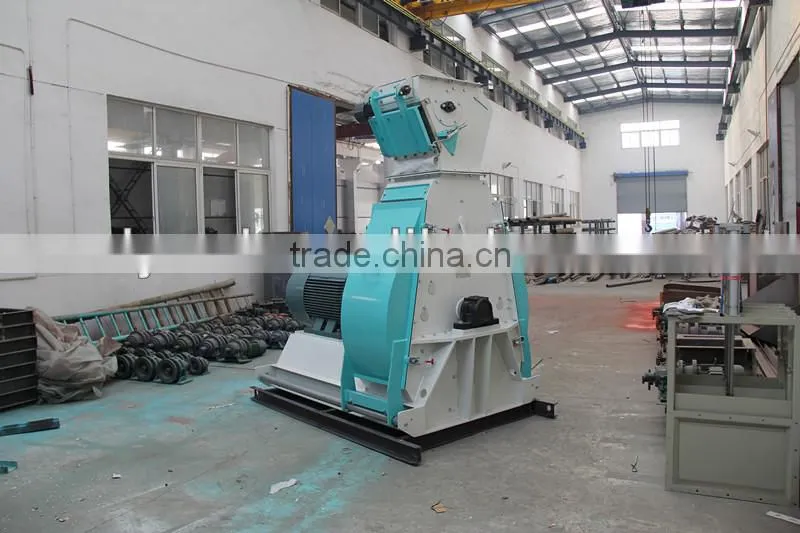

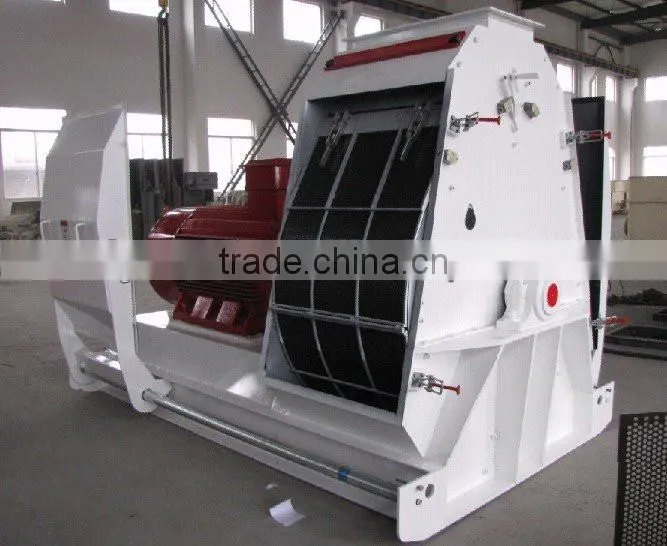

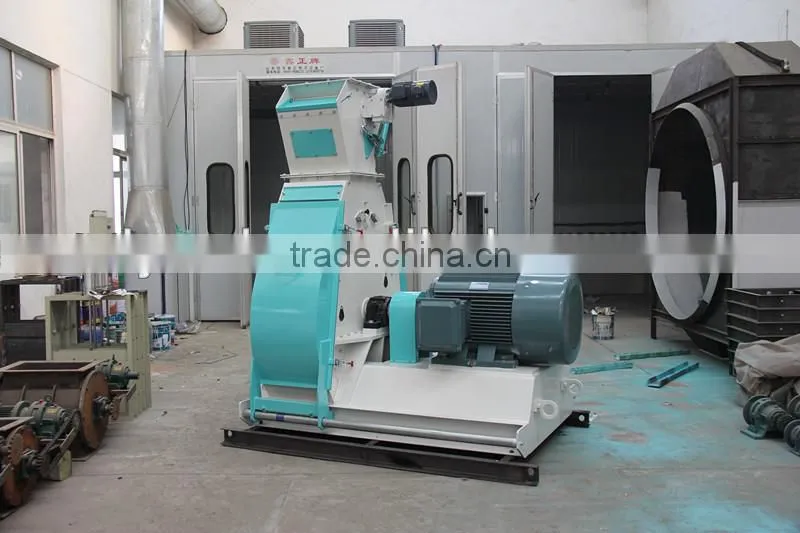

Help CenterSFSP Series Water-drop Hammer Mill
Related Products
Features:
1.Feed with stainless steel automatic cleaning and frequency conversion RT wheel type. Its feature is small in pulse. The strong flat palte magnetic iron equipped with over 3000 high frequency control of motor speed can remove impurity within 10 seconds.
2.The grinding chamber is designed with regrinding, which can increase its output by more than 15% and the sizes are more even.
3.Equipped with wear resistant hammer that is alternate permutation, the finished products are high in accuracy and uniform in size.
4.Vacuun welded hammers and surface hardend hammer pin extend the service life and further decrease the consumption of accessores.
5.By changing the hammer position on the rotor ,two crush of gaps are formed between hammers and screen, which are fit to normal crushing and fien crushing. When in normal crushing, it can crush evenly and improve the production capacity. When the gap between hamme and screen is smaller, it fit to crushing and fine crushing.
6.The rotor is rotatable clockwis and counterclockwise and materials can be fed bidirectionaly, which decreasees the wear of hammers and thus lowers the consumption of accessories. The rotor has experienced dynamic balance test, ensuring less vibration and long service life.
7.There are quick access doors set on both sides of the mill to facilitate maintenance and change of screen, and doors can be locked quickly.
Main technical parameters
|
Model (tear- circle) |
Dia. Of Rotor (mm) |
Width of Grinding Chamber (mm) |
Speed of Rotor (r/min) |
Power (kw) |
Output (t/h) |
Screen Hole (mm) |
SFSP120X40A |
1200 |
400 |
2970 |
55-90 |
8-20 |
Φ 3MM |
SFSP120X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
3MM |
SFSP120X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
3MM |
SFSP120X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
3MM |
SFSP138X40A |
1200 |
400 |
2970 |
55-90 |
8-20 |
3MM |
SFSP138X50A |
1200 |
500 |
1480 |
90-132 |
15-23 |
3MM |
SFSP138X60A |
1200 |
600 |
1480 |
110-160 |
18-30 |
3MM |
SFSP138X80A |
1200 |
800 |
1480 |
160-200 |
25-35 |
3MM |
SFSP138X100A |
1200 |
1000 |
1480 |
200-315 |
30-45 |
3MM |
Tear circle hammer mill
i
Animal feed production line
Production Sequence
1. Receiving and pre-cleaning Process
2. Grinding Process
3. Proportioning and mixing process
4. Pelleting Process
5. Sifting and cooling Process
6. Bagging Process
Company introduce
Liyang City Rongda feed Equipment Co., Ltd., was established in January 2005, is located in the superiorinvestment environment in Tai Tau Industrial Area,covering over 25,000 m2, building area of more than 13,000 square meters, office building covers an area of?more than 500 square meters.
The Rongda company is the one for many yearsspecialized in biomass.....
Certificate
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
