Specifications
GX Series Feed Screw Conveyor:1.ISO9001:2000
2.Delivery time:10-20days
3.Wide application
4.Perfect after sale service

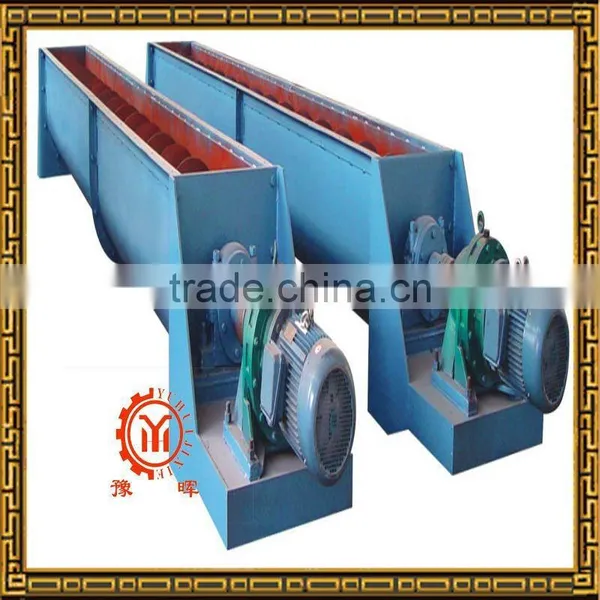

GX Series Feed Screw Conveyor
1. Features:
Structure is simple , operation safety is convenient, the upkeep is not very complicated, the cross section external form the dimension is not big , easy to carry out load-off on some location, confinement machine shell cover may reach fairly good hermetic sealing.
2. working principle:
LS spiral conveyer type is rotating screw conveying materials will be fixed on the cabinet inside and conveying, head and tail bearing work moved outside shell adopts sliding bearings, bearing with dust and sealing device, usually adopts the powder metallurgy bearing, cement, shaft bearing using wool and screw axis adopt slide block connection.
3. Application fields:
The machine may be used for branches such as chemical industry , building material , machinery , coal , metallurgy , light industry , grain , medicine , traffic , water and electricity broadly, Being used to transport all kinds of form of powder and small piece material. Be inadvisable to transport the big viscidity packing material or large piece of material easy to go bad.
4. Main technical data:
GX200 |
GX250 |
GX315 |
GX400 |
GX500 |
|||||
|
Speed r / min |
throughput m³ / h |
Speed r / min |
throughput m³ / h |
Speed r / min |
throughput m³ / h |
Speed r / min |
throughput m³ / h |
Speed r / min |
throughput m³ / h |
45 |
5.6 |
45 |
11 |
35 |
17 |
35 |
31.7 |
30 |
46.5 |
60 |
7.4 |
60 |
15 |
45 |
21.8 |
45 |
39.6 |
35 |
54.3 |
75 |
9.3 |
75 |
18 |
60 |
29.1 |
60 |
52.9 |
45 |
69.8 |
90 |
11 |
90 |
22 |
75 |
36.4 |
75 |
66.1 |
60 |
93.1 |
YuHui Mining machinery Co., Ltd. owns 20-year experience. Products are sold home and abroad. Our fine service has been accepted by our foreign customers. Welcome new and old customers to visit and negotiate.
