Specifications
widely used rotary kiln furnace with CE1.strong structure
2.smooth operation
3.high quality products
4.ISO&CE certificate

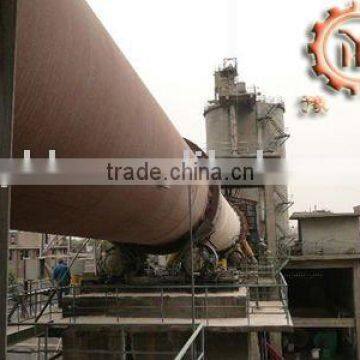

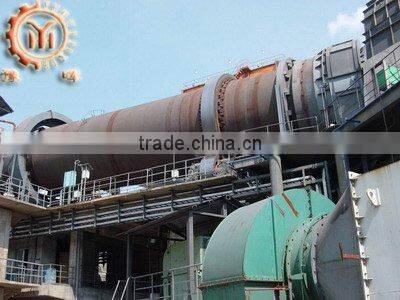

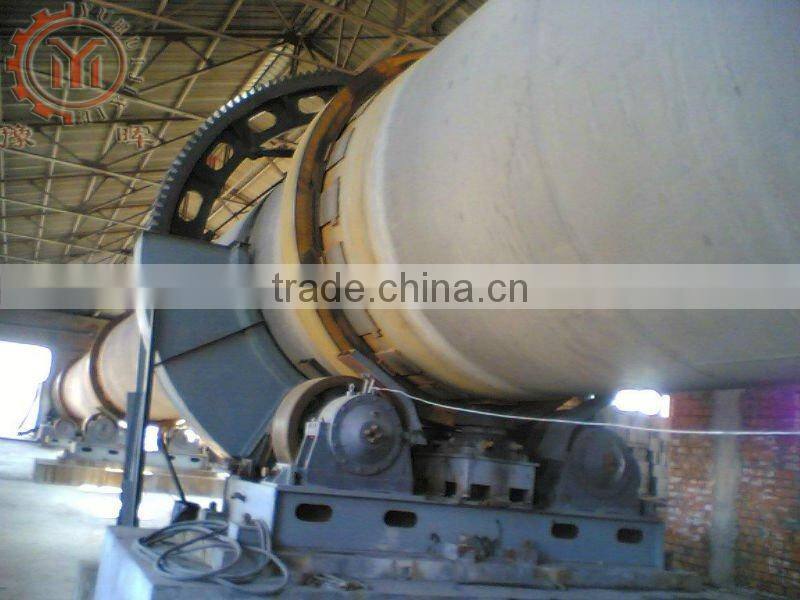

widely used rotary kiln furnace with CE
The rotary kiln has simple structure, convenient and reliable control during the production process, few wearing parts and high operation ratio. It is used for calcinating high standard cement in cement factories, but also widely used in metallurgy, construction and chemical industry. The rotary kiln produced by our factory has strong structure, smooth operation, high quality products. Besides, we provide our customers with advanced and efficient shaft preheater and five stage cyclone preheater.
Rotary kiln main technical parameters:
Specification | Capacity(t/d) | Kiln obliquity (%) | Bearing quantity | Kiln rotation speed(r/min) | Main driving (r/min) | ||||||
Motor | Reductor | ||||||||||
Main driving | Auxiliary driving | Type | Rated power (KW) | Speed adjustment range (r/min) | Rated voltage (v) | Type | Speed ratio | ||||
Φ2.5×40 | 180 | 3.5 | 3 | 0.98-2.94 | 0.036 | YCT315-4B | 45 | 132-1320 | 380 | ZS145-1-I | 49.63 |
Φ2.5×60 | 168 | 3.5 | 4 | 0.516-1.549 | 0.036 | YCT355-4B | 75 | 440-1320 | 380 | ZS165-7-II | 99.96 |
Φ3×48 | 700 | 3.5 | 3 | 0.726-3.63 | 0.1375 | ZSN4-280-091B | 110 | 200-1000 | 440 | ZSY450-35-V | 30.794 |
Φ3×60 |
| 3.5 | 4 | 0.492-1.476 | 0.034 | YCT355-4B | 75 | 440-1320 | 380 | ZL165-7-I | 99.96 |
Φ3×100.94 | 450 | 4 | 4 | 0.3-1.503 | 0.275 | ZSN4-250-21B | 90 | 100-1000 | 440 | NZS995-90-VI-L | 90 |
Φ3.2×46 | 1000 | 3.5 | 3 | 0.36-3.57 | 0.108 | ZSN4-280-091B | 160 | 100-1000 | 440 | NZS995-40VIBR | 40 |
Φ3.2×52 | 1200 | 3.5 | 3 | 0.343-2.34 | 0.102 | ZSN4-280-21B | 125 | 100-1000 | 440 | ZSY1110-71BLVI | 71.54 |
Φ3.3×50 | 1300 | 3.5 | 3 | 0.676-3.38 | 0.106 | ZSN4-280-091B | 160 | 200-1000 | 440 | NZS1110-40VI | 40 |
Φ3.3×52 | 1300 | 3.5 | 3 | 0.266-2.66 | 0.0838 | ZSN4-280-11B | 125 | 100-1000 | 440 | NZS995-40VIBR | 40 |
Φ3.5×54 | 1500 | 3.5 | 3 | 0.55-3.4 | 0.105 | ZSN4-315-092 | 220 | 100-1000 | 440 | ZSY500-40-V | 40 |
Φ3.6×70 | 1800 | 3.5 | 4 | 0.25-1.25 | 0.039 | ZSN-280-11B | 125 | 200-1000 | 440 | ZS177-5-II | 40 |
Φ4×60 | 2500 | 3.5 | 3 | 0.396-3.96 | 0.14 | ZSN-355-092 | 315 | 100-1000 |
| ZSY630-35.5-I | 40379.24.601 |
Φ4.15×58 |
| 5 | 3 | 0.35-0.7 | 0.05 | Y315S-4 | 110 | Frequency conversion |
|
|
|
Φ4.2×60 | 3000 | 4 | 3 | 0.4-3.98 | 0.142 | ZSN4-355-12 | 375 | 100-1000 |
| ZSY710-40-I | 40 |
Φ4.3×60 | 3500 | 3.5 | 3 | 0.396-3.96 | 0.142 | ZSN4-355-12 | 375 | 100-1000 | 440 | ZSY710-40 | 40 |
Φ4.5×66 | 4000 | 3.5 | 3 | 0.41-4.1 | 0.14 | ZSN4-400-22 | 560 | 100-1000 | 660 | JH800C-SW306 | 35.5 |
Φ4.8×74 | 5000 | 4 | 4 | 0.396-3.96 | 0.12 | ZSN4-400-092 | 630 | 1500 | 660 | JH710-40 | 42 |
