Specifications
rotary dryer for drying slurry:1.reasonable design and structure
2.High capacity
3.Low consumption
4.Fine workmanship

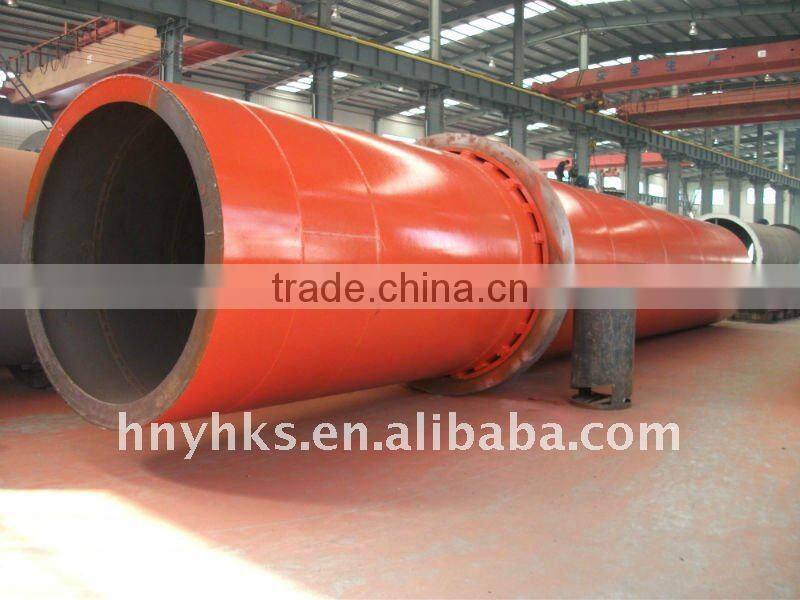

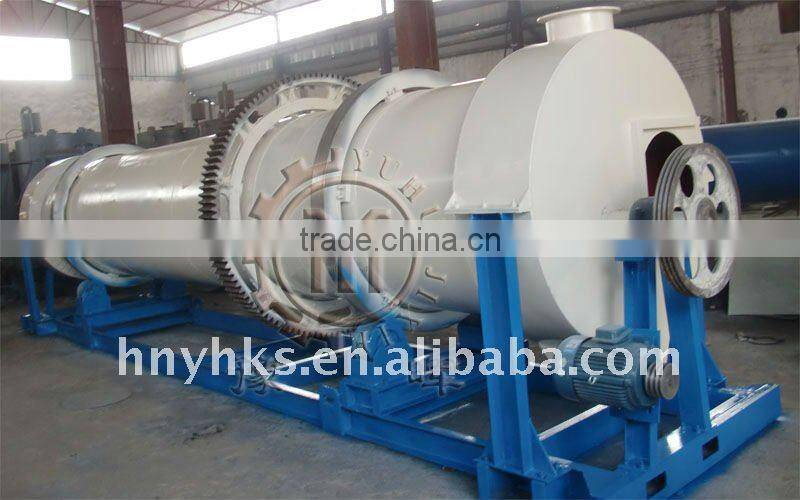

YuHui Brand rotary dryer for drying slurry
I. Brief introduction of rotary drier:
Rotary Drier mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc
II. The application of rotary drier:
Rotary Drier is used to dry slag, clay, limestone it is mainly used for cement, chemical, metallurgical, building materials industries. Rotary Drier is used for drying materials with a certain humidity or granularity in milling of ores, building materials, metallurgy and chemical industry. Rotary Drier has a strong adaptability of materials and it can dry various materials, the operation is very simple and liable.
III. Working principle of rotary drier:
The raw material plate which is arranged reasonably with changeable angles in order ,throws moisture materials into the rotary cylinder, then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere ,then the materials would be dried.
IV. Export country of the rotary drier:
India, Vietnam, Mongolia, Iran, Pakistan, the Southeast Asia, the Middle East, the Africa and other countries and areas.
V. Main technical parameters:
Specifications(m) | Capacity(t/h) | Motor | Reductor | Weight(t) | ||
Model | Power(KW) | Model | Speed ratio | |||
Φ1×10m | 1.0-3.5 | Y132M2-6 | 5.5 | ZL350-II-25 |
| 7.5 |
Φ1.2×10 m | 2.5 | Y160M-6 | 7.5 | ZL50-16-1 |
| 13.5 |
Φ1.5×12 m | 3.3-4.9 | 180L-6 | 15 | JZQ500-III-2F |
| 18.9 |
Φ1.5×15 m | 4-6 | Y200L-6 | 18.5 | JZQ650-III-2F |
| 21 |
Φ1.8×12 m | 4-6 | Y160L-6 | 18.5 | ZQ50-16II-2 | 16.46 | 22.83 |
Φ2.2×12 m | 7-12 | Y200L-6 | 22 | JZQ650-III | 31.5 | 37.6 |
Φ2.2×14 m | 7-12 | Y200L-6 | 22 | JZQ650-III | 31.5 | 40 |
Φ2.2×16 m | 12 | Y225M-6 | 22 | JZQ650-III | 31.5 | 45 |
Φ2.4×14 m | 12 | Y250M-6 | 37 |
|
| 51 |
Φ2.4×18 m | 10-13 | Y250M-6 | 37 | ZL85-13-1 | 27.16 | 54 |
Φ2.4×20 m | 10-14 | Y250M-6 | 37 | ZL85-13-1 | 27.16 | 54.14 |
Φ3×20 m | 25 | Y280M-6 | 55 | ZL100-16-1 | 41.52 | 78 |
Φ3×25 m | 32-36 | YR280M-4 | 75 | ZL100-16-1 | 41.52 | 104.9 |
Yuhui Mining Mchinery Co.,Ltd has over 20 years experience at sand making production line and ore dressing equipment, our products has past ISO 9001:2000 quality certification. you can see our certificates below. sincerely wish you send enquiry and negotiate with us. Thank you.
