Specifications
pan granulation machine1Granulation evenly
2high rate of granule-becoming
3stable operation
4durable and firm equipmt

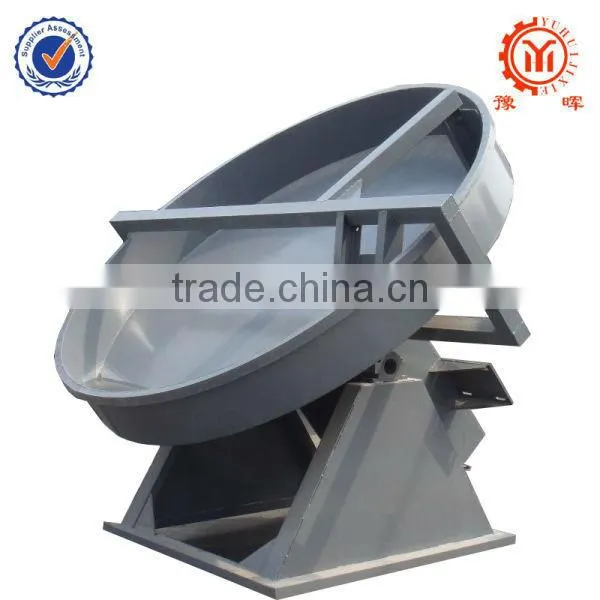

pan granulation machine
Introduction of granulating disc:
Granulating disc is a main equipment which makes powder into ball shape, widely applied in cement industry, iron and steel industry and chemical fertilizer industry. It features uniform ball, easily water controlling, high strength, simple structure, low energy consumption, stable operation, etc.
Application of granulating disc:
Granulating Disc is the main equipment to make the powder form material into ball, mainly used in the cement industry, steel industry and compounded fertilize industry it has the many advantages such as: ball as even, easy control water in ball, high ball strength, and the structre is simple, conveniently control, little energy depletion, revolve steady etc.
Working Principle:
The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer. The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge. It has the advantages of high granulating rate, homogeneous grain, high strength, easy to operate, convenient maintenance
Main technical parameters
Type (m) |
Speed the check(r/min) |
Production scopes (t/h) |
Power (kw) |
Adjustable scope (o) |
Weight (t) |
Φ2.2 |
14.25 |
4-8 |
Y7.5 |
35-55 |
2.85 |
Φ2.5 |
11.81 |
5-10 |
Y7.5 |
35-55 |
3.25 |
Φ2.8 |
11.21 |
12-16 |
Y7.5 |
35-55 |
3.71 |
Φ3.0 |
11.3 |
15-18 |
Y11 |
35-55 |
4.35 |
Φ3.2 |
9.6 |
15-20 |
Y11 |
35-55 |
5.11 |
Φ3.6 |
9.1 |
18-24 |
Y15 |
35-55 |
6.51 |
About us:
Henan Yuhui Mining Machinery Co., Ltd. is a enterprise that mainly produces large and medium sized beneficiation gravel equipment, crushers, sand making machines and Raymond ball mills. The leading products include the whole set of mine-selecting equipment and sandstone equipment, such as ball mills, crushers, magnetic separators, flotation machines, classifiers, driers, sand-makers, oscillating screens, sand washers and conveyors.Our products are sold all over the world such as Indonesia, Pakistan Saudi Arabia, India, Russia, Vietnam, Iran…we have earned a worldwide fame.
